- mpnP6-14R-T
- brandname: Panduit Corp
- manufacturername: Panduit Corp

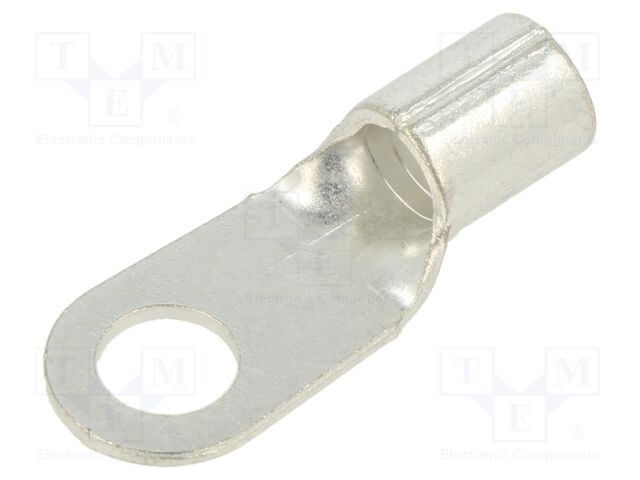

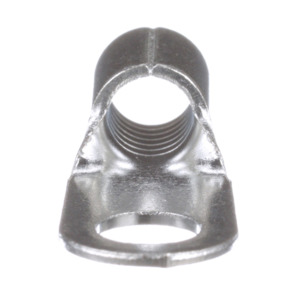

Panduit P6-14R-T Ring Terminal, Large Wire, 6 AWG, 1/4-Inch Stud Size, Non-Insulated (200-Pack)
- Brand: Panduit
- PartNumber: P6-14R-T
- Model: P6-14R-T
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 6 |
| Approval | Approval |
| Approvals | CSA, UL |
| AWG Range | #6 |
| Barrel Inside Diameter | 0.23 in |
| Barrel Outside Diameter | 0.23 in |
| Barrel Size | Standard |
| Barrel Style | Serrated Barrel |
| Base Product Number | P6-14 |
| Brand | Pan-Term? |
| Category | Connectors, Interconnec. |
| Color | - |
| Color Family | Metallic |
| Compatible Grainger Par. | 376T59 |
| Compatible Manufacturer. | CT-1701, CT-2600 |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact material | copper alloy |
| Contact Material | Copper |
| Contact plating | tinned |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| ECCN | EAR99 |
| Electrical mounting | crimped |
| Family Series | Panduit Terminals, Pan-. |
| Features | Brazed Seam |
| Ferrule variant | non-insulated |
| Finish | Tin-Plated |
| For Wire Size | 6 AWG |
| For Wire Sizes | 6 AWG to 6 AWG |
| Green Environmental Att. | Does Not Contain PVC |
| Gross Weight | 0 lbs |
| Hole Diameter | 0.27 in |
| Hole for screw | M6 |
| Insulated | non-insulated |
| Insulation | non-insulated, Insulati. |
| Insulation Color | Bare, Insulation Color |
| Insulation Coverage | None |
| Insulation Diameter | - |
| Insulation Material | None |
| Insulation Type | non-insulated |
| Item | Ring Terminal |
| Item Number | P6-14R-T |
| Lead Free Status / RoHS. | RoHS Compliant |
| Length - Overall | 1.210" (30.73mm) |
| Manufacturer | PANDUIT |
| Manufacturer Part Number | P6-14R-T |
| Manufacturer Standard L. | 4 Weeks |
| Material | Copper |
| Material - Insulation | - |
| Max Temp | 302 ?F |
| Max. Temp. | 302 Degrees F |
| Max. Voltage | 2,000 V |
| Maximum Operating Tempe. | 302 Degrees F |
| Maximum Voltage | 2,000 V |
| Maximum Wire Size | 6 AWG |
| Mechanical mounting | for cable |
| Mfr | Panduit Corp |
| Minimum Operating Tempe. | 302 Degrees F |
| Minimum Wire Size | 6 AWG |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Outer Diameter | 0.32 in. |
| Overall Length | 1.21 in |
| Package | Bulk |
| Package Quantity | 200 |
| Packaging | Bulk Pack, 200 Per Box |
| Plating Material | Tin |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| Rated Voltage | 2000V |
| Ring inside diameter | 6.9mm |
| Ring Width Ranges | 0.26 - 0.50 inches |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Series | Pan-Term?, Pan-Term P6 . |
| Special Features | Ring Tongue Design Assu. |
| Standard Package | 200 |
| Standards | CSA C22.2 No. 65, UL486. |
| Strip Length | 1/2 in |
| Stud Size | Stud Size, 1/4 in, 1/4 . |
| Stud/Tab Size | 1/4 Stud |
| Temperature Rating | Temperature Rating |
| Terminal Connection | Crimp |
| Terminal Material | Copper |
| Terminal Shape | Ring Terminal |
| Terminal Type | ring, Terminal Type, Ci. |
| Termination | Crimp |
| Termination Style | Crimp |
| Thickness | 0.045" (1.14mm) |
| Tongue Thickness | 0.05 in |
| Tongue Width | 0.47 in |
| Tongue Width - Wire Con. | 0.47 in |
| Type of tip | ring |
| UL Standards | UL 486A-486B |
| UNSPSC | 39121409 |
| UPC Code | 074983870738 |
| UPC ID | UPC ID |
| Use With | CT-1701, CT-2600 (CD-26. |
| Volts | 2,000 V |
| Width | 0.47 in. |
| Width - Outer Edges | 0.470" (11.94mm) |
| Wire Gauge | 6 AWG |
| Wire Range | 6 AWG, Wire Range |
| Wire size | 6AWG |
| Wire Size | 6 AWG |
| Wire Size (AWG) | 6 AWG |
| Wire Strip Length | 0.438 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | P6-14R-T | 0.6 | 1 | 1000 | | PANDUIT | | 0.6 @ 1 |
 | TME | P6-14R-T | 0.62 | 2 | 200 | | PANDUIT | | 0.62 @ 2 |
| iodParts | P6-14R-T | 0.675 | 400 | 3200 | | Panduit | | 0.675 @ 400 |
 | mecampbell.com | PANP6-14R-T | 0.81 | 200 | 123 | 151 | Panduit | | 0.81 @ 200 |
| Hotenda | H1657243 | 0.83 | 1 | 123 | | Panduit | | 0.83 @ 1 |
 | Galco | P6-14R-T-PNDT | 0.86 | 200 | 123 | | Panduit | | 0.86 @ 200 |
 | Newark | 14AC0875 | 0.978 | 200 | 123 | | PANDUIT | | 0.978 @ 100 |
 | Platt.com | 0219591 | 1.01 | 1 | 189 | | Panduit | | 1.01 @ 1 |
| Airline Hydraulics | PANDUIT P6-14R-T | 1.03 | 1 | 123 | | Panduit Corp | | 1.03 @ 1 |
| us.rs-online.com | 70226854 | 1.1 | 1 | 123 | | Panduit | | 1.1 @ 1 |
| Digi-Key | 450256 | 1.21 | 1 | 1245 | | Panduit Corp | | 1.21 @ 1 |
 | Component Electronics | 516N-1/4F | 1.23 | 1 | 200 | | Panduit Corp | | 1.23 @ 1 |
 | alldataresource.com | PAN-P6-14R-T | 159.46 | 1 | 123 | | Panduit | | 159.46 @ 1 |
 | Zoro | G0287561 | 169.79 | 1 | 19 | | Panduit | 1.8 | 169.79 @ 1 |
 | gordonelectricsupply.com | P6-14R-T | 181.0 | 1 | 123 | 12 | PANDUIT | | 181.0 @ 1 |
 | jensentools.com | 10016745 | 190.38 | 1 | 2 | | Panduit | | 190.38 @ 1 |
 | Raptor Supplies | AH8XZZ | 336.7581165 | 1 | 123 | | PANDUIT | | 336.7581165 @ 1 |
 | turtle.com | PAN P6-14R-T | 1010.02 | 1 | 123 | | Panduit | | 1010.02 @ 1 |
| Graybar | 88198574 | 1119.44 | 200 | 123 | | Panduit | | 1119.44 @ 200 |
