PARKER 0.88DXPSR04.00

mpn0.88DXPSR04.00
brandname: Parker
manufacturername: Parker

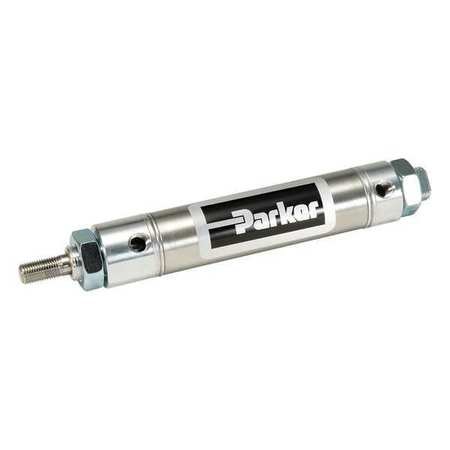

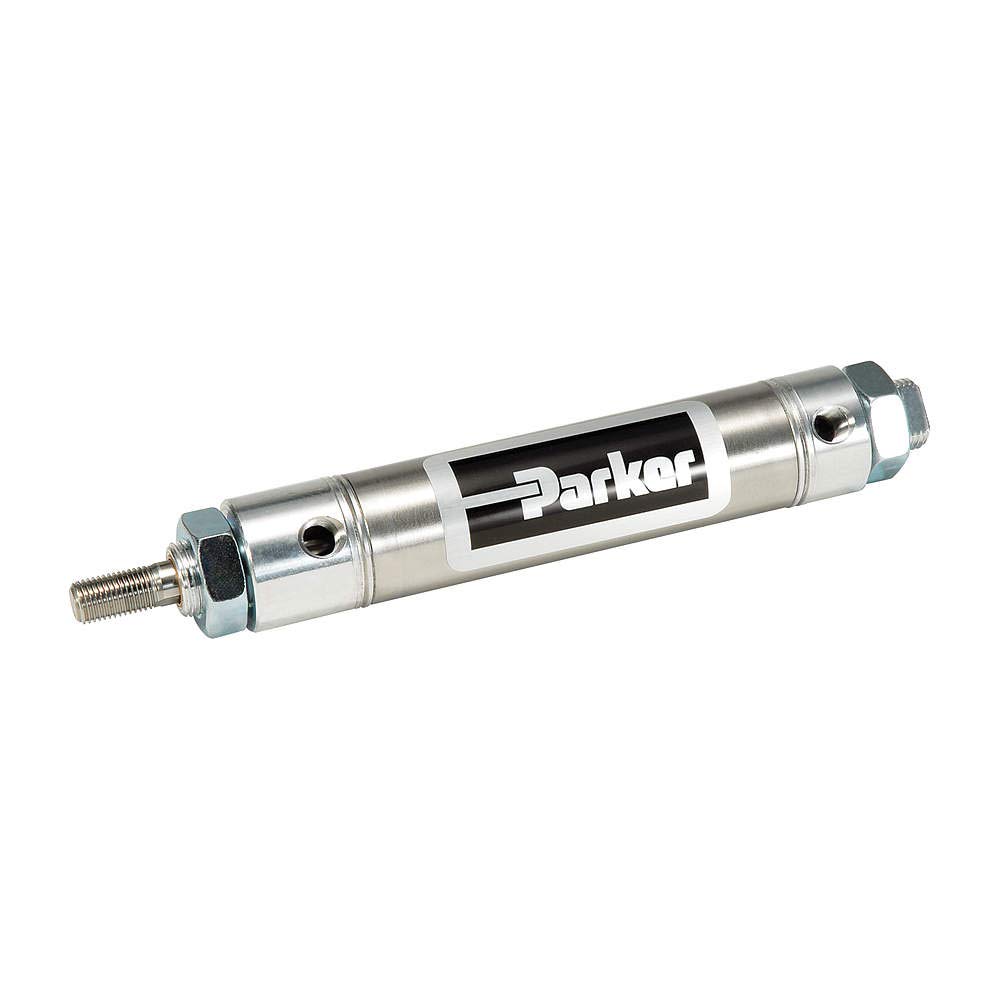

Round Air Cylin, 7/8InBore, 4InStroke

Round Air Cylin, 7/8InBore, 4InStroke

zoom

Brand: PARKER
PartNumber: 0.88DXPSR04.00
PackageQuantity: 1
Binding: Misc.
Manufacturer: PARKER
Label: PARKER

Attributes

Key	Value
Air Cylinder Bore Dia.	7/8 in
Air Cylinder Mount	Nose and Pivot
Air Cylinder Type	Round Body
Body Material	Stainless steel
Bore Dia.	7/8 in
Country of Origin (subj.	United States
Cushion Type	None
Cylinder Action	Double Acting
Cylinder Type	Round Non-Repairable, N.
Dimension A	1/2 in
Dimension B	0.624 in
Dimension Cb	0.38 in
Dimension Cc	0.25 in
Dimension Cd	0.25 in
Dimension E	0.38 in
Dimension Kk	1/4"-28 UNF
Dimension L	0.34 in
Dimension N1	5/8"-18
End Cap Material	Aluminum
Features	Non-Switch Ready
Finish	Silver
Item	Air Cylinder
Magnetic Piston	No
Max. Pressure	250 psi
Maximum Stroke	4 inch
Mount	Nose and Pivot
Nose Mount Thread	5/8"-18
Overall Length	8.3 in
Piston Material	Aluminum
Piston Rod Material	Stainless steel
Pivot Hole Dia.	0.251 in
Port Size	1/8 in FNPT
Rod Dia.	0.25 in
Rod End Style	Standard Rod End (Male)
Rod Thread Length	0.5 in
Rod Thread Size	1/4-28 UNF
Single Acting/Double Ac.	Double Acting
Stroke	4 in
Temp. Range	-10 Degrees to 165 Deg.
Tube Material	Stainless steel
UOM	EACH

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G6147005	42.59	1	In Stock		Parker	0.42	42.59 @ 1
	AmazonSC	B01M0T2ZS9	44.63	1	In Stock		Parker		44.63 @ 1
	Wilson	0.88DXPSR04.00	45.46	1	In Stock		Parker - Pneumatic Division		45.46 @ 1
	sustainablesupply.com	C1685255	46.61	1	In Stock		Parker	0.42	46.61 @ 1
	Raptor Supplies	AJ2EDW	90.013716	1	In Stock		PARKER		90.013716 @ 1
