Ruland MWC20-5-4-SS

B0060M41BG

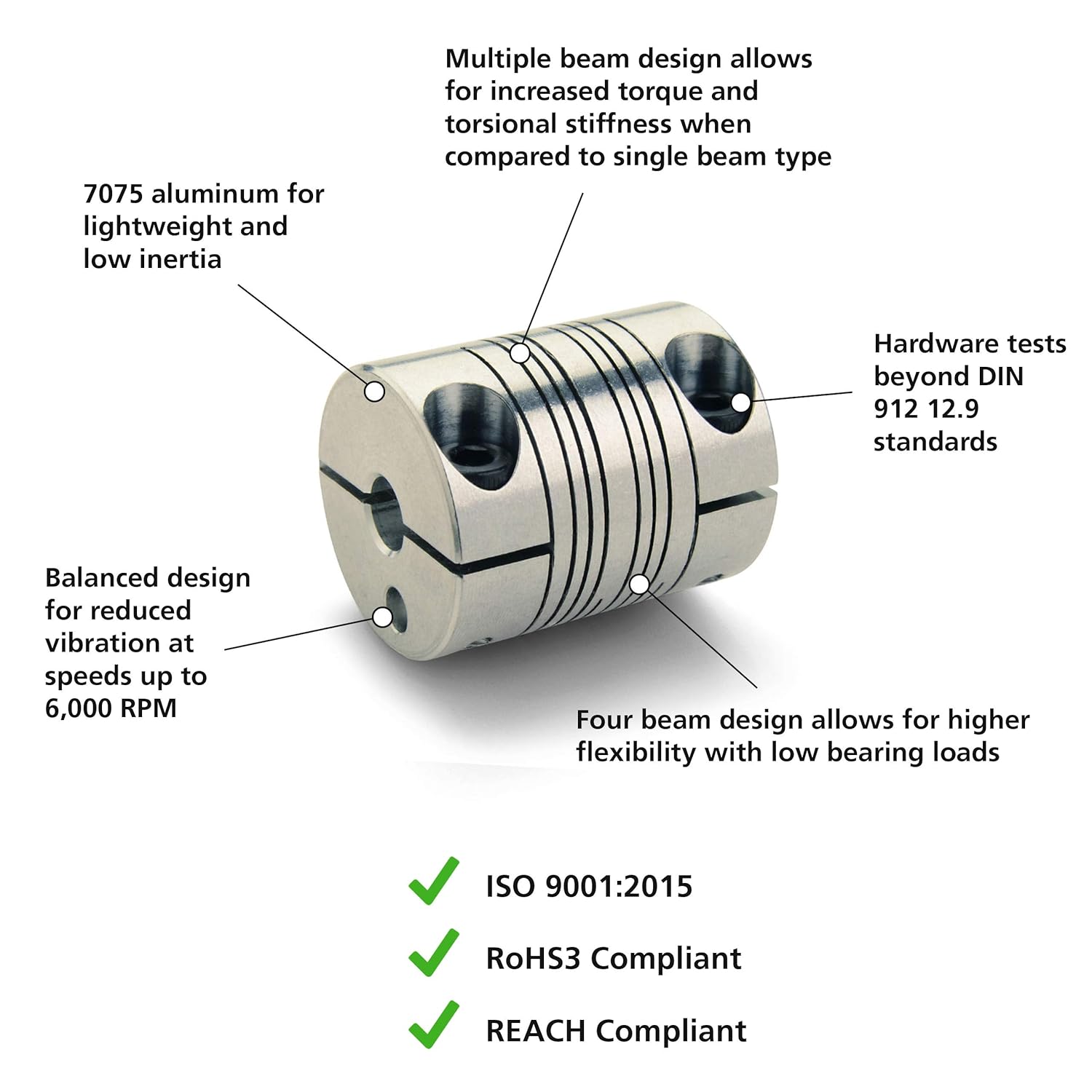

Ruland MWC20-5-4-SS Clamping Beam Coupling, Stainless Steel, Metric, 5mm Bore A Diameter, 4mm Bore B Diameter, 20mm OD, 28mm Length, 1.30 Nm Nominal Torque

Ruland MWC20-5-4-SS Clamping Beam Coupling, Stainless Steel, Metric, 5mm Bore A Diameter, 4mm Bore B Diameter, 20mm OD, 28mm Length, 1.30 Nm Nominal Torquezoom

Attributes

Key Value
Angular Misalignment3.0?
Axial Motion0.12 mm
B1 Max Shaft Penetration13.6 mm
B2 Max Shaft Penetration13.6 mm
Balanced DesignYes
Base Product NumberMWC20
Bore (B1)5 mm
Bore Dia.5mm x 4mm
Bore Tolerance+0.025 mm / -0.000 mm
Cap ScrewM3
Catalog PageN/A
CategoryHardware, Fasteners, Ac.
Clearance Dia. (In.)0.984 in
Clearance Dia. (mm)25
Country of OriginUSA
Country of Origin (subj.United States
Dynamic Torque Non-Reve.1.00 Nm
Dynamic Torque Reversing0.50 Nm
FinishBright
Finish SpecificationBright, No Plating
Full Bearing Support Re.Yes
Hex Wrench Size2.5 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Item?30UX66
Length (L)28.0 mm
Length through Bore13.34 mm
Length through Bore (In.0.525
Length through Bore (mm)13.34
ManufacturerRuland Manufacturing
MaterialStainless Steel
Material - CouplingsStainless Steel
Material SpecificationType 303 Austenitic, No.
Max. Angular Misalignme.3 Degrees, 3 ?
Max. Axial Misalignment.+/-0.005
Max. Bore (mm)5 mm
Max. Parallel Misalignm.0.008 in
Max. RPM6,000 RPM
Max. Temp.350 ?F, 350 Degrees F
Max. Temp. Range (F)350 Degrees
Maximum Speed6,000 RPM
MfrRuland Manufacturing
Mfr. Model?MWC20-5-4-SS
Min. Bore (mm)4
Moment of Inertia2.984 x10
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
Number of Screws2 ea
Outer Diameter (OD)20.0 mm
Outside Dia.20 mm
Outside Dia. (In.)0.787
Outside Dia. (mm)20
Overall Length28 mm
Overall Length (In.)1.102
Overall Length (mm)28
PackageBag
Parallel Misalignment0.20 mm
Product StatusActive
Rated Torque18 in-lb
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM3
Screw Size (mm)M3
Screw TypeCap Screw
Seating Torque2.1 Nm
Series-
Shaft Locking Type - Co.1 Piece Clamp
SizeMWC20
Small Bore (B2)4 mm
Specifications0.787" (20.00mm) Outer .
Static Torque2.00 Nm
Style4-Beam Clamp
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
Torque (In.-Lbs.)18
Torsional Stiffness0.98 Deg/Nm
Torsional Stiffness (De.0.111
TypeBeam Coupling
UNSPC31163003
UNSPSC31163003
UPC634529055144
Weight (lbs)0.117400
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG8119273101.01In Stock10Ruland0.1101.0 @ 1
thumbzoomAmazonB0060M41BG120.291In StockRuland120.29 @ 1
thumbzoomRulandMWC20-5-4-SS124.951In StockRuland0.1174124.95 @ 1
Grainger30UX66141.491In StockRULAND MANUFACTURING141.49 @ 1
thumbzoomsustainablesupply.comC1645204160.311In StockRuland Manufacturing0.1160.31 @ 1
AmazonTPB0060M41BG163.381In Stock5Ruland Manufacturing163.38 @ 1
Digi-Key13608850169.74110Ruland Manufacturing169.74 @ 1
thumbzoomRaptor SuppliesAF9VAV211.1121091In StockRULAND MANUFACTURING211.112109 @ 1
