- mpn52PP2H3AB
- brandname: Siemens
- manufacturername: Siemens

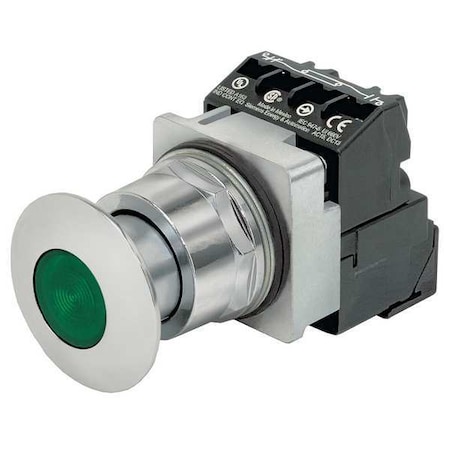

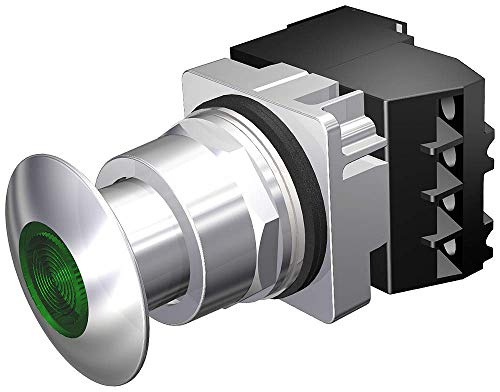

Siemens 52PP2H3AB Heavy Duty Illuminated Push-Pull Unit, 30mm, Green, 1-3/4" Metal Mushroom Head, 2 Position Maintained, 1NO+1NC Contact, 240V AC Transformer, LED Bulb, Chrome, Watertight/Oiltight
- Brand: SIEMENS
- PartNumber: 52PP2H3AB
- Model: US2:52PP2H3AB
- Color: Green
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Siemens
- Label: Siemens
Attributes
| Key | Value |
|---|
| Action | Maintained Pull / Maint. |
| Actuator Type | Round, Button, Mushroom |
| Basic Material | Metal |
| Bezel | Chrome Plated Zinc Die . |
| Category | Switches, Push Button S. |
| Circuit | DPST-NO/NC |
| Color | Green |
| Color - Actuator/Cap | Green |
| Color / of the light so. | Green |
| Contact Form | 1NO/1NC |
| Contact Rating | 10A @ 600V AC |
| Contact Type | 1NO/1NC |
| Country of Origin | MX |
| Current Rating (Amps) | 60A (AC) |
| Description | PP2,MTD,XFMR 240V,CHR-G. |
| Design of the front rin. | standard |
| Detailed Description | Pushbutton Switch DPST-. |
| Digi-Key Part Number | 3473-52PP2H3AB-ND |
| Electrical Life | - |
| Estimated Weight | 1.00 |
| Features | - |
| Head Material | Chrome |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (N. | 240 VAC |
| Ingress Protection | IP66 - Dust Tight, Wate. |
| Item | Illuminated Push Button |
| Lamp Module Type | Transformer |
| Lamp Module Voltage | 240V AC |
| Lamp Type | Led |
| Lamp Voltage | 6V AC |
| Manufacturer | Siemens Industry, Inc.,. |
| Manufacturer Product Nu. | 52PP2H3AB |
| Manufacturer Standard L. | 3 Weeks |
| Material / of the front. | Metal |
| Mechanical Life | - |
| Mfr | Siemens |
| Mounting Type | Panel Mount, Front |
| NEMA Contact Rating Des. | A600/P600 |
| NEMA Rating | 1, 12, 13, 3, 3R, 4, 4X |
| Number of Operators | 1 |
| Operating Temperature | -35?C ~ 70?C |
| Package | Box |
| Package Quantity | 1 |
| Panel Cutout Dimensions | Circular - 30.00mm Dia |
| Part Number | 52PP2H3AB |
| Product extension / opt. | Yes |
| Product Status | Active |
| Product Type | Illuminated Push Button |
| Replacement Lamp | Mfr. No. 52AEB3 |
| Series | - |
| Size | 30 mm |
| Standards | CSA, UL |
| Supply voltage / 1 / of. | 6 V |
| Switch Function | On-Off, Off-On |
| Terminal Connection | Pressure Plate |
| Termination Style | Screw Terminal |
| Type | Standard, Illuminated |
| Type of electrical conn. | screw-typeterminals |
| Type of Operator | 44mm Mushroom Head |
| Type of unlocking devic. | pull-to-unlatchmechanism |
| Type of voltage / of th. | AC |
| Type of voltage / of th. | AC |
| Type of voltage / of th. | AC |
| UNSPSC | 39122216 |
| UPC | 662643877090 |
| Voltage | 240V AC |
| Voltage Rating - AC | 110 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | industrialzone.com | 52PP2H3AB | 124.56 | 2 | In Stock | | Siemens | 2.0 | 124.56 @ 2 |
 | motorsandcontrol.com | 52PP2H3AB | 156.35 | 1 | In Stock | | Siemens | 1.0 | 156.35 @ 1 |
| AmazonTP | B01LXYEEJK | 157.08 | 1 | In Stock | 5 | Siemens | | 157.08 @ 1 |
 | Zoro | G2982010 | 160.99 | 1 | In Stock | | Siemens | 0.5 | 160.99 @ 1 |
 | sustainablesupply.com | C1172998 | 212.02 | 1 | In Stock | | Siemens | 0.5 | 212.02 @ 1 |
| Dale-Electric | 52PP2H3AB | 237.1 | 1 | In Stock | | Siemens Industry, Inc. | | 237.1 @ 1 |
 | Digi-Key | 15255119 | 268.91 | 1 | In Stock | | Siemens | | 268.91 @ 1 |
 | turtle.com | ITE 52PP2H3AB | 353.59 | 1 | In Stock | | Siemens | | 353.59 @ 1 |
