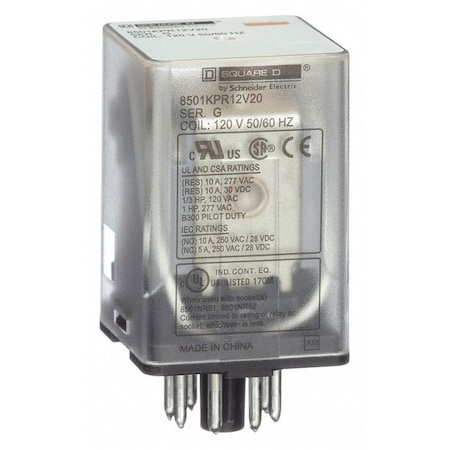

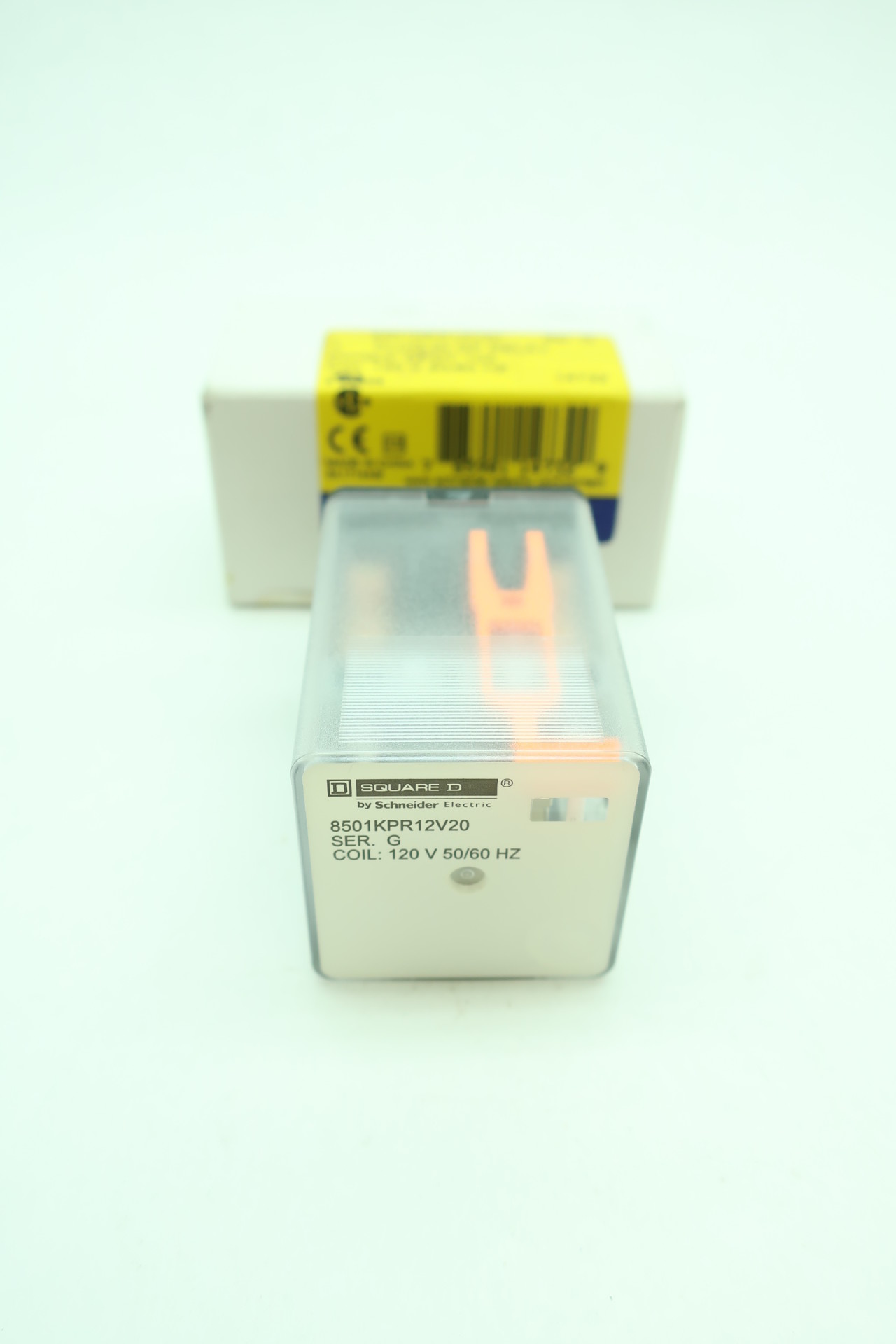

SQUARE D 8501KPR12V20 Plug-in Relay SER G 120V-AC D645998

SQUARE D 8501KPR12V20 Plug-in Relay SER G 120V-AC D645998zoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 277V
Application1 HP 277 V AC-0.33 HP 1.
ApprovalsCE, CSA, UL
Base Type - Plug In Rel.Octal
Body Depth2.1 in
Body Depth - Relay1.4 in
Body Height1.4 in
Body Height - Relay2.1 in
Body Width1.4 in
Body Width - Relay1.4 in
BrandSquare D by Schneider E.
Catalog Number8501KPR12V20
CategoryRelays
Coil Insulation-
Coil TypeNon Latching
Coil Voltage120VAC, 120 VAC ; 110/1.
Coil Volts120V AC
ConditionNew
Contact ConfigurationDPDT
Contact Current Rating10 A
Contact FormDPDT, SPDT, DPDT (2 For.
Contact Form - RelayDPDT
Contact MaterialSilver Nickel (AgNi), S.
Contact Rating10A @ 277VAC/30VDC
Contact Rating (Current)10 A
Contact Voltage Rating300
ContactsDPDT
Control Voltage120
Country of OriginCN - China, China
Current Rating10 A
DC Contact Rating - Rel.10A @ 28V
Depth1.4 in.
DescriptionPLUG IN RELAY, TYPE KP,.
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number4008-8501KPR12V20-ND
ECCNEAR99
EnclosurePlastic
Estimated Lead Time (in.5
Family SeriesSquare D Relays, 8501K .
Features-
Flat Pin WidthNot Applicable
Gross Weight0.3 lbs
GTIN785901147329
Height2.66 in.
HP @ 120V1/3 hp
HP @ 240V1/2 hp
HP Rating1 hp 277 V AC || 0.33 h.
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item Number8501KPR12V20
Item TypeDPDT,GENERAL PURPOSE,RE.
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number462992
Manufacturer Product Nu.8501KPR12V20
Manufacturer Standard L.7 Weeks
Materialsilver alloy (AgNi)
MfrSchneider Electric
MountingSocket, Plug In
Mounting - RelayPlug In
Mounting TypeSocket Mount, Socketable
Must Operate Voltage-
Must Release Voltage-
Net Weight0.3 lbs
Nominal Coil Voltage120 VAC
Number of Pins - Relay8
Operate Time20 ms
Operating Temperature-40-131 A?F, -40?C ~ 55.
Overall Depth2.7 in
Overall Height - Relay2.6 in
PackageBox
Power Consumption - Rel.3 VA
Primary TypePower Relays
Product Series8501K
Product StatusActive
Published Coil Voltage120 VAC
Rating @ 220/240/277 VAC10 A
Rating @ 24/28/30 VDC10 A
Relay TypeElectromechanical, gene.
Release Time20 ms
RoHSYes
Safety GuidedNo
Seal Rating-
SeriesSquare D, 8501K Series
Special FeaturesNO INDICATOR,WITHOUT TE.
StandardUL LISTED-UL RECOGNIZED.
StandardsCE Certified, CSA Certi.
Status IndicatorNo
Switching Voltage300VAC, 30VDC - Max
Termination8-Pin Octal, Round Pin
Termination StylePlug In, 8 Pin (Octal)
Time Cycle20 ms - pick-up || 20 m.
Typegeneral purpose
UNSPSC39122325
UPC785901147329
UPC Code785901147329
Use With8501NR52 || 8501NR51
Weight2.000000
Width1.4 mm
