Schneider Electric PGL36060U33A

B00CONGTJ2

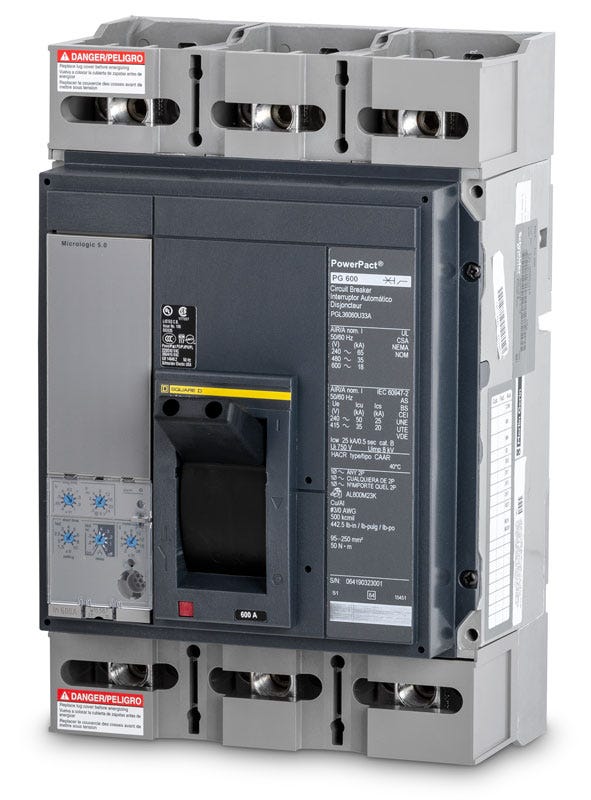

SCHNEIDER ELECTRIC Molded Case Circuit Breaker 600-Volt 600A PGL36060U33A Terminal Shroud Top Or Bottom 400A

SCHNEIDER ELECTRIC Molded Case Circuit Breaker 600-Volt 600A PGL36060U33A Terminal Shroud Top Or Bottom 400Azoom

Attributes

Key Value
Amperage600
ApplicationDistribution
AWG Range3 x AWG 3/0...3 x 500 k.
BrandSquare D, Square D by S.
Catalog NumberPGL36060U33A
Circuit Breaker TypeMolded Case
ConnectionLugs load;lugs line; 3 .
Country of OriginUnited States, US - Uni.
Current Rating600A
Depth8.05 in.
DisplayPGL36060U33A Circuit br.
ECCNEAR99
FrameP-FRAME
Frame TypeP
FunctionsLSI - Long-Time, Short-.
Gtin785901854975
Height12.86, 12.86 in.
Height (in)12.86
Height UOMInch
Interrupt Rating18 kA, 600 V AC,65 KA 2.
Interrupting Rating35kA
Item TypeCircuit breaker
Length25 mm, 8.05
Length (in)8.05
Length UOMInch
Made in USAYes
ManufacturerSchneider Electric
Mounting TypeUnit
No. of Poles3-Pole
Number of Poles3
Number Of Wires3
Phase3
Poles3
ProtectionSolid State
Rated Voltage600V AC 50/60 Hz UL 489
SeriesPGL, PowerPact
Special FeaturesUNIT MOUNT
StandardUL || CSA || NEMA || NO.
StandardsCSA, IEC, UL listed
Terminal ConnectionFeed-Thru
Torque50-50 N.m 95-240 mm? (3.
Trip TypeElectronic, standard, M.
UNSPSC39121616
UPC785901854975
Upc785901854975
Voltage600 VAC
Voltage Protection Rati.480V
Voltage Rating600 V AC
Warranty DescriptionContractual Warranty:18.
Width8.27, 8.27 mm
Width (in)8.27
Width UOMInch
Wire GaugeAWG 3/0...500 kcmil

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.comPGL36060U33A3851.951In StockSquare D3851.95 @ 1
thumbzoomgordonelectricsupply.comPGL36060U33A13185.01In Stock10SQUARE D13185.0 @ 1
thumbzoomcrescentelectric.com65895513457.851In StockSquare D by Schneider Electric13457.85 @ 1
thumbzoomRadwellPGL36060U33A13700.01In StockSCHNEIDER ELECTRIC SQUARE D13700.0 @ 1
Newark52T472213723.471In StockSQUARE D BY SCHNEIDER ELECTRIC13723.47 @ 1
Graybar2542467616835.841In StockSquare D (Schneider Electric)16835.84 @ 1
