- mpn2BK3478
- brandname: TB Woods
- manufacturername: TB Woods

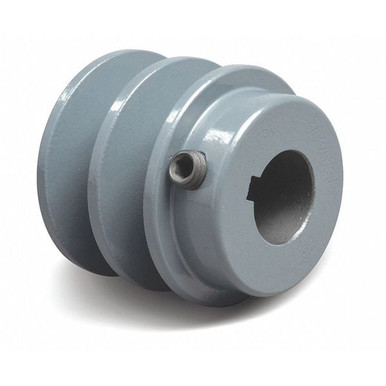

TB Woods 2BK3478 FHP Bored-to-size V-Belt Sheave, B Belt Section, 2 Grooves, 7/8" Bore, Cast Iron, 3.75" OD, 6670 max rpm
- Brand: TB Woods
- PartNumber: 2BK3478
- Model: 698672150644
- Size: 6670 max rpm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Tb Wood'S
- Label: Tb Wood'S
Attributes
| Key | Value |
|---|
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 3.18 in |
| 4L, A, or AX Belt Pitch. | 2.8 in |
| 5L Pitch Diameter | 3.613 in |
| 5L, B, or BX Belt Pitch. | 3.2 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 3.18 in |
| AX Pitch Diameter | 3.18 in |
| B Pitch Diameter | 3.613 in |
| Belt section | B-5L-A-4L |
| belt section size: | B, 4L, 5L, A |
| Bore Diameter | 7/8 in |
| bore diameter: | 0.8750 in |
| Bore Type | Fixed |
| Bore type | Finished with keyway |
| bore type: | Finished w/ Keyway & SS |
| Bore-to-size bore diame. | 0.88 |
| Bore-to-size keyseat | 3/16 in x 3/32 in |
| Brand | Tb Woods |
| Bushing Required | None |
| BX Pitch Diameter | 3.613 in |
| C Pitch Diameter | Not Applicable |
| Color | Grey |
| Component WR2 (lbs ft2) | 0.03 |
| Construction | Solid |
| Current Stock | 47 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 3.4 |
| Dimension | 0.47 |
| Face Width | 1.75 in |
| Face width | 1.75 |
| Face width (in) | 1.75 |
| Fits Shaft Dia. | 7/8 in |
| For Belt Trade Size | 4L, 5L, A, AX, B, BX |
| For V-Belt Section | 4L, 5L, A, AX, B, BX |
| For V-Belt Type | Banded, Classical, Cogg. |
| Groove cross section se. | B |
| Hub location | -0.47 |
| Hub location (in) | -0.47 |
| Hub Projection | 0.47 in |
| I.D. | 3.05 |
| Industry Number | 2BK3478 |
| Inertia WR? | 4 |
| Inside diameter (in) | 3.05 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Keyway Depth | 3/32 in |
| Keyway Size | 0.187" x 0.093" |
| Keyway Size Type | 0.187 in x 0.093 in |
| keyway size: | 3/16 x 3/32 in |
| Keyway Width | 3/16 in |
| Length through Bore | 1 31/32 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Material type | CI |
| material: | Cast Iron |
| Max RPM | 6670 |
| Maximum Bore Diameter | 7/8 in |
| Mpn | 2BK3478 |
| Number of Grooves | 2 |
| Number of grooves | 2 |
| O.D. | 3.75 |
| Outside Diameter | 3.55 in |
| Outside diameter (in) | 3.75 |
| Overall Width | 2 1/4 in |
| overall width: | 2-7/32 in |
| Pitch diameter | 3.81 |
| Pitch Diameter | 3.81 in |
| Pitch Diameter for V-Be. | 4L: 3.18 in / 5L: 3.613. |
| pitch diameter: | 3.18 (A/4L) in, 3.613 (. |
| Pulley Bore Dia. | 7/8 in |
| Pulley Bore Type | Fixed Bore |
| Pulley Construction | Plain |
| pulley construction: | Plain |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 3.55 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 6670 |
| Set Screw Included | Yes |
| SKU | ZO-G2400361 |
| Standards | ISO 9001:2015 |
| SubCategory | Power Transmission |
| UPC | 698672150644 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2400361 | 31.79 | 1 | 80 | | Tb Woods | 2.97 | 31.79 @ 1 |
 | sustainablesupply.com | C1694551 | 43.28 | 1 | In Stock | | TB Wood's | 2.97 | 43.28 @ 1 |
 | simsupply.com | ZO-G2400361 | 45.49 | 1 | 47 | | Tb Woods | | 45.49 @ 1 |
 | National Supply Network | 82223751 | 56.3 | 1 | In Stock | | TB Wood's | | 56.3 @ 1 |
 | bscsource.com | 2BK3478 | 82.29 | 1 | In Stock | | TB Wood's | | 82.29 @ 1 |
 | MRO Supply | 347450 | 88.4 | 1 | In Stock | | TB Woods | | 88.4 @ 1 |
 | motionindustries.com | 00735736 | 95.01 | 1 | In Stock | | TB Woods (Altra) | | 95.01 @ 1 |
| us.rs-online.com | 73931866 | 98.08 | 1 | In Stock | | TB Wood's (Altra) | | 98.08 @ 1 |
 | Raptor Supplies | AE6PNX | 109.254483 | 1 | In Stock | | TB WOOD'S | | 109.254483 @ 1 |
