TE Connectivity OAC-5A

B00F0TTZ0M

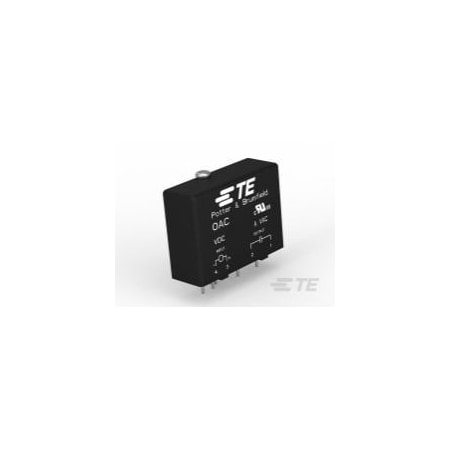

Potter and Brumfield OAC5A Output Module OAC-5A

Potter and Brumfield OAC5A Output Module OAC-5Azoom

Attributes

Key Value
Alternate Mfr Part Numb.2-1393028-8
Alternate Part No.655-OAC-5A
Base Product NumberOAC-5
BrandTE Connectivity / P&B
Case ColourBlack
CategoryRelays
ColorBlack
Connection to HostCircuit Board
Country of Origin (subj.Mexico
Current - Input20 mA
Current - Output3A
Depth0.157 in
DescriptionAC OUTPUT MODULE 3A
Detailed DescriptionAC Output Module Output.
Digi-Key Part NumberPB698-ND
Dimensions43.18 x 31.8 x 15.2 mm
FeaturesHold Down Screw
For Use With2IO Series Mounting Boa.
Input Current6 A, 20 mA
Input Resistance220 Ohms (Typ.) Ohms
Insulation Resistance100 MegaOhms
Isolation4000 V
Isolation Voltage4000 VAC
Leakage Current1 mA (RMS) (Max.) @ 120.
Length1.7 in
ManufacturerTE Connectivity, TE Con.
Manufacturer Part No.OAC-5A
Manufacturer Product Nu.OAC-5A
Manufacturer Standard L.19 Weeks
Maximum Operating Tempe.+80 ?C
MfrTE Connectivity Potter .
Minimum Operating Tempe.-30 ?C
Module TypeControl
Mounting TypePCB Mount
Number of Channels1
Number of IO Ports1
Operating Temperature?30 to +80 ?C
Operating Voltage3 V
Output24 to 280 VAC
Output Current3 A
Output DeviceAC
Output TypeDigital
Output Voltage5 VDC
PackageBulk
Part # Aliases2-1393028-8
Primary TypeModule
Product CategoryI/O Modules
Product HeaderOAC Series Black Case O.
Product StatusActive
Range Output24 to 280 VAC
SeriesOAC Series, OAC
Special FeaturesOptical Isolation
StandardsUL Recognized, CSA Cert.
StyleStandard
Supply Voltage8 VDC
Temperature Operating R.-30 to +80 ?C
Termination StylePC Terminals
Turn Off Time8.3 ms (Max.), 8.33ms
Turn On Time8.3 ms, 8.33ms
TypeOutput, AC Output Module
Voltage - Input5VDC
Voltage - Output24 ~ 280VAC
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Allied Electronics7121043113.071In StockTE Connectivity13.07 @ 1
Freelance ElectronicsOAC-5A13.27882191Tyco Electronics13.27882 @ 1
thumbzoomComponent Electronics718-4815.38117Potter & Brumfield15.38 @ 1
Onlinecomponents.comOAC-5A17.231146TE Connectivity / P&B Brand17.23 @ 1
thumbzoomNewark18M925518.24200In StockPOTTER&BRUMFIELD - TE CONNECTIVITY18.24 @ 200
Mouser655-OAC-5A20.951197TE Connectivity20.95 @ 1
us.rs-online.com7019858022.231In StockTE Connectivity22.23 @ 1
HotendaH353647622.281146TE Connectivity Potter & Brumfield Relays22.28 @ 1
thumbzoomDigi-Key81376522.421463TE Connectivity Potter & Brumfield Relays22.42 @ 1
thumbzoomZoroG20096811424.01In StockPotter-Brumfield24.0 @ 1
AmazonSCB00F0TTZ0M25.01In StockTE Connectivity25.0 @ 1
thumbzoomswatee.comOAC-5A28.21129TE Connectivity28.2 @ 1

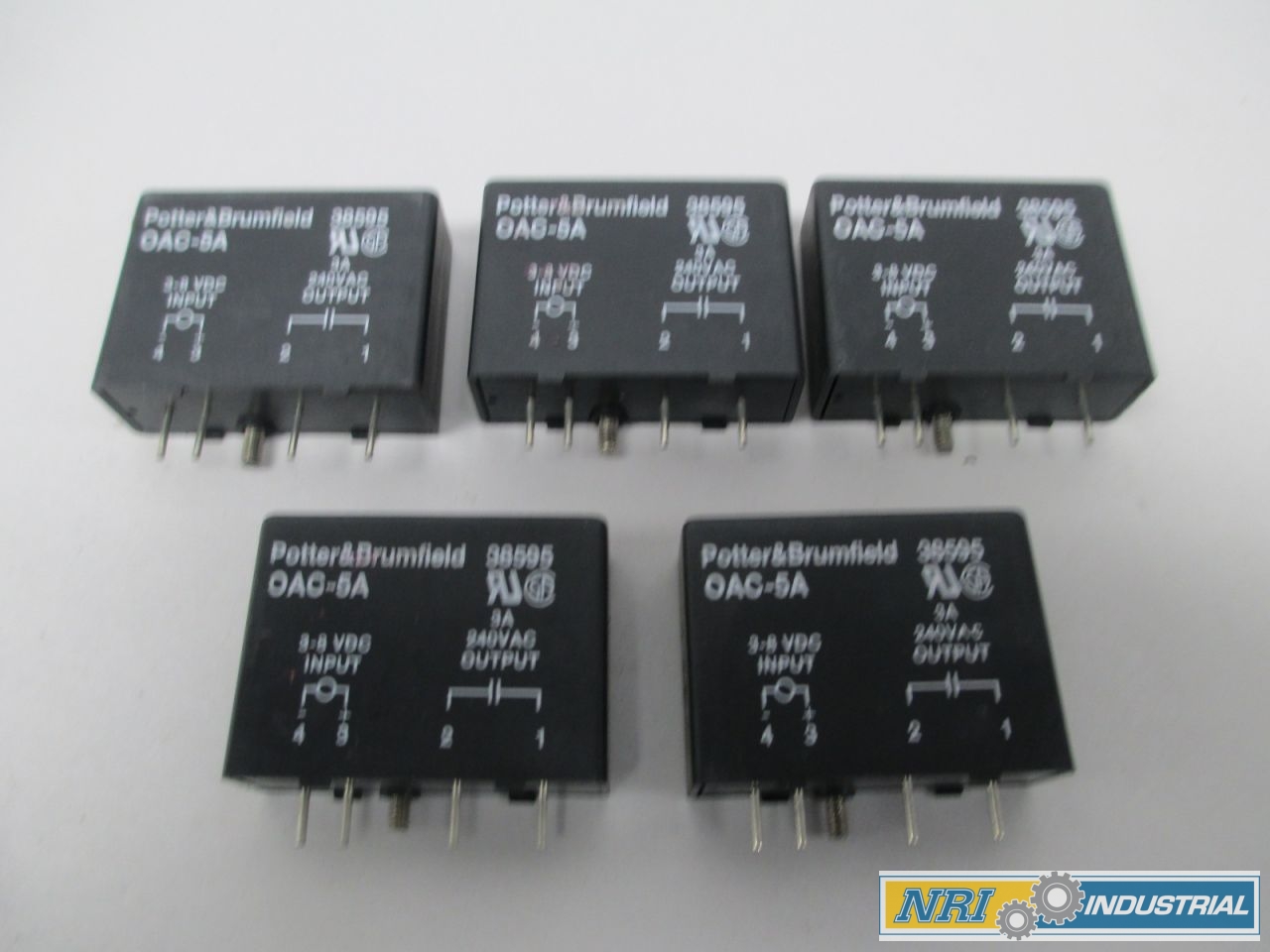

thumbzoomNRI IndustrialD28349639.981In StockPOTTER BRUMFIELD39.98 @ 1
thumbzoommidwestapplianceparts.comOAC-5A-TV-P48.771In StockTE Connectivity48.77 @ 1
