TE Connectivity / AMP 5225396-2

B07KPMMBD6

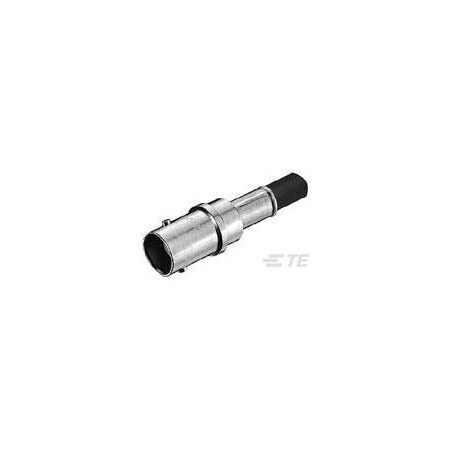

5225396-2, BNC Jack Dual CP RG59,62 (2 Items)

5225396-2, BNC Jack Dual CP RG59,62 (2 Items)zoom

Attributes

Key Value
Alternate Part No.571-5225396-2
Body FinishNickel
Body MaterialBrass
BrandTE Connectivity / AMP
Cable Clamping MethodDual Crimp
Cable GroupRG-59, 59A, 59B, 62, 62.
Cable TypeRG-59, RG-59A, RG-59B, .
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
ColorSilver
Color FamilySilver
Connector StyleBNC
Connector TypeJack, Female Socket
Contact MaterialBeryllium Copper
Contact PlatingGold
Contact TerminationCrimp
Dielectric MaterialPolytetrafluoroethylene.
ECCNEAR99
Fastening TypeBayonet Lock
Features-
Frequency - Max4 GHz
GenderJack
Housing ColorSilver
Impedance50Ohm, 50 Ohms
Includes3 pcs - 1 Connector, 1 .
Ingress Protection-
Insertion Loss0.2dB
InsulatedNo
Insulation Resistance5000 MOhms
ManufacturerTE Connectivity
Manufacturer P/N5225396-2
Manufacturer Part No.5225396-2
MaterialBrass, Beryllium Copper
Mating Cycles500
Maximum Frequency4 GHz
MfrTE Connectivity AMP Con.
Mounting Feature-
Mounting TypeFree Hanging (In-Line)
Number of Ports1
Operating Temperature-55?C ~ 85?C
Operating Temperature R.- 65 C to + 165 C
OrientationStraight
Pack Quantity1
Package Quantity1
Part StatusActive
PolarityStandard
ProductConnectors
Product CategoryRF Connectors / Coaxial.
RF SeriesBNC
Schedule B Code8536.69.5050
Series-
Shield TerminationCrimp
Shipping Weight0.001 pounds
Style - ConnectorStraight
Termination StyleCrimp
TypeJack
Use With - Nonmetallic .RG 62A, RG 59A, RG 62B,.
Voltage Rating500 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5225396-212.6535TE CONNECTIVITY/AMP BRAND12.6 @ 5
Digi-Key5225396-2-ND14.27405200In StockTE Connectivity AMP Connectors14.27405 @ 200
Onlinecomponents.com5225396-215.68112TE Connectivity / AMP Brand15.68 @ 1
thumbzoomswatee.com5225396-224.871In StockTE Connectivity24.87 @ 1
skygeek.comSGP2302529.051In StockTE CONNECTIVITY0.00129.05 @ 1
thumbzoomZoroG00593192479.564In StockTe Connectivity79.56 @ 4
