TE Connectivity 2213188-1

B00OVEFKTW

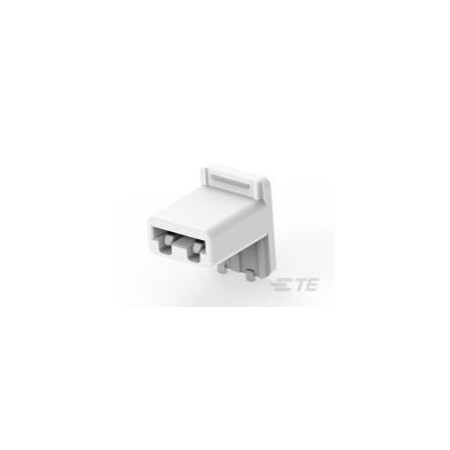

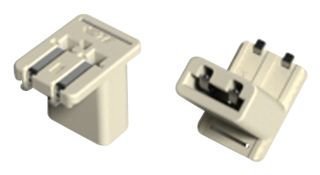

TE CONNECTIVITY 2213188-1 CONNECTOR, INVERTED CARD EDGE, 2 POSITION, 1MM BOARD (1 piece)

TE CONNECTIVITY 2213188-1 CONNECTOR, INVERTED CARD EDGE, 2 POSITION, 1MM BOARD (1 piece)zoom

Attributes

Key Value
Base Product Number2213188
CategoryConnectors, Interconnec.
ColorNatural
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader, Receptacle
Contact FinishTin, Matte Tin Plated
Contact MaterialCopper Alloy
Contact Plating Thickne.2 ?m
Current Rating3 A
Current Rating (Amps)3A
Fastening Type-
Features1.00mm Thick PCB, Solde.
Flammability RatingUL 94 V-0
Height9.25 mm
Hole Center to Center3.3 mm
Housing ColorNatural
Housing MaterialThermoplastic
Ingress Protection-
ItemConnector
Length0.295 in
Mating Cycles-
Max. Temp.130?C
Max. Voltage400V AC/DC
MfrTE Connectivity AMP Con.
Mounting TypeSurface Mount, Bottom E.
Number of Contacts2
Number of Positions2
Number of Rows1
Operating Temperature-20?C ~ 130?C
PackageTape & Reel (TR)
Package Quantity1
Pitch0.130" (3.30mm)
Product StatusActive
Series-
StandardsCSA; UL 1977; C22.2 No..
StyleBoard to Card Edge
Terminal FinishMatte Tin-Lead over Nic.
Terminal TypeSurface Mount
TerminationSolder
Voltage Rating400V
Width0.421 in
Wire Gauge-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 2213188-10.47400296TE CONNECTIVITY/AMP BRAND0.47 @ 400
Onlinecomponents.com2213188-10.6614000TE Connectivity / AMP Brand0.66 @ 1
thumbzoomNewark20X52100.6778000147TE CONNECTIVITY0.677 @ 8000
thumbzoomZoroG8010413600.72400147Te Connectivity0.72 @ 400
Digi-Key448641613.9081147TE Connectivity AMP Connectors13.908 @ 1
