WorldWide Electric Corporation

B07D6K5DXS

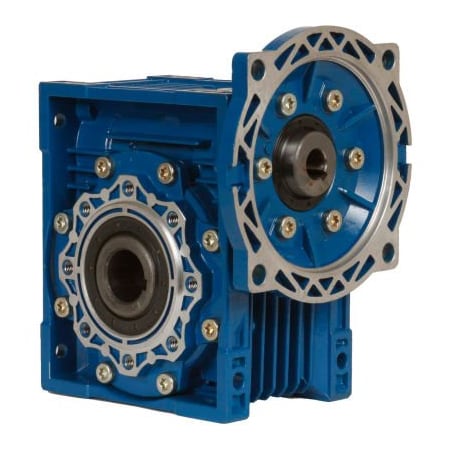

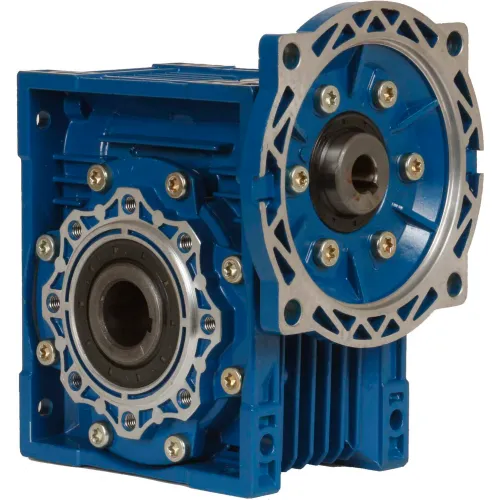

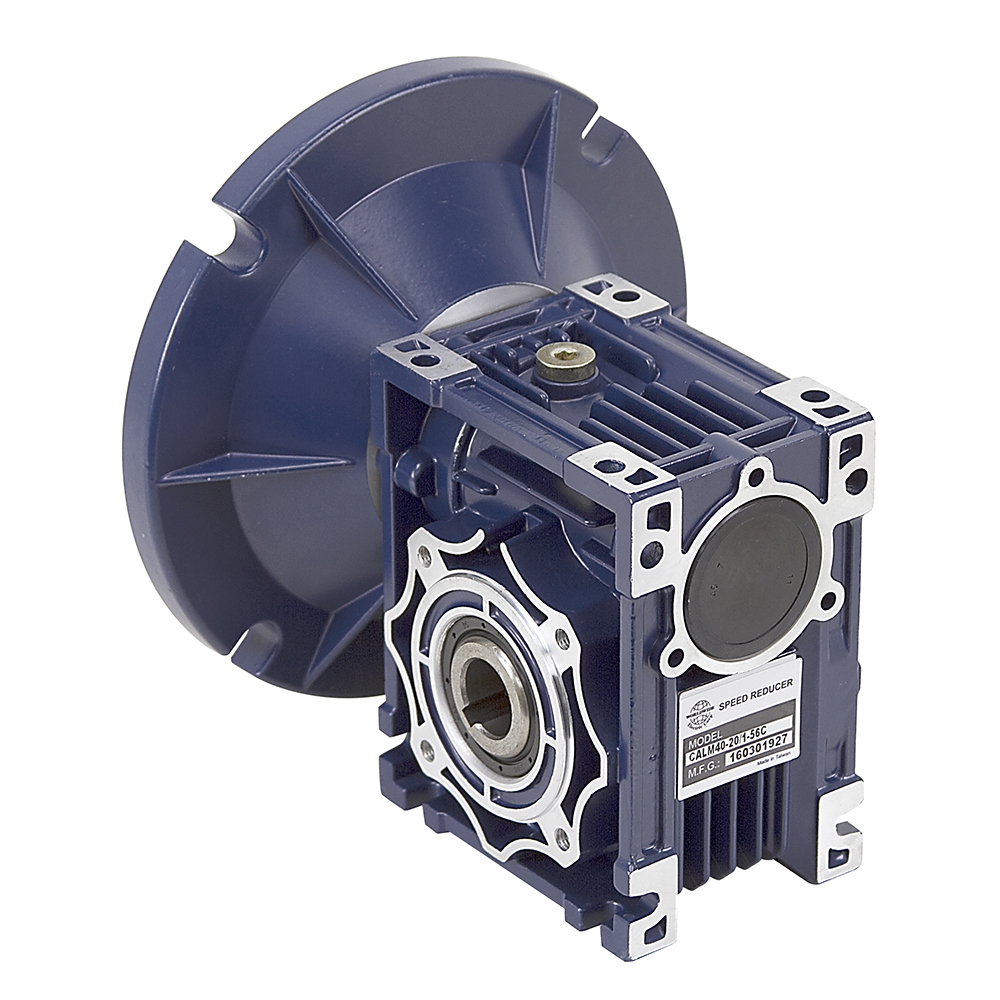

Worldwide Electric CALM40-25/1-56C Aluminum Worm Gear Reducer, 40mm, 25:1, 56C NEMA Frame

Worldwide Electric CALM40-25/1-56C Aluminum Worm Gear Reducer, 40mm, 25:1, 56C NEMA Framezoom

Attributes

Key Value
Back Mount90mm x 60mm
Box Size40 mm Center Distance
BrandWorld Wide Electric
Center Distance1.574 "
center distance mm40
Efficiency76 %
Family SeriesWorldwide Electric Corp.
Gear Ratio25:1
Gearbox TypeWorm
Gross Weight0 lbs
hp0.5
Input Bore5/8&QUOT keyed, 3/16&QU.
Input Bore Size0.625 "
Input Hp (1.0 S.F.)0.48 Hp Max
Input TypeFlange
Item NumberCALM40-25/1-56C
ManufacturerWorldwide Electric Corp.
Manufacturer Part NumberCALM40-25/1-56C
MaterialAluminum Alloy
materialAluminium
Max Input HP (@ 1750 RP.0.48 hp
Max OverHung Load (OHL)410
Model NumberCALM40-25/1-56C
Motor Frame SizeNEMA 56C
Motor Mount56C
nema frame56C
Net Weight0 lbs
Nominal Torque (in-lbs)328 in-lbs
Output Bore3/4&QUOT keyed, 3/16&Q.
Output RPM @ 1750 RPM I.70 RPM
output rpm at 1800 rpm .70
Output Shaft Diameter0.75 "
Output Shaft Thrust Load82 lbs. Max
Output Shaft TypeHollow Shaft
Output Speed (RPM)70 RPM
Output Torque328 in.-lb. Max
Over-Hung Load410 lbs. Max
Overall Size5.37&QUOT x 6.5&QUOT x .
Package Quantity1
Product SeriesCALM
Ratio25:1
Shpg.6.2 lbs.
Top & Bottom Mount70mm x 60mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsurpluscenter.com13-1579-25-56C175.951In StockWorldWide Electric6.2175.95 @ 1
thumbzoomNational Supply NetworkB1742167191.761In StockWorldwide Electric Corporation191.76 @ 1
thumbzoomGalcoCALM40-25/1-56C-WWEC195.641In StockWorldwide Electric Corporation195.64 @ 1
thumbzoomGlobal IndustrialWBB1742167211.951In StockWorldwide Electric Corporation211.95 @ 1
thumbzoomZoroG104902412252.991In Stock10Worldwide Electric252.99 @ 1
