Cle-line C20040

mpnC20040
brandname: Cle-Line
manufacturername: Cle-Line

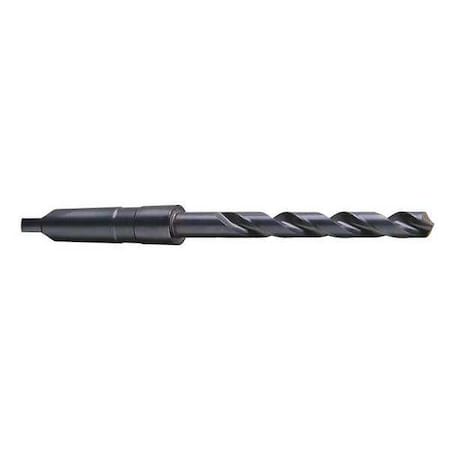

Cle-Line C20040 General Purpose Taper Shank Drill, High Speed Steel, Steam Oxide Finish, No.3 Morse Taper Shank, 118-Degree Radial Point, 1 1/8" Drill Diameter

Brand: Cle-line
PartNumber: C20040
Model: C20040
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Application	General Purpose Drilling
Coolant Fed	Non-Coolant Through
Country of Origin (subj.	United States
Cutting Depth	7-1/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	1.1250
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	1.1250"
Diameter (Fraction)	1-1/8"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Point Angle	118 Degrees
Drill Bit Point Type	Conventional Point
Drill Bit Size	1 1/8 in
Drill Construction	General Purpose
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0015 in
Drill Size - Decimal In.	1.125 in
Drill Size - Fraction	1-1/8 in
Drill Size System	Fractional
Drill Style	Taper Shank Drill
Finish	Black Oxide
Finish - Machining	Black Oxide
Flute Length	7-1/8 in, 7 1/8 in, 7.1.
Flute Length (Metric)	180.97mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	21 Degrees to 34 Degre.
Item	Taper Shank Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	7 1/8 in
Measurement System	Fractional Inch
Number of Flutes	2
Overall Length	11.7500", 11 3/4 in, 11.
Overall Length (Metric)	298.45mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Primary Material Applic.	Cast Iron, Steel
Primary Material Applic.	K, P
Series	1894
Shank Configuration	#3 Morse Taper
Shank Length	4.6250"
Shank Length (Metric)	117.47mm
Shank Taper Designation	#3 Morse Taper
Shank Type - Machining	Taper
Spiral Direction	Right Hand
Standards	ASME B94.11M
Style	1894
Surface Condition	Steam Oxide
Taper Shank Size	MT3
Through Coolant (Yes/No)	No
Tool Size	1-1/8"
Type	General Purpose Regular.

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Zoro	G4953560	79.75	1	In Stock	26	Cle-Line	1.95	79.75 @ 1
MRO Supply	6123766	80.55	1	In Stock		Cle-Line		80.55 @ 1
Global Industrial	WBB2544341	83.95	1	In Stock		Cle-Line		83.95 @ 1
usmegastore.com	C20040	85.02	1	In Stock		Cle-Line		85.02 @ 1
Megadepot	C20040	85.02	1	In Stock		Cle-Line		85.02 @ 1
heavydutydepot.com	C20040	85.02	2	In Stock		Cle-Line		85.02 @ 2
