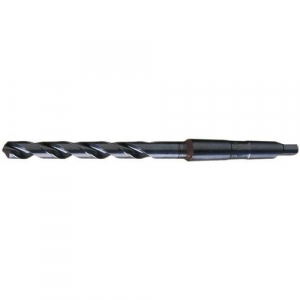

Cle-Line C20068 General Purpose Taper Shank Drill, High Speed Steel, Steam Oxide Finish, No.5 Morse Taper Shank, 118-Degree Radial Point, 1 9/16" Drill Diameter

Cle-Line C20068 General Purpose Taper Shank Drill, High Speed Steel, Steam Oxide Finish, No.5 Morse Taper Shank, 118-Degree Radial Point, 1 9/16" Drill Diameterzoom

Attributes

Key Value
ApplicationGeneral Purpose Drilling
Coolant FedNon-Coolant Through
Cutting DirectionRight Hand
Decimal Equivalent1.5625
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter1.5625"
Diameter (Fraction)1-9/16"
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishBlack Oxide
Drill Bit Point Angle118 Degrees
Drill Bit Point TypeConventional Point
Drill Bit Size1 9/16 in
Drill ConstructionGeneral Purpose
Drill Diameter Tolerance+0.0000 in /-0.0015 in
Drill Size SystemFractional
Drill StyleTaper Shank Drill
Flute Length9.6250", 9 5/8 in
Flute Length (Metric)244.47 mm
Flute TypeSpiral
Hand of CutRight
Hand of SpiralRight
Helix Angle21 Degrees to 34 Degre.
ItemTaper Shank Drill Bit
MaterialHSS
Material - MachiningHigh Speed Steel
Maximum Drilling Depth9 5/8 in
Number of Flutes2
Overall Length16.6250", 16 5/8 in
Overall Length (Metric)422.27 mm
Point Angle118?
Point StyleRadial
Primary Material Applic.Cast Iron, Steel
Series1894
Shank Configuration#5 Morse Taper
Shank Length7.0000"
Shank Length (Metric)177.80mm
StandardsASME B94.11M
Style1894
Surface ConditionSteam Oxide
Taper Shank SizeMT5
Tool Size1-9/16"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply6123784195.091In StockCle-Line195.09 @ 1
thumbzoomZoroG4953256201.991In StockCle-Line6.38201.99 @ 1
thumbzoomMegadepotC20068214.81In StockCle-Line214.8 @ 1
thumbzoomusmegastore.comC20068215.71In StockCle-Line215.7 @ 1
thumbzoomheavydutydepot.comC20068215.71In StockCle-Line215.7 @ 1
thumbzoomGlobal IndustrialWBB2544156215.951In StockCle-Line215.95 @ 1
thumbzoomAmazonB00JA56UXM242.631In StockCle-line242.63 @ 1
