Cleveland C14501

mpnC14501
brandname: CLEVELAND
manufacturername: CLEVELAND

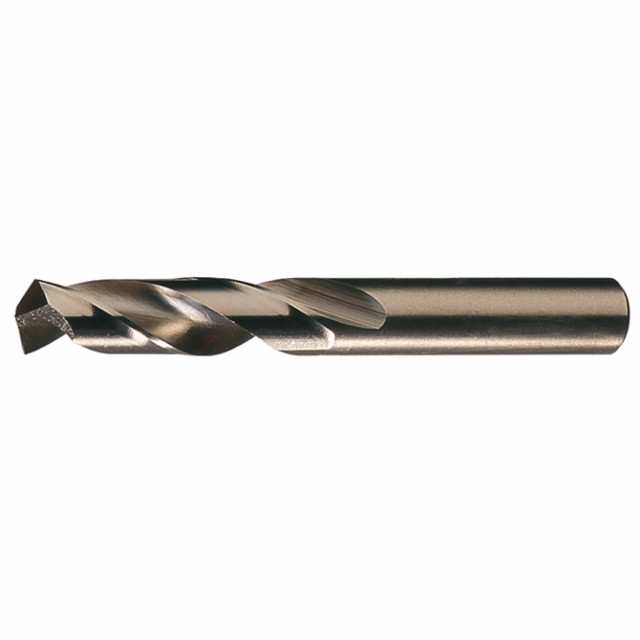

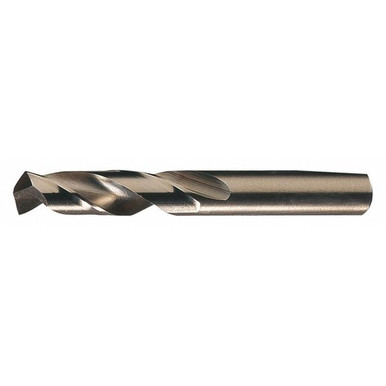

Cleveland 2133 Style Cobalt Steel Short Length Drill Bit, Bronze Oxide, Round Shank, 135 Degree Split Point, #60 (Pack of 10)

Cleveland 2133 Style Cobalt Steel Short Length Drill Bit, Bronze Oxide, Round Shank, 135 Degree Split Point, #60 (Pack of 10)

zoom

Brand: Cleveland
PartNumber: C14501
Size: #60
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Carbon Steel, Cast Iron.
Bit Dia.	#60
Brand	Cleveland
Construction:	Heavy-Duty
Current Stock	2
Cutting Depth	1/2 in
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8
Decimal Equivalent	0.0400
Decimal Equivalent:	0.0400"/ 1.02mm
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter Wire:	60
Drill Bit Dimension Type	Wire
Drill Bit Finish	Straw/Bronze
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees
Drill Bit Size	#60
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0005 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.0083 in
Drill Size - Decimal In.	0.04 in
Drill Size - Wire	#60
Drilling Length	1/2"
Finish	Straw/Gold Oxide
Flute Length	1/2 in
Flute Type	Right Spiral, Spiral
Hand of Spiral Cut:	RHS / RHC
International Shipping	No
Item	Screw Machine Drill Bit
Length of Flute:	0.5000"/ 12.70mm
List Style:	2133
Material	M42 HSS-Co 8, HSS-CO 8%.
Material:	Cobalt
Maximum Drilling Depth	1/2 in
Mpn	C14501
Number of Flutes	2
Overall Length	1 3/8 in, 1-3/8 in
Overall Length:	1.3750"/34.92mm
Point Angle	135 deg
Point Type	Split
Series	2133
Shank Dia.	1/32 in
Shank Length	7/8 in
Shank Size	0.0400", 0.04 in Dia x .
Shank Size:	0.0400"/ 1.02mm
Shank Type	Straight
Shank:	Straight
Sizes Included	#60
SKU	ZO-G3001247
Style	2133
SubCategory	Machining
Surface Condition	Straw
Surface Condition:	Straw/Gold Oxide
Tool Size	#60
Type	General Purpose Heavy D.
UPC	697334145011

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6110932	3.65	10	10		Cleveland		3.65 @ 10
	usmegastore.com	C14501	3.83	1	10		Cleveland		3.83 @ 10
	Zoro	G3001247	4.25	1	10		Cleveland	0.02	4.25 @ 10
	Megadepot	C14501	4.33	1	10		Cleveland		4.33 @ 10
	National Supply Network	63793608	6.219	10	10		Cleveland		6.219 @ 10
	simsupply.com	ZO-G3001247	11.99	1	10		Cleveland		11.99 @ 10
