ELECTRIC MOTORS AND SPECIALTIES UTBCF1701E56C

B0763HM2J3

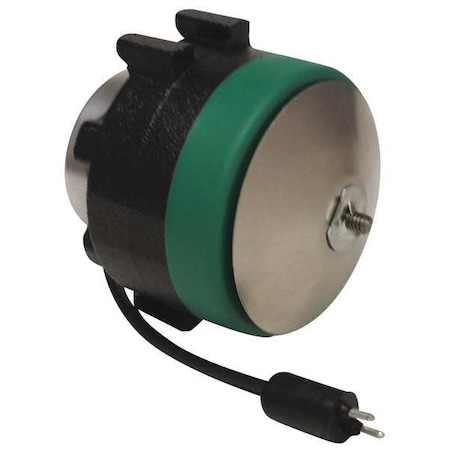

Unit Bearing Fan Motor, 1/86 HP, 1700 RPM

Unit Bearing Fan Motor, 1/86 HP, 1700 RPMzoom

Attributes

Key Value
Body Dia.3 7/16 in, 3-15/32"
Bolt Circle Dia.2-13/16", 2 13/16 in
BrandElectric Motors and Spe.
Cord Length15", 15 in
FeaturesIt can Operate with Hor.
FrameNon-Standard
Full Load Amps0.12, 0.30
Green Environmental Att.Product Contributes To .
HP1/57, 1/86
Hz60
IncludesMounting Screws and Fan.
Ins. ClassB
International ShippingNo
ItemUnit Bearing Motor
Length Less Shaft4-13/64", 4 3/16 in
Max. Ambient Temp.40 Degrees C, 40 Degre.
Motor ApplicationHVAC/R
Motor BearingsUnit
Motor DesignECM
Motor Enclosure DesignTotally Enclosed Air-Ov.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal or Vertical .
Motor Mounting TypeRear/Foot
Motor Shaft DesignThreaded
Motor Shaft RotationCWLE
Motor Sub ApplicationRefrigerator/Freezer
Motor Thermal ProtectionAuto
MpnUTBCF1701E56C
Nameplate RPM1700, 1,725, 1,700
No. of Speeds1
Output Watts4 W, 13 W, 4
Overall Length4 5/8 in, 4-39/64"
Phase1, Single
Plug TypeRound 2 Pin
Resilient Ring Dia.2-1/8", 2 1/8 in
Ring Dia.2 1/8 in
RPM Range1,601-1,700
Shaft Dia.1/4 in, 1/4"
Shaft Length13/32", 13/32 in
SKUZO-G9469643
StandardsUL/CUL
SubCategoryMotors/Ac Motors
UPC696334125122
Usable @ 200VNo
Usable @ 208VNo
Voltage115, 115V AC
Voltage Compatibility115/208-230V AC, 115/23.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsimsupply.comZO-G9469643115.721In StockElectric Motors and Specialties115.72 @ 1
thumbzoomZoroG9469677123.9911Electric Motors And Specialties2.73123.99 @ 1
grainger.caGUS35LM20124.43943871In StockELECTRIC MOTORS AND SPECIALTIES2.7124.4394387 @ 1
