Extech EX520-NIST

B00HC9MC0S

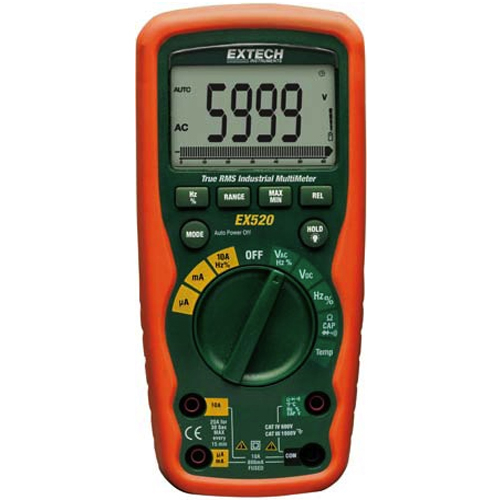

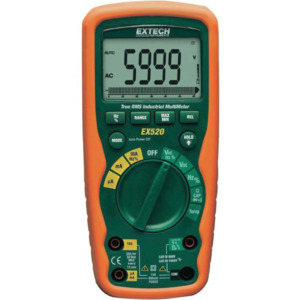

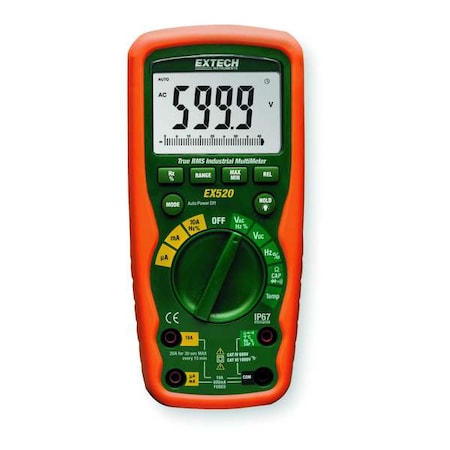

Extech EX520-NIST True RMS Heavy Duty Industrial Multimeter with NIST

Extech EX520-NIST True RMS Heavy Duty Industrial Multimeter with NISTzoom

Attributes

Key Value
AC Current Measurement .0.1 uA
AC Response CalculationTRMS
AC Voltage1 kV
AC Voltage Measurement .0.001 V
Audible ContinuityYes
Auto Power OffYes
Auto RangingYes, No
Averaging/True RMSTrue RMS
BacklightYes
Bar Graph IncludedYes
Basic AC Current Accura.+/-1.5%
Basic AC Voltage Accura.+/-2%
Basic Accuracy0.09%
Basic DC Accuracy+/-0.09% of Reading +2 .
Basic DC Current Accura.+/-1%
Basic DC Voltage Accura.+/-0.09%
Batteries IncludedYes
Battery AccessYes
Battery ChemistryAlkaline
Battery Size9V
Battery Voltage9V
Bluetooth CompatibleNo
Calibration Certificate.Yes
Capacitance0.01nF to 1000?F, 1,000.
Capacitance Measurement.+/-1%
Capacitance Measurement.0.01 nF
Computer Interface Conn.None
ConditionNew
ConfigurationHandheld
Continuity W/ Diode TestYes
Current Leakage TestingNo
Data HoldYes
Data LoggingNo
DC Current Measurement .0.1 uA
DC Voltage1 kV
DC Voltage Measurement .0.1 V
DC/AC Current0.1?A to 20A
Depth2.3 in
Dimensions7.25x3.25x2.25"(184x83x.
dimensions:184 H x 83 W x 57 D mm
Diode TestYes
Diode/ContinuityYes
Display Counts6,000 count
Display TypeBacklit LCD, LCD, Backl.
display type:Digital
DustproofYes
Duty Cycle0.1 to 99.9%, Yes
Family SeriesExtech Instruments Mult.
Frequency400 kHz
Frequency (electrical10Hz to 400Hz
Frequency (electronic)0.001Hz to 40MHz
Frequency Measurement A.+/-1%
Frequency Measurement R.0.001 Hz
Fuse AccessYes
Gross Weight3 lbs
housing color:Orange
Includes9V Battery, Carrying Ca.
Instrument Counts6000, 6,000
Instrument Frequency Co.0.001 Hz to 40 MHz
Instrument Safety RatingCAT III 1000V, CAT IV 6.
Intrinsically SafeNo
IP RatingIP67
ItemDigital Multimeter
Item NumberEX520-NIST
ManufacturerExtech, Extech Instrume.
Manufacturer Part NumberEX520-NIST
Manufacturers Warranty .3 yr
Max Current (AC)20 A
Max Current (DC)20 A
Max Resistance40 MOhm
Max Voltage (AC)1,000 VAC
Max Voltage (DC)1,000 VDC
Max. AC Amps20
Max. AC Volts1,000
Max. DC Amps20 A
Max. DC Volts1,000
Max. Ohms40 megohm
Maximum AC Current Meas.20 A
maximum ac current meas.20 A
Maximum AC Voltage Meas.1,000 V
maximum ac voltage meas.1000 V ac
Maximum Capacitance Mea.1,000 uF
Maximum DC Current Meas.20 A
maximum dc current meas.20 A
Maximum DC Voltage Meas.1,000 V
maximum dc voltage meas.1000 V dc
Maximum Frequency Measu.40 MHz
Maximum Operating Tempe.104 Degrees F
Maximum Resistance Meas.40 megaohm
Maximum Storage Tempera.140 Degrees F
Maximum Temperature Mea.1,382 Degrees F
measurement functions:AC Current, DC Current
Minimum AC Current Meas.0.1 uA
Minimum AC Voltage Meas.1 V
Minimum Capacitance Mea.0.01 nF
Minimum DC Current Meas.0.1 uA
Minimum DC Voltage Meas.0.1 V
Minimum Frequency Measu.0.001 Hz
Minimum Operating Tempe.41 Degrees F
Minimum Resistance Meas.0.1 ohm
Minimum Storage Tempera.-4 Degrees F
Minimum Temperature Mea.-4 Degrees F
Minimum/Maximum MemoryYes
Mirrored ScaleNo
Multimeter StyleFull Size
Net Weight3 lbs
NIST Certification ByFLIR
NIST Certification By M.FLIR
NIST CertifiedYes
Number of Displayed Dig.4
Overall Height7.3 in
Overall Width3.3 in
Parameters MeasuredAC Current, AC Voltage,.
Peak HoldYes
power source:Battery
probe type:Probe Leads
Promotion RestrictionNot eligible for promot.
Pulse WidthYes
Removable ScreenNo
Resistance0.1?to 40M?
Resistance Measurement .+/-0.3%
Resistance Measurement .0.1 ohm
Resolution4.5
safety category:CAT IV 600V, CAT III 10.
Software IncludedNo
Special Features1000V Input Protection .
StandardsCE, CUL
Temp. Range-50 Degrees to 1382 De.
Temperature Measurement.+/-3%
Temperature Measurement.1 Degrees F
Temperature ReadingsYes
Thermal ImagerNo
Thermal ImagingNo
True RMSYes
TypeHandheld, Digital
UPC Code793950395219
WaterproofYes
Weight12.3oz (349g), 12.3 oz
weight:12.3 oz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomvaluetronics.comEXTECH_EX520-NIST_NEW240.311In StockExtech240.31 @ 1
thumbzoomindustrialstores.comEX520-NIST259.61In StockExtech259.6 @ 1
globaltestsupply.comEX520-NIST263.991In Stock19Extech Instruments263.99 @ 1
us.rs-online.com70117536267.751In StockFLIR Commercial Systems, Inc. - Extech Division267.75 @ 1
TranscatEX520-NIST267.991In StockEXTECH267.99 @ 1
Platt.com1298029267.991In StockExtech267.99 @ 1
thumbzoomvaluetesters.comQVT-2007101409010530514271.991In StockExtech271.99 @ 1
thumbzoomNewark99K5788271.991In StockEXTECH INSTRUMENTS271.99 @ 1
thumbzoomMegadepotEX520-NIST271.991In StockExtech0.76875271.99 @ 1
thumbzoomjensentools.com43432.1271.991In StockExtech271.99 @ 1
thumbzoomusmegastore.comEX520-NIST271.991In StockExtech0.76875271.99 @ 1
thumbzoomZoroG8041433275.991In StockExtech275.99 @ 1
thumbzoommotionindustries.com03179783278.21In StockExtech Instruments278.2 @ 1
thumbzoomGalcoEX520-NIST-EXTC284.541In StockExtech Instruments3.0284.54 @ 1
grainger.caEXTEX520NIST309.08448511In StockEXTECH1.7309.0844851 @ 1
thumbzoomRaptor SuppliesAC8XHC421.1962561In StockEXTECH421.196256 @ 1
