- mpn174528
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

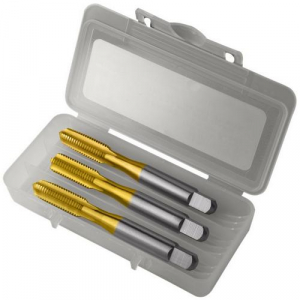

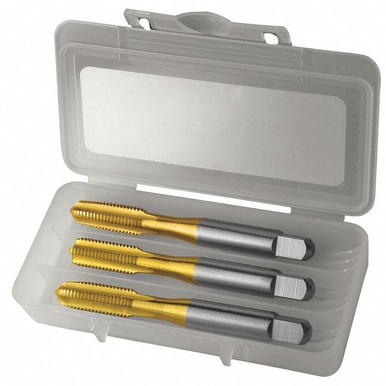

Tap Set, Inch, 3/8"-16 Thread Size, 3 pcs.
- Brand: Greenfield Threading
- PartNumber: 174528
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: GREENFIELD THREADING
- Label: GREENFIELD THREADING
Attributes
| Key | Value |
|---|
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer | Bottoming/Plug/Taper |
| Class of Fit | 3B |
| Color | Grey |
| Current Stock | 97 |
| Cutting Direction | Right Hand |
| Diameter | 0.3750" |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Includes | 3/8-16 UNC, Taper, Plug. |
| International Shipping | No |
| Item | Tap Set |
| Length of Cut | 2 in |
| List Number | HTGP |
| Material | HSS, High-Speed Steel, . |
| Measurement System | Imperial |
| Mpn | 174528 |
| Number of Flutes | 4 |
| Number of Pieces | 3 |
| Overall Length | 2.9400", 2 15/16 in, 2.. |
| Overall Length (Metric) | 74.68mm |
| Package Quantity | 3 pieces per set |
| Package Type | Rose Plastic UniBox |
| Pitch Diameter Limit | H3 |
| Product Type | Hand Tap Set |
| Series | HTGP |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 3/8 in |
| Shank Diameter | 0.381 in |
| Shank End | Square |
| Shank Size | 0.3810", 0.381 in |
| Shank Size (Metric) | 9.68mm |
| Shank Square Length | 0.4375" |
| Shank Square Length (Me. | 11.11mm |
| Shank Square Width | 0.2860" |
| Shank Square Width (Met. | 7.26mm |
| Size | 3/8-16 |
| SKU | ZO-G7685310 |
| Square Size | 0.4375 in L x 0.286 in W |
| Standards | USCTI 302 |
| Style | HTGP-3PC-TN |
| SubCategory | Machining/Threading |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Blank Construction | USCTI Table 302 |
| Tap Chamfer | Taper-Plug-Bottoming, B. |
| Tap Construction | Taper-Plug-Bottoming, S. |
| Tap Dimension Type | Inch |
| Tap Finish | TiN |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap Set |
| Tap Interrupted Thread | No |
| Tap Limit | H3 |
| Tap Material | High Speed Steel |
| Tap Neck Length | 0.5100", 0.51 in |
| Tap Spiral Point | No |
| Tap Style | Straight Flute (Hand), . |
| Tap Thread Size | 3/8"-16 |
| Tap Thread Type | UNC |
| Tap Truncated Threads | No |
| Tap Type | Hand Tap |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | UNC |
| Thread Length | 0.75 in, 0.7500", 3/4 in |
| Thread Length (Metric) | 19.05mm |
| Thread Limit | H3, 2B |
| Thread Pitch | 16 |
| Thread Size | 3/8", 3/8-16 UNC |
| Thread Standard | UNC |
| Tool Size | 3/8-16 UNC |
| Type | Standard Straight Flute. |
| UPC | 093367745288 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6107553 | 28.17 | 2 | In Stock | | Greenfield Threading | | 28.17 @ 2 |
 | usmegastore.com | 174528 | 30.82 | 1 | In Stock | | Greenfield Threading | | 30.82 @ 1 |
 | heavydutydepot.com | 174528 | 30.82 | 4 | In Stock | | Greenfield Threading | | 30.82 @ 4 |
 | rshughes.com | 933677-45288 | 31.45 | 1 | In Stock | 35 | Greenfield Threading | | 31.45 @ 1 |
 | Zoro | G7685310 | 34.55 | 1 | 133 | | Greenfield Threading | 0.24 | 34.55 @ 1 |
 | Megadepot | 174528 | 34.68 | 1 | In Stock | | Greenfield Threading | | 34.68 @ 1 |
 | sustainablesupply.com | C2782160 | 38.26 | 1 | In Stock | | Greenfield Threading | 0.24 | 38.26 @ 1 |
| grainger.ca | GNF174528 | 44.26690794 | 1 | In Stock | | GREENFIELD THREADING | 99.79 | 44.26690794 @ 1 |
 | simsupply.com | ZO-G7685310 | 46.86 | 1 | 97 | | Greenfield Threading | | 46.86 @ 1 |
 | National Supply Network | 59036657 | 66.8 | 1 | In Stock | | Greenfield Threading | | 66.8 @ 1 |
