Hayward BFAS3007TFS

mpnBFAS3007TFS
brandname: Hayward
manufacturername: Hayward

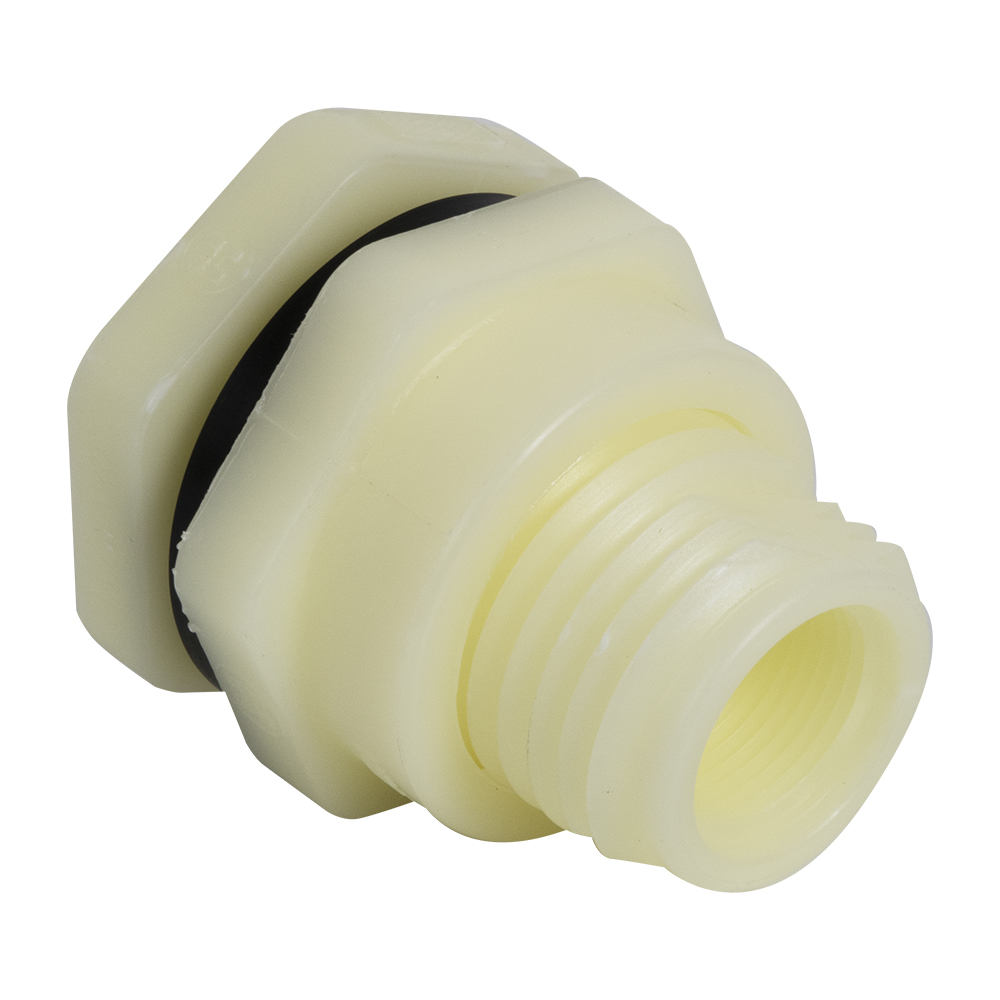

Hayward BFAS3007TFS Series BFAS Short Pattern Bulkhead Fitting, Threaded x Threaded End, PP with FPM Seals, 3/4" Size

Hayward BFAS3007TFS Series BFAS Short Pattern Bulkhead Fitting, Threaded x Threaded End, PP with FPM Seals, 3/4" Size

zoom

Brand: Hayward
PartNumber: BFAS3007TFS
Model: BFAS3007TFS
Size: 0.75 Inch
PackageQuantity: 1
Binding: Misc.
Manufacturer: Hayward Industries, Inc.
Label: Hayward Industries, Inc.

Attributes

Key	Value
Basic Pipe Fitting Mate.	Plastic
Body Material	Polypropylene
Brand	Hayward
Catalog Page Number	P-319
Color	White
Configuration	FNPT
Connection Type	Bulkhead Tank Fitting, .
Country of Origin	China
Current Stock	9
Description:	3/4" PP Bulkhead Fittin.
Domestic/Import	Domestic
End Style	Thread
Fitting Connection Type	FNPT x FNPT
Fitting Material	Polypropylene
Fitting Material Finish	Not Applicable
Fitting/Connector Type	Connector
Gasket Material	FPM
Hex Size	2.38 in
Hole Size	1.63 in
Inside Connection	3/4 in Female Threaded
Inside Connection Size	3/4 in
International Shipping	No
Item	Bulkhead Tank Fitting
Item Number	16712
Lead Time	Expected to ship in 1-2.
Length	2-3/4 in, 2 7/8 in
Manufacturer	HAYWARD INDUSTRIAL PROD.
Manufacturer Part #	BFAS3007TFS
Material	Polypropylene
Max. Pressure	150 psi
Max. Wall Thickness	1.08 in
Maximum Operating Press.	150 psi @ 70 Degrees F
Maximum Operating Tempe.	180 Degrees F
Maximum Wall Thickness	1 5/64 in
MFG Part #:	BFAS3007TFS
Mpn	BFAS3007TFS
Nominal Size	3/4 in
Outside Connection Size	3/4 in
Overall Length	2-7/8"
Pipe Fitting Material	Polypropylene
Pipe Size	3/4 in
Pipe Size - Pipe Fitting	3/4"
Pressure Rating	150 psi
Required Hole Size	1-5/8"
Series	BFAS
Size	3/4"
SKU	ZO-G4023187
Standard Pack:	Order QTY must be in mu.
Supplier:	HAYWARD INDUSTRIAL PROD.
Temp. Range	40 Degrees to 180 Degr.
Temperature Rating	70 deg F
Thickness	1.08 in
UPC	610377137027
UPC:	610377137027
Weight	0.243 lbs

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G4023187	40.79	1	29		Hayward	0.25	40.79 @ 1
	sustainablesupply.com	C2783420	46.69	1	In Stock		Hayward	0.25	46.69 @ 1
	simsupply.com	ZO-G4023187	54.25	1	9		Hayward		54.25 @ 1
	blackhawksupply.com	BFAS3007TFS	54.64	1	In Stock		Hayward		54.64 @ 1
	usplastic.com	16712	57.75	1	In Stock		Hayward	0.243	57.75 @ 1
	Raptor Supplies	AA4ZPY	67.7449305	1	In Stock		HAYWARD		67.7449305 @ 1
	kscdirect.com	HAY BFAS3007TFS	75.66	1	In Stock		HAYWARD INDUSTRIAL PRODUCTS		75.66 @ 1
