Leeson 100208.00

mpn100208.00
brandname: Leeson
manufacturername: Leeson

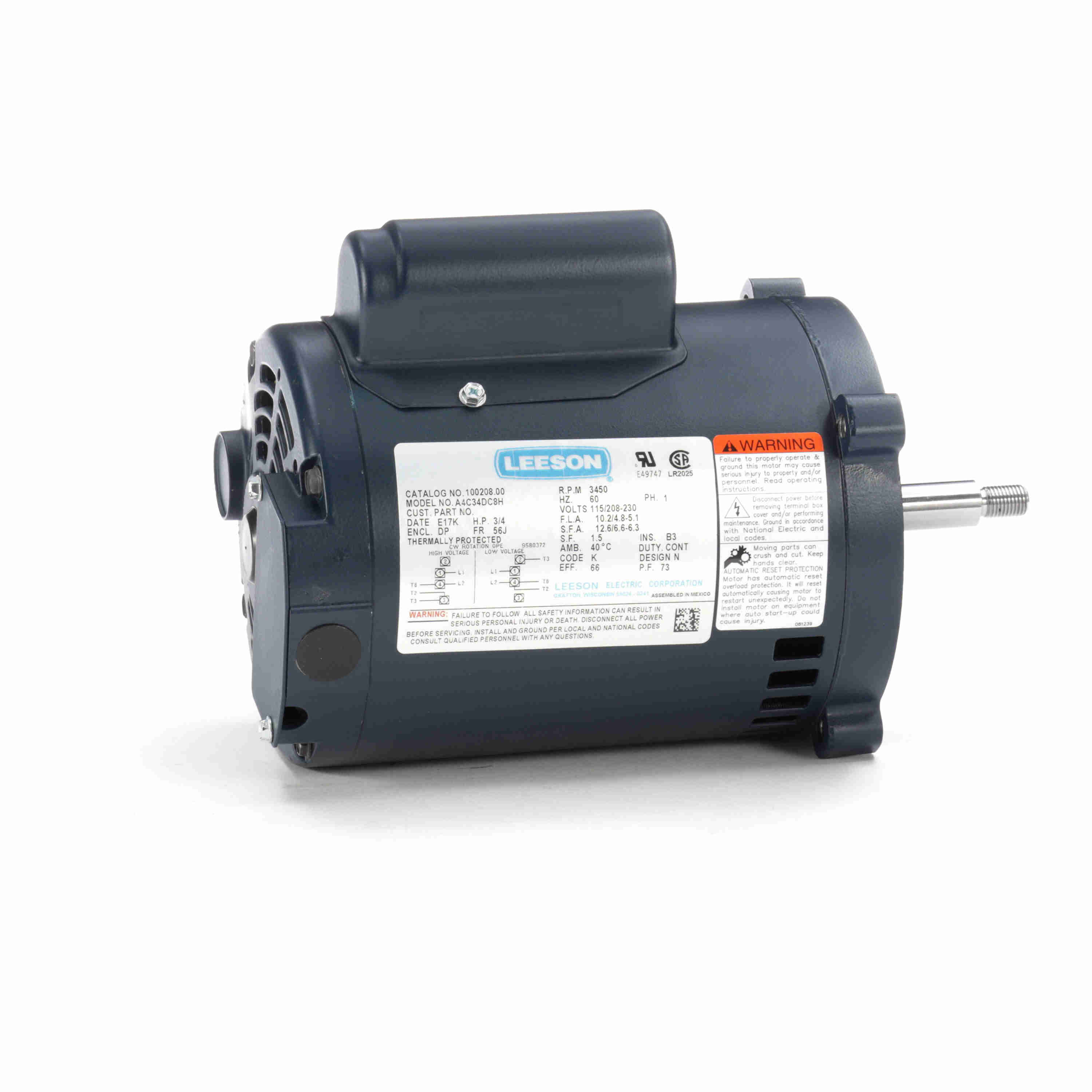

Leeson 100208.00 Jet Pump Motor, 1 Phase, S56J Frame, Round Mounting, 3/4HP, 3600 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 100208.00 Jet Pump Motor, 1 Phase, S56J Frame, Round Mounting, 3/4HP, 3600 RPM, 115/208-230V Voltage, 60Hz Fequency

zoom

Brand: Leeson
PartNumber: 100208.00
Model: A4C34DC8H
Size: 1 Phase
PackageQuantity: 1
Binding: Misc.
Manufacturer: Leeson
Label: Leeson

Attributes

Key	Value
Alternate Mfr Part Numb.	A4C34DC8H
Amperage Rating	10.2/4.8 to 5.1 A
Application Type	Jet Pump (JM/JP) Motors
Approvals	CSA, UL
Bearing Type	Ball, 10.5
Category	Electric Motor
Class/Group	A4C34DC8
Composition	Steel
Current Rating	10.2 ; 4.8 to 5.1 A
Description:	3/4HP..3450RPM.56.DP.11.
Dimensions	5.62 in Dia x 10.5 in L.
Duty Cycle	Continuous
Efficiency	66 %
Enclosure	ODP, Drip Proof, DP
Enclosure Type	Drip Proof, DP
Family Series	Leeson Motors, Pump Dut.
Frame	56J, 56
Frame Remarks	FOOTLESS
Frequency	60 Hz
Frequency Rating	60 Hz
Gross Weight	0 lbs
Horsepower	0.75 HP, 3/4 hp
Horsepower Rating	0.75 HP
HP	3/4, 0.75
Hz	60
Insulation Class	Class B
Insulation Type	Class B
Item Condition	FACTORY NEW
Item Number	100208.00
Manufacturer	LEESON ELECTRIC CORPORA.
Manufacturer Part Number	100208.00
Material	Rolled Steel
MFG Part #:	100208.00
Model Number	A4C34DC8
mounting	C-face (NO base)
Mounting Type	Round/C-Face/Footless/F.
NEMA Frame	S56J
Net Weight	21 lbs
Nominal Voltage	208 VAC, 240 VAC
Number of Poles	2
Number of Speeds	1
Overall Length	10.5 "
Phase	1, 1 Phase, 1 ph
Product Series	Pump Duty
Rotation	Fixed CW
RPM	3450 RPM, 3600, 3400 - .
Service Factor	1.5
Shaft Diameter	UL;CSA
Shaft Size	0.63 in Dia x 2.44 in L
Special Features	Service Factor - 1.5, C.
Standards	UL Recognized
Supplier:	LEESON ELECTRIC CORPORA.
Supply Voltage	115/208-230 VAC
Type	Capacitor Start Inducti.
UPC Code	691720004708
UPC:	691720004708
Voltage	115
Volts	115/208/230

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AmazonTP	B0773VD4ZK	219.51	1	In Stock	3	Leeson Electric		219.51 @ 1
	Dealers Electric	100208.00	268.89	1	In Stock		Leeson	20.0	268.89 @ 1
	Walker Industrial	100208-00	359.47	1	In Stock	17	Leeson		359.47 @ 1
	Raptor Supplies	AJ2PHG	377.865423	1	In Stock		LEESON		377.865423 @ 1
	us.rs-online.com	72239467	430.71	1	In Stock		Leeson		430.71 @ 1
	Galco	100208.00-LEES	435.54	1	In Stock		Leeson	21.0	435.54 @ 1
	kscdirect.com	LEE 100208.00	511.23	1	In Stock		LEESON ELECTRIC CORPORATION		511.23 @ 1
