Marathon Electric GT1203

B006KM6H1I

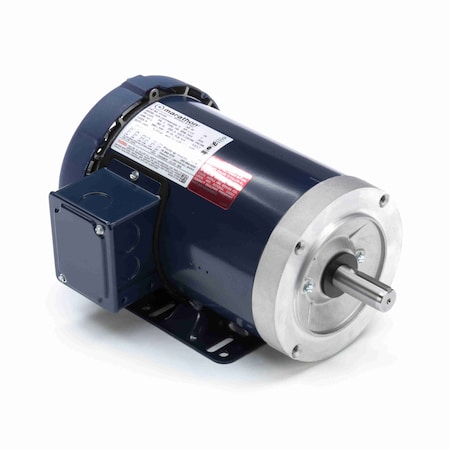

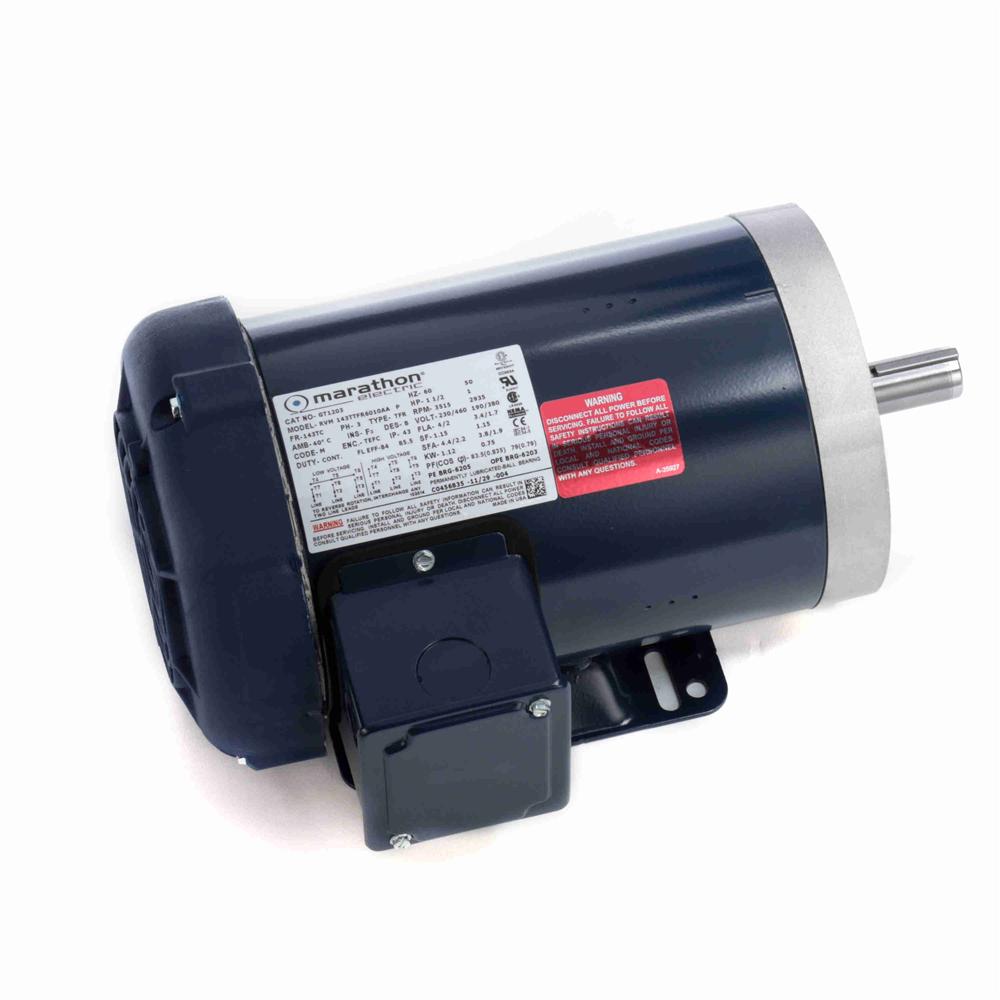

Marathon GT1203 143TC Frame 143TTFR6010 TEFC General Purpose Motor, 3 Phase, C-Face with Base, Ball Bearing, 1-1/2 hp, 3600 RPM, 1 Speed, 208-230/460 VAC

Marathon GT1203 143TC Frame 143TTFR6010 TEFC General Purpose Motor, 3 Phase, C-Face with Base, Ball Bearing, 1-1/2 hp, 3600 RPM, 1 Speed, 208-230/460 VACzoom

Attributes

Key Value
Alternate Mfr Part Numb.143TTFR6010
Amps4/2, 4.0/2.0
BearingsBall
BrandMarathon
C-Dimension13.37 (in.)
Catalog NumberGT1203
CEY
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.84
Electrical TypeSquirrel Cage Induction.
EnclosureTEFC
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Frame143TC
Frame MaterialRolled Steel
Frame Type143TC
Frequency60
Gross Weight0 lbs
HP1 1/2, 1-1/2
Hz60
Insulation ClassF
IP Code43
KVA CodeM
Manufacturer Model #143TTFR6010
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor OrientationHorizontal
Motor Shell Length8.06"
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid Base
Number of Speeds1
ODE Bearing TypeBall
Overall Length13.37"
Phase3
Product CategoryGeneral Purpose NEMA Ge.
Product TypeThree Phase
RotationReversible
RPM3400 - 3600, 3515
RPM (Nameplate)3515
RPM (Number of Poles)2 (1801 RPM to 3600 RPM)
Service Factor1.15
Shaft Diameter7/8 (in.), 7/8"
Shaft Extension2.12 (in.)
Shaft Length2.12"
Shaft TypeT
Ship Weight63 lbs.
Speeds1
Type of Overload Protec.No
ULRecognized
Voltage230/460
Volts230, 460, 230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comGT1203229.01In StockMARATHON229.0 @ 1
thumbzoomapexindustrialautomation.comGT1203322.671In StockMarathon322.67 @ 1
AmazonB006KM6H1I328.761In Stock42Marathon Electric328.76 @ 1
thumbzoomGalcoGT1203-MARA331.161In StockMarathon Electric331.16 @ 1
thumbzoomMRO Supply2268095332.911In StockMarathon Electric332.91 @ 1
thumbzoomDreisilkerMA-RBC-GT1203370.111In StockMarathon370.11 @ 1
us.rs-online.com72649940373.011In StockMarathon Motors373.01 @ 1
thumbzoomemotorpro.comGT1203382.541In StockMarathon63.0382.54 @ 1
thumbzoomNational Supply NetworkB871559412.941In StockMARATHON MOTORS412.94 @ 1
thumbzoomGlobal IndustrialWBB871559419.951In StockMarathon Motors419.95 @ 1
thumbzoommidwestapplianceparts.comGT1203-MT-P422.151In StockMarathon422.15 @ 1
thumbzoomindustrialstores.comGT1203455.191In Stock10Marathon Motors455.19 @ 1
AmazonTPB006KM6H1I463.061In Stock5Marathon Electric463.06 @ 1
thumbzoomZoroG602060805483.131In Stock10Marathon483.13 @ 1
