Marathon GT1207

B006KM5S7C

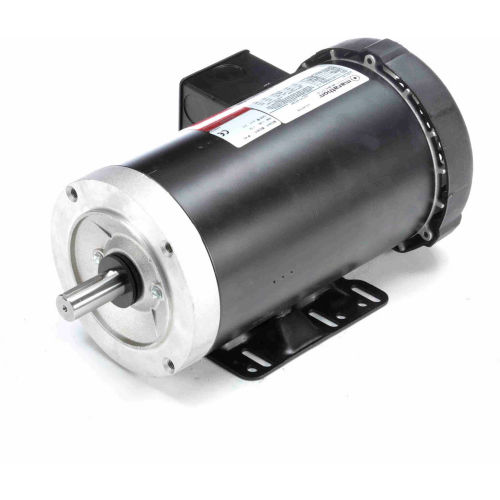

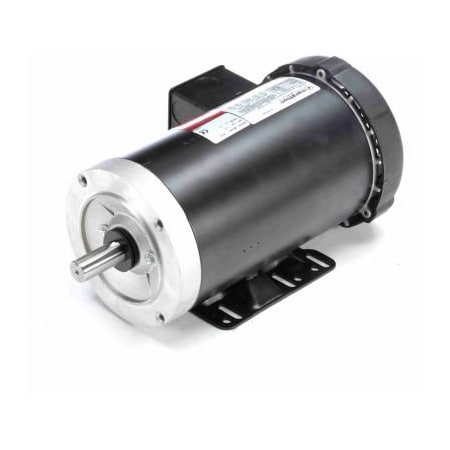

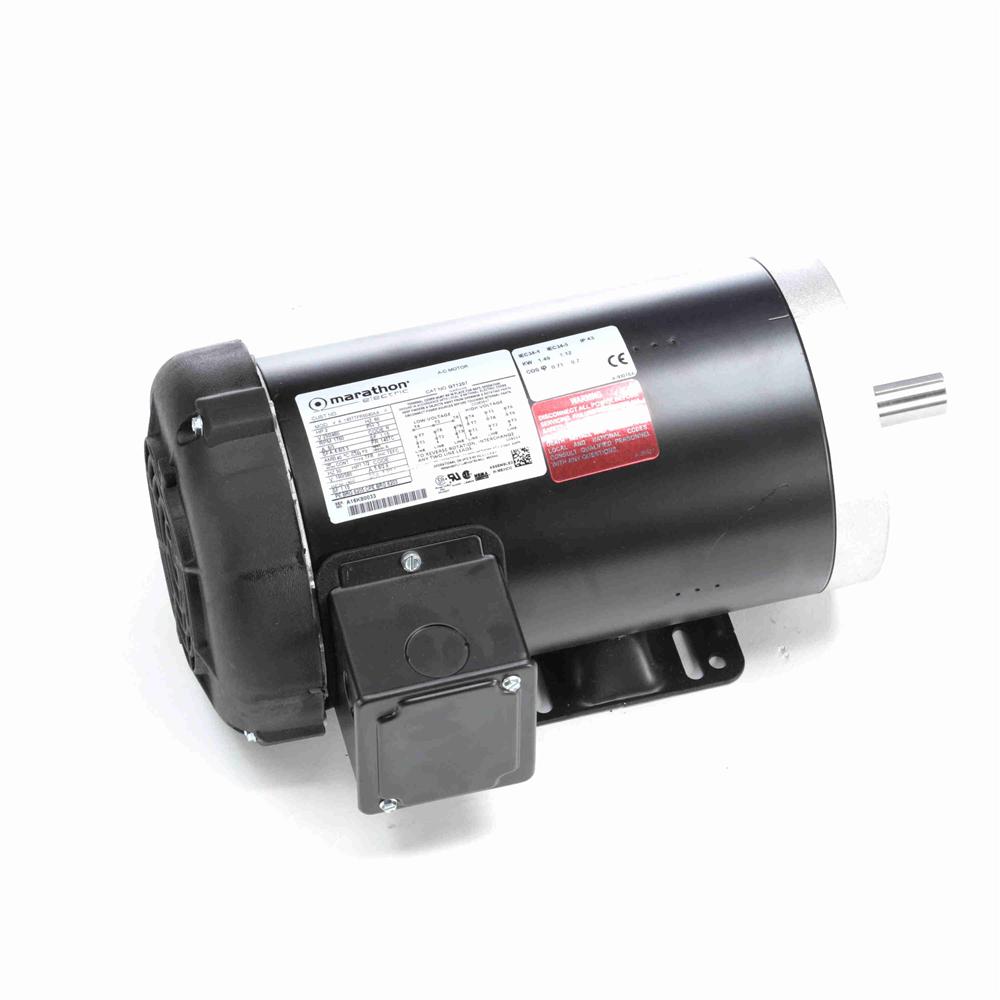

Marathon GT1207 145TC Frame 145TTFR6040 TEFC General Purpose Motor, 3 Phase, C-Face with Base, Ball Bearing, 2 hp, 1800 RPM, 1 Speed, 208-230/460 VAC

Marathon GT1207 145TC Frame 145TTFR6040 TEFC General Purpose Motor, 3 Phase, C-Face with Base, Ball Bearing, 2 hp, 1800 RPM, 1 Speed, 208-230/460 VACzoom

Attributes

Key Value
Alternate Mfr Part Numb.145TTFR6040
Amps6/3, 6.0/3.0
BearingsBall
BrandMarathon
C-Dimension14.87 (in.)
Catalog NumberGT1207
CEY
CSAY
Current Rating6.0 ; 3.0 A
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.865, 86.5
Electrical TypeSquirrel Cage Induction.
EnclosureTEFC
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Family SeriesMarathon Electric Misce.
Frame145TC
Frame MaterialRolled Steel
Frame Type145TC
Frequency60, 60/50 Hz
Gross Weight0 lbs
Horsepower Rating2 HP
HP2
Hz60
Insulation ClassF
Insulation TypeClass F
IP Code43
Item NumberGT1207
KVA CodeN
ManufacturerMarathon Electric
Manufacturer Model #145TTFR6040
Manufacturer Part Number145TTFR6040
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor OrientationHorizontal
Motor Shell Length9.56"
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid Base
Net Weight49 lbs
Number of Speeds1
ODE Bearing TypeBall
Overall Length14.87"
Package Quantity1
Phase3, 3 Phase
Product CategoryGeneral Purpose NEMA Ge.
Product TypeThree Phase
RotationReversible
RPM1760 RPM, 1760, 1700 - .
RPM (Nameplate)1760
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.15
Shaft Diameter7/8 (in.), 7/8"
Shaft Extension2.12 (in.)
Shaft Length2.12"
Shaft TypeT
Ship Weight49 lbs.
Special FeaturesService Factor - 1.15
Speeds1
StandardsUL Recognized
Supply Voltage230 VAC ; 460 VAC
TypeSquirrel Cage Induction.
Type of Overload Protec.No
ULRecognized
UPC Code722856001382
Voltage230/460
Volts230, 460, 230/460
