Molex / Waldom 90325-0018

mpn0903250018
brandname: Molex
manufacturername: Molex

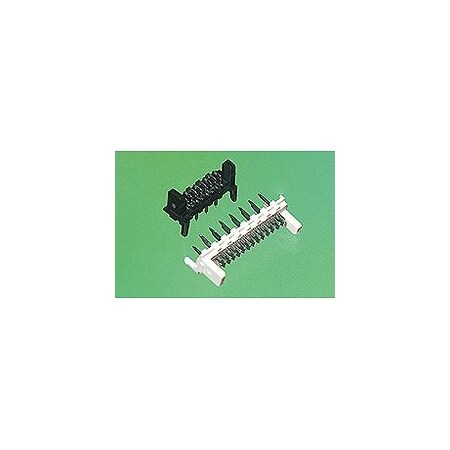

90325-0018, Conn Picoflex HDR 18 POS 1.27mm Solder ST Thru-Hole Picoflex Bag (100 Items)

90325-0018, Conn Picoflex HDR 18 POS 1.27mm Solder ST Thru-Hole Picoflex Bag (100 Items)

zoom

Brand: Molex / Waldom
PartNumber: 90325-0018
Model: 90325-0018
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	903250018
Applications	Automotive, General Pur.
Color	Black
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Finish Thicknes.	-
Contact Length - Mating	-
Contact Length - Post	0.130" (3.30mm)
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Blade
Current Rating	1.2 A
Current Rating (Amps)	1.2A
Family Name	Picoflex
Fastening Type	Push-Pull
Features	Board Lock
Flammability Rating	UL 94V-0
Hole Center to Center	1.27 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.252" (6.40mm)
Insulation Material	Polybutylene Terephthal.
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	230?C
Max. Voltage	250V
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	18
Number of Contacts	18
Number of Positions	18
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-40?C ~ 105?C
Orientation	Vertical
Overall Contact Length	-
Part Status	Active
Pitch	1.27 mm (0.050")
Pitch - Mating	0.050" (1.27mm)
Plating Material	Tin
Primary Type	Board Mount
Row Spacing - Mating	-
Series	90325 Series
Shrouding	Shrouded - 2 Wall
Special Features	Not Low-Halogen
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Type	Through Hole
Termination	Solder, Through Hole
Type	Plug
Voltage Rating	250V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 90325-0018	0.282	188	10948		MOLEX		0.282 @ 188
	Onlinecomponents.com	90325-0018	0.41	1	9033		MOLEX / WALDOM		0.41 @ 50
	Hotenda	H1300547	0.597	1	50		Molex		0.597 @ 50
	jensentools.com	10198440	0.61	1	8095		Molex		0.61 @ 50
	us.rs-online.com	70374171	0.64	1	50		Molex Incorporated		0.64 @ 50
	Newark	94M3177	0.822	1	50		MOLEX		0.822 @ 50
	RS Delivers	670-6085P	1.146	1	455		Molex		1.146 @ 50
	Zoro	G905891113	90.24	1	50		Molex		90.24 @ 50
