Schneider Electric ATS48C14Y

B00CONIJYU

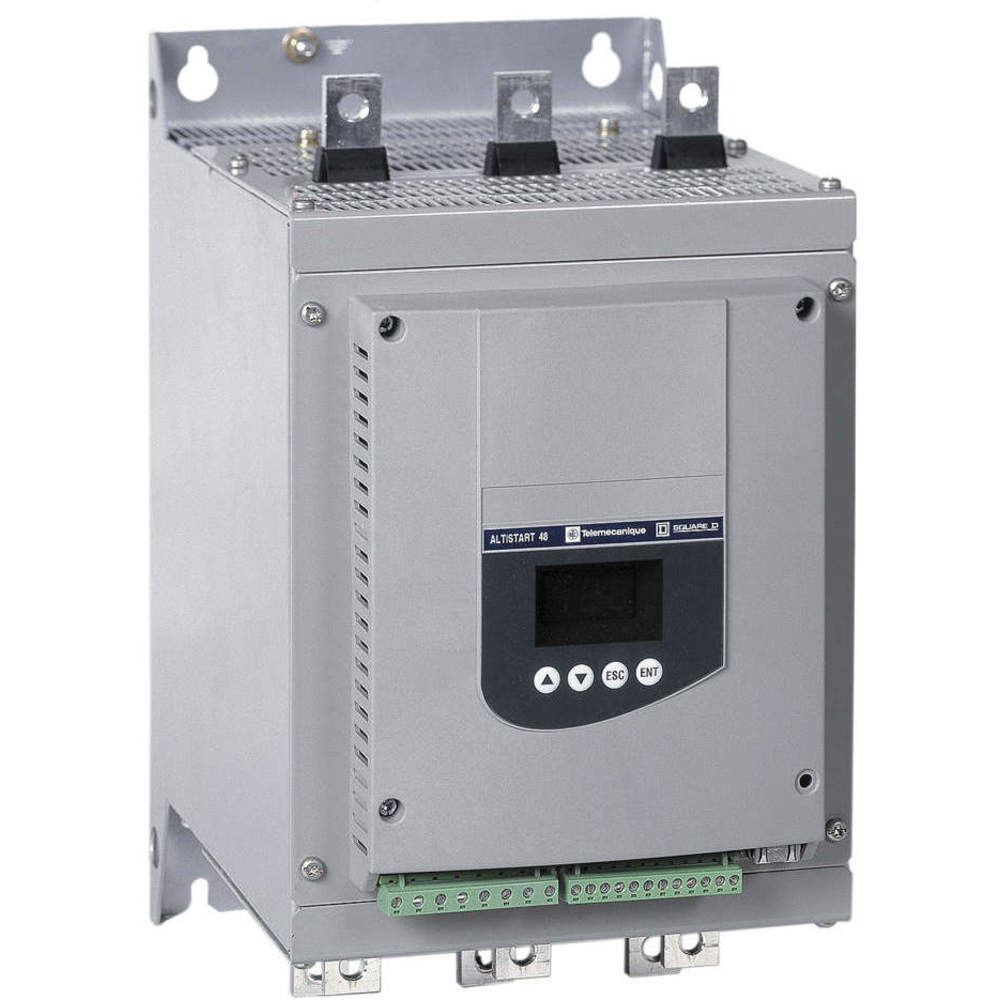

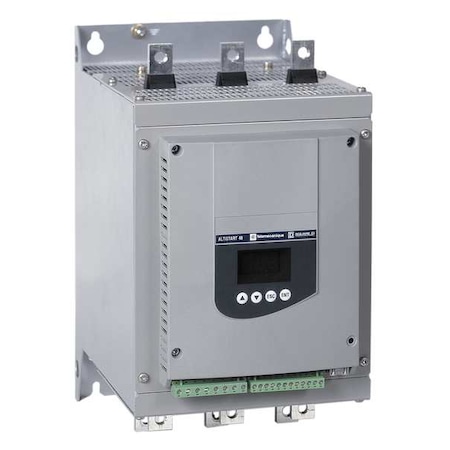

SCHNEIDER ELECTRIC ATS48C14Y Soft Start 208-690V AC140a Ats48

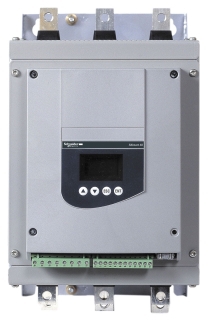

SCHNEIDER ELECTRIC ATS48C14Y Soft Start 208-690V AC140a Ats48zoom

Attributes

Key Value
ambient air temperature.40?60 ?C (with current .
ambient air temperature.-25?70 ?C
analogue output typeCurrent output AO: 0-20.
ApplicationHeavy Duty Industry, Pu.
assembly styleWith heat sink
California proposition .WARNING: This product c.
China RoHS RegulationChina RoHS declaration
Circularity ProfileEnd of Life Information
communication data linkSerial
Communication PortModbus
communication port prot.Modbus
connector type1 RJ45
Control Voltage110 to 230V AC, 110 to .
Current Rating124 A
Depth10.43 in
depth265 mm
device connectionIn the motor supply line
device short nameATS48
discrete input logicPositive logic Stop, Ru.
discrete input number5
discrete input typePTC, 750 Ohm at 25 ?C
discrete input voltage24 V <= 30 V
discrete output number2
discrete output type(LO1) logic output 0 V .
Display3 Seven -Segment display
electromagnetic compati.Conducted and radiated .
Enclosure RatingIP20, NEMA 1
Enclosure TypeIP00
Environmental DisclosureProduct Environmental P.
Frequency50/60 Hz
function availableExternal bypass (option.
Function TypeStart or Stop
height340 mm
Height13.39 in
Horsepower Rating75 HP
HP @ 3 Phase - 208V40 hp
HP @ 3 Phase - 230V50 hp
HP @ 3 Phase - 240V50 hp
HP @ 3 Phase - 460V100 hp
HP @ 3 Phase - 480V100, 100 hp
HP @ 3 Phase - 575V125 hp
Icl nominal current140 A for connection in.
Input Voltage208 to 690V AC
Inputs/Outputs4 Logic Inputs, 1 PTC P.
IP Rating20
ItemSoft Start
markingCE
max nodes number31
Maximum Operating Tempe.+40 ?C
maximum switching curre.Logic output 0.2 A at 3.
Mercury freeYes
Minimum Operating Tempe.-10 ?C
minimum switching curre.10 mA at 6 V DC for rel.
motor power hp100 hp at 460 V for sta.
motor power kW110 kW at 660 V for sta.
Motor power range AC-330?50 kW at 200?240 V 3.
motor starter typeSoft starter
Mounting TypePanel Mount
net weight12.4 kg
noise level50 dB
Number of Units in Pack.1
operating altitude<= 1000 m without derat.
operating positionVertical +/- 10 degree
output absolute accurac.+/- 5 %
Output Current140 A
Output Power100 hp @ 3 Phase, 460V .
Output Voltage208 to 690V AC
Overall Depth265 mm, 10.43 in
Overall Dimensions340 x 200 x 265 mm
Overall Height13.39 in
Overall Length340 mm
Overall Width200 mm, 7.87 in
Package 1 Height34 cm
Package 1 Length46 cm
Package 1 Weight14.892 kg
Package 1 width43 cm
PhaseThree, 3 Phase
physical interfaceRS485 multidrop
power dissipation in W306 W for standard appl.
Power Rating110 kW
power supply frequency50?60 Hz ? 5?5 %
power supply frequency .47.5?63 Hz
power supply voltage208?690 V ? 15?10 %
Primary TypeSoft Start
product certificationsUL
product destinationAsynchronous motors
product or component ty.Soft starter
product specific applic.Heavy duty industry and.
protection typePhase failure: line
Ramp Time1 to 60 sec.
range of productAltistart 48
REACh RegulationREACh Declaration
relative humidity0?95 % without condensa.
RoHS exemption informat.Yes
SeriesAltistart ATS 48 Series
Size340 H x 200 W x 265 Dia.
Special FeaturesExternal Bypass
standardsEN/IEC 60947-4-2
StandardsC-tick, CCC, CSA Certif.
Start TypeTorque Control Start
starting current0.4?1.3 Icl adjustable
Starting Torque0% to 400%
Stop Time1 to 60 sec
Supply Voltage208 to 690 V
Sustainable offer statusGreen Premium product
Temperature Operating R.-10 to +40 ?C
transmission rate4800, 9600 or 19200 bps
TypeSoft Start
type of startStart with torque contr.
Unit Type of Package 1PCE
UPC Code785901982364
utilisation categoryAC-53A
WEEEThe product must be dis.
Width7.87 in
width200 mm
With Bypass / No BypassNo Bypass
