Schneider Electric HDA260802

B00CONGS8O

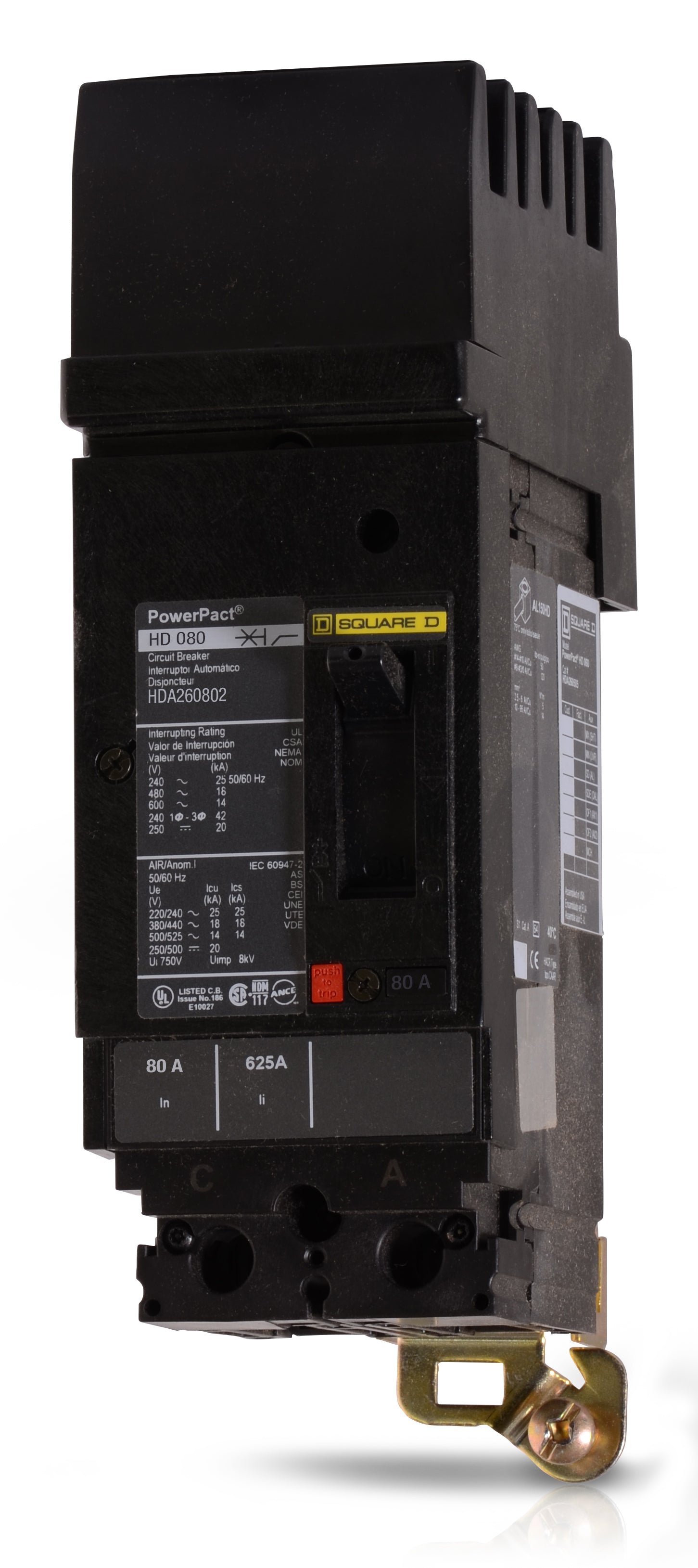

SCHNEIDER ELECTRIC 600-VOLT 80-AMP HDA260802 Molded CASE Circuit Breaker 600V 80A

SCHNEIDER ELECTRIC 600-VOLT 80-AMP HDA260802 Molded CASE Circuit Breaker 600V 80Azoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating690V AC
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage80
Amperage Rating80
Amps80 A
ApplicationHACR rated Applications.
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDA260802
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatortoggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.I-Line Bracket
Circularity ProfileENVEOLI2206027EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection TypeI-Line Style Plug-In
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States, US - Uni.
Current Rating80A
Depth86 mm
Device Applicationdistribution
DisplayHDA260802 Circuit break.
ECCNEAR99
Electrical ConnectionI-Line connection, line.
Environmental DisclosureENVPEP2206027EN
Eu Rohs DirectiveCompliant
FeaturesMercury Free; PVC Free
FrameD
Frame SizeH
Frame TypeH, H-Frame
FunctionsLI - Long-Time and Inst.
Gtin785901750369
Height163 mm, 3 in., 6.42
High Amp Trip Setting1450 A
Interrupt Rating14kA, 25 kA at 220/240V.
Interrupting Rating25kAIC at 240VAC, 18kAI.
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemCircuit breaker,PowerPa.
Item Typecircuit breaker
Length16 mm, 4.8 IN
Line Rated Current80-80 A
Local Signallingswitched off (OFF) 1 tr.
Made in USAYes
Magnetic Hold Current800 A
Magnetic Tripping Curre.1450-1450 A
ManufacturerSchneider Electric
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Mercury FreeYes
Min. Wire Size14 AWG (Cu/Al)
Mounting Height3 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
Mounting TypeI-Line
MpnHDA260802
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles2
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase1
Phase ConnectionAC
Poles2
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
ProtectionThermal Magnetic
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHDA
Special FeaturesI-Line
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionI-Line, Lug
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range1450 A,80 A,800 A
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
UNSPSC39121616
Upc785901750369
UPC785901750369
Utilisation Categorycategory A
Voltage600
Voltage Rating250 V DC-600 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width104 mm, 4.09
Wire Stripping Length16 mm
