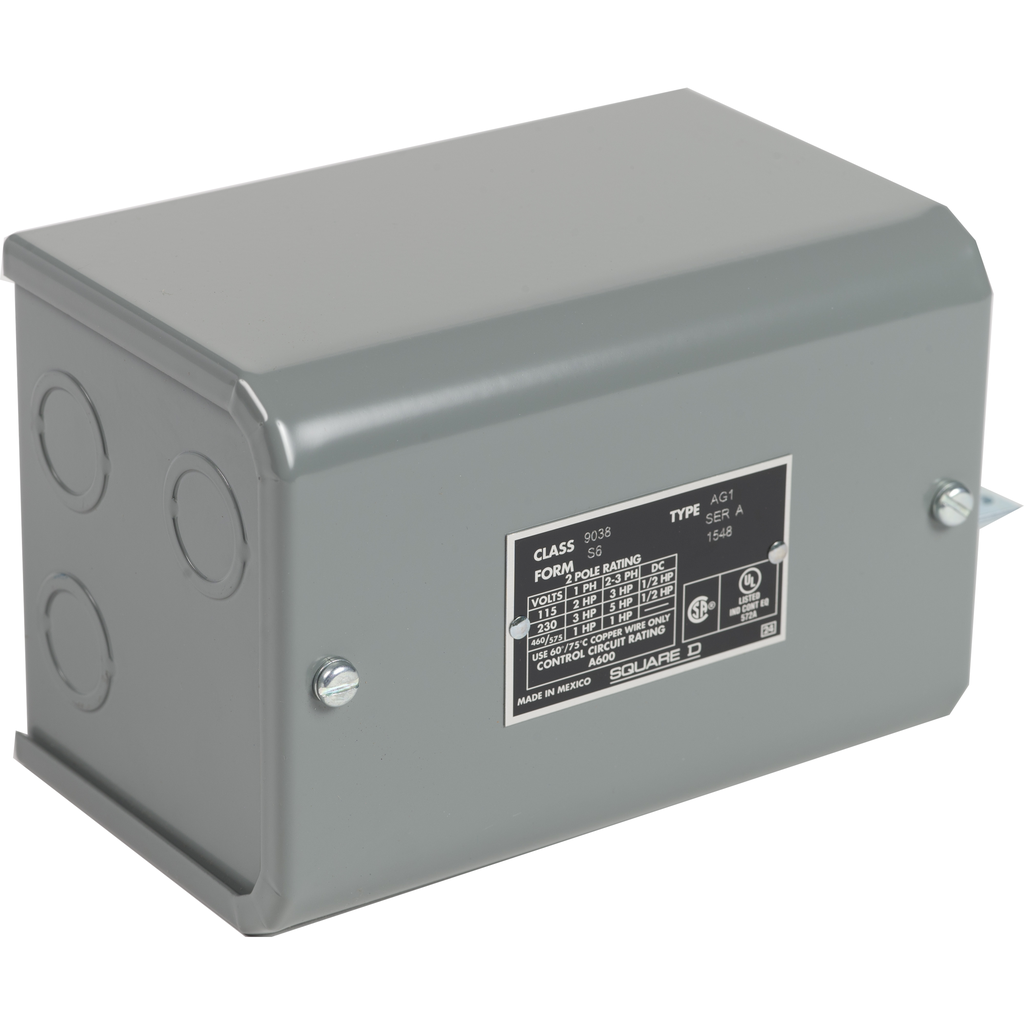

Square D by Schneider Electric 9038AG1S6

B007IBBF94

Alternator Lqd Lvl Swch,Vrtcl Open Tank

Alternator Lqd Lvl Swch,Vrtcl Open Tankzoom

Attributes

Key Value
Amps10 A
ApprovalsCE, UL
Body MaterialSteel
California Proposition .Diisononyl phthalate (D.
CategorySensors, Transducers
Circularity ProfileENVEOLI111210EN
ConditionNew
Conduit Size4 1/2 in, 4 3/4 in
Connection TypeScrew Terminals
Contact FormDPST
ContactsDPST-NO
Country of Origin (subj.Mexico
DescriptionFLOAT SWITCH 575VAC 1HP.
Detailed DescriptionLiquid Level Sensor Swi.
Device Short NameA
Digi-Key Part Number4008-9038AG1S6-ND
Electrical Connectionscrew clamp terminal
Electrical ConnectionsScrew Clamp
Enclosure Typestandard environment en.
Environmental DisclosureENVPEP111211EN
Estimated Lead Time (in.7
Eu Rohs DirectiveNot applicable, out of .
Family SeriesSquare D Sensors, 9038 .
FeaturesRequires Special Operat.
Float Dia.7.0 in
Float Length7.0 in
Float MaterialStainless Steel
Float PositionBelow
Float Travel1 1/4 in
Float TypeHorizontal, Vertical Fl.
Gross Weight0 lbs
GTIN785901591184
Height4.5 in
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 240V5 hp
IncludesMechanical Alternator
ItemAlternator Open Liquid .
Item Number9038AG1S6
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number155394
Manufacturer Product Nu.9038AG1S6
Manufacturer Standard L.1 Weeks
Materialstainless steel float/r.
Material - Housing & Pr.Stainless Steel
Max. Current600 A
Max. Voltage600
Maximum Horse Power Rat.3-3 hp 230 V AC, 1 phas.
MfrSchneider Electric
MountingOpen Tank, Flange
Mounting SupportFlange
Mounting TypeScrew Mount
Nema Degree Of Protecti.NEMA 1
NEMA Rating1
Net Weight0 lbs
Number Of Poles2
Operating Temp. Range-22 Degrees to 220 Deg.
Operating Temperature-30?C ~ 105?C
Output ConfigurationDPST
Output TypeSwitch
Overall Length10.32 in
PackageBox
Permissible Voltage575 V AC
Product Series9038
Product Specific Applic.mechanically alternatin.
Product StatusActive
Product TypeAlternator Open Liquid .
PSI Rating50
Reach RegulationReference contains Subs.
Series-
StandardsCSA, UL
Switch Actuation Level-
Switch Applicationstandard
Switch FunctionClose on Rise, DPST
Switching Voltage AC120 VAC, 240 VAC
Temperature Range (F)-22-220 ?F
TypeLiquid
VA Rating460V AC
Voltage Rating575VAC
Warranty18 months
Weight2.000000
Width4.69 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcappusa.com4810322178.41In StockSquare D178.4 @ 1
thumbzoomblackhawksupply.com9038AG1S6185.631In StockSquare-D185.63 @ 1
Onlinecomponents.com9038AG1S6191.841In StockSquare D191.84 @ 1
thumbzoomindustrialrefrigerationparts.com9038AG1S6197.511In StockSquare D2.0197.51 @ 1
thumbzoomGalco9038AG1S6-SQD205.281In StockSquare D205.28 @ 1
thumbzoomDigi-Key17154956215.071In StockSchneider Electric215.07 @ 1
thumbzoommidwestapplianceparts.com9038AG1S6-SQ-P226.491In StockSquared226.49 @ 1
thumbzoomgordonelectricsupply.com9038AG1S6247.01In Stock10SQUARE D247.0 @ 1
thumbzoommayerelectric.comSQD9038AG1S6247.091In StockSQUARE D247.09 @ 1
thumbzoomZoroG0317231247.131In StockSquare D4.65247.13 @ 1
thumbzoomsustainablesupply.comC2682078260.761In StockSquare D4.65260.76 @ 1
thumbzoomRaptor SuppliesAG6PRB386.16733351In StockSQUARE D386.1673335 @ 1
