- mpnU3P3DC
- brandname: US Motors
- manufacturername: US Motors

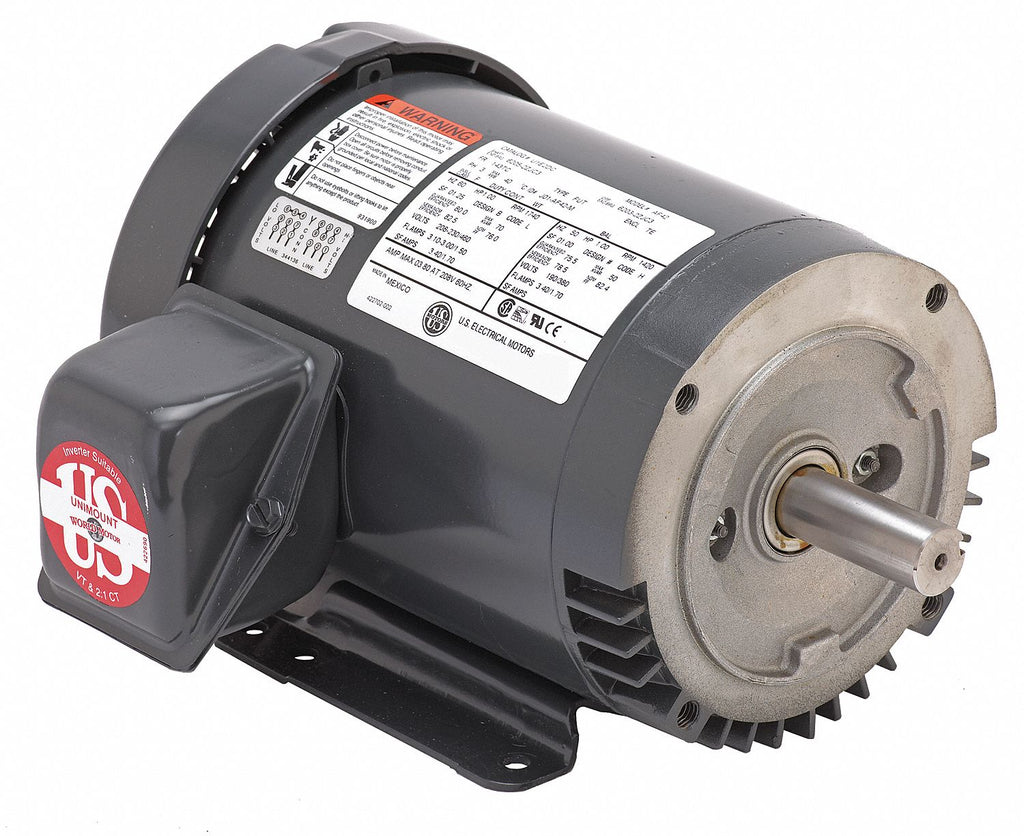

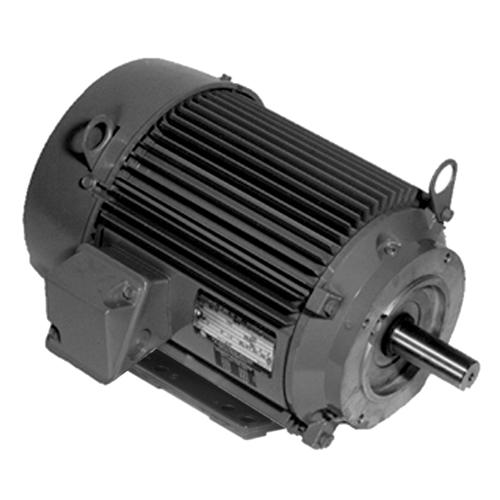

U.S. Motors US Motors Unimount TEFC, 3 HP, 3-Phase, 1175 RPM Motor, U3P3DC
- Brand: U.S. Motors
- PartNumber: U3P3DC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 9.3-8.6/4.3 |
| Bearings | Ball |
| CC Number | CC030A |
| Composition | Aluminum |
| Construction | Aluminum |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 89.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 121.00 |
| Family Series | US Motors Motors |
| FL Amps | 9.3-8.6/4.3 |
| FL Efficiency | 89.5 |
| Footnotes | 5,10 |
| Frame | 213TC |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Full Load Amps | 9.3-8.6/4.3, 9.3 - 8.6/. |
| Green Certification or . | NEMA Premium Rated |
| Gross Weight | 110 lbs |
| Hertz | 50, 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| Item | General Purpose Motor |
| Item Number | U3P3DC |
| Kilowatts | 2.2 kW |
| Length Less Shaft | 15-1/4", 15 1/4 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | CK74 |
| Manufacturer Part Number | U3P3DC |
| Manufacturers Warranty . | 2 yr., 2 yr |
| Max. Ambient Temp. | 40 Degrees C, 40 Degre. |
| Maximum Ambient Tempera. | 40? C |
| Model Number | CK74 |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient,. |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face Footed |
| Nameplate RPM | 1,200 |
| NEMA Design | B |
| NEMA Frame | 213TC |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 89.5 %, 89.5% |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Overall Length | 18-6/8", 18 3/4 in |
| Part Number | U3P3DC |
| Phase | 3, Three |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1175, 1,175 RPM |
| RPM Group | 1101-1200 |
| RPM Range | 1,101-1,200, 1,400 - 1,. |
| Service Factor | 1.15 |
| Shaft Dia. | 1-3/8", 1 3/8 in |
| Shaft Length | 3 3/8 in, 3-3/8" |
| Ship Weight | 110 lbs. |
| Speed (RPM) | 1175 |
| Standards | CE, CSA, UL, UL Recogni. |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 208, 230, 240, 460, 208. |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | GGE23J901 | 409.72497666 | 1 | In Stock | | US MOTORS | 107.0 | 409.72497666 @ 1 |
 | emotorpro.com | U3P3DC | 864.51 | 1 | In Stock | | U.S. Motors | 110.0 | 864.51 @ 1 |
 | Global Industrial | WBB466250 | 881.0 | 1 | In Stock | 17 | US Motors | | 881.0 @ 1 |
 | National Supply Network | B466250 | 928.49 | 1 | In Stock | | US MOTORS | | 928.49 @ 1 |
| Applied Industrial | 101386114 | 943.78 | 1 | In Stock | | U.S. Motors | | 943.78 @ 1 |
 | Galco | U3P3DC-USM | 955.38 | 1 | In Stock | | US Motors | 110.0 | 955.38 @ 1 |
 | motorsandcontrol.com | U3P3DC | 955.38 | 1 | In Stock | | US Motors (Nidec) | 121.0 | 955.38 @ 1 |
 | Zoro | G4563763 | 982.23 | 1 | In Stock | | U.S. Motors | 107.0 | 982.23 @ 1 |
 | sustainablesupply.com | C2828732 | 1302.72 | 1 | In Stock | | US Motors | 107.0 | 1302.72 @ 1 |
| motionindustries.com | 04487625 | 1559.32 | 1 | In Stock | | US Motors (Nidec) | | 1559.32 @ 1 |
