WEG Electric Motor 15012ET3G447T-W22

B00BC8BP0S

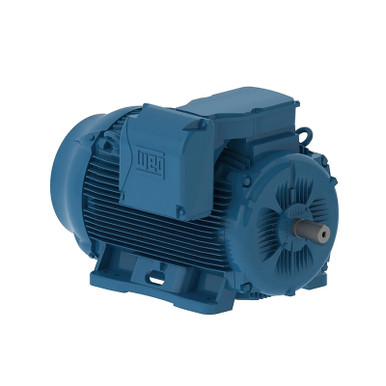

WEG Electric, 15012ET3G447T-W22, 150HP, 1200RPM, 3PH, 460V, 445/7T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor.

WEG Electric, 15012ET3G447T-W22, 150HP, 1200RPM, 3PH, 460V, 445/7T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor.zoom

Attributes

Key Value
Amperage Rating176 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationThree Phase
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Brazil
Degree of ProtectionIP55
Description:MOTOR 150HP 6P 445/7T W.
Dimensions48.701 in L
Drive End Flange TypeStandard
Efficiency %95.8 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight2484.00
Family SeriesWEG Electric Motors
FL Amps176
FL Efficiency95.8
FlangesWithout Flanges
FRAME445/7T
Frame445T, 447T, 445/7T
Frame MaterialCast Iron
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps176
Gross Weight0 lbs
Hertz60
Horsepower150 hp
HP150
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number15012ET3G447T-W22
Kw110
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number15012ET3G447T-W22
MaterialCast Iron
MFG Part #:15012ET3G447T-W22
Model11356114
Motor Enclosure DesignTEFC
Motor Mounting TypeFOOT
Motor Service Factor1.15
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
Nameplate RPM1200
NEMA Frame445/7T
Net Weight0 lbs
Nominal Efficiency95.8
Nominal Voltage480 VAC
Number of Poles6
Number of Speeds1
Output Rating150 hp
Overall Length48.701
Part Number15012ET3G447T-W22
Phase3, 3 ph
Product TypeGeneral Purpose
RotationCW/CCW
RPM1,200 RPM, 1185, 1200
Service Factor1.15
Speed1185 rpm
Speed (RPM)1200
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed1200 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7894171933778
VOLTAGE460
Voltage460V, 460, 460 V
Voltage (AC)460 VAC
Volts460
WEIGHT2472
Weight2440.490000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com15012ET3G447T-W2210776.01In StockWEG2271.010776.0 @ 1
thumbzoomMRO Supply131252014957.21In StockWEG14957.2 @ 1
thumbzoomWalker Industrial15012ET3G447T-W2215479.251In Stock17WEG15479.25 @ 1
thumbzoommotorsandcontrol.com15012ET3G447T-W2215479.251In StockWEG Electric2484.015479.25 @ 1
kscdirect.comWEG 15012ET3G447T-W2215850.21In StockWEG ELECTRIC CORP15850.2 @ 1
thumbzoomindustrialrefrigerationparts.com15012ET3G447T-W2216912.611In StockWEG2440.4916912.61 @ 1
thumbzoomGalco15012ET3G447T-W22-WEG16951.491In StockWEG Electric16951.49 @ 1
thumbzoomZoroG80343536518374.071In Stock11Weg2472.018374.07 @ 1
thumbzoomDealers Electric15012ET3G447T-W2218843.571In StockWeg2484.018843.57 @ 1
thumbzoomPurvis15012ET3G447T-W2218864.051In StockWEG18864.05 @ 1
thumbzoomvfds.com15012ET3G447T-W2220639.01In StockWEG20639.0 @ 1
thumbzoomNational Supply NetworkB87436624780.391In StockWeg Electric Motors24780.39 @ 1
