ASHCROFT GC517F0242CD1000#G

B007ICGARU

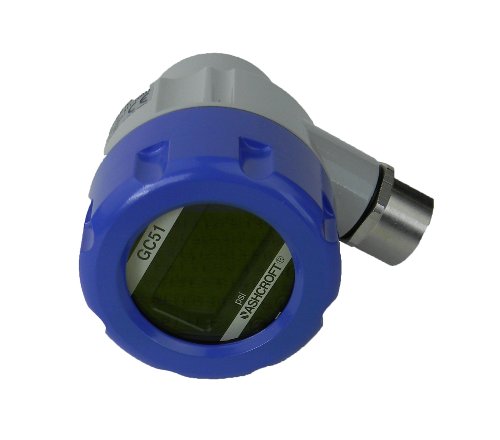

Ashcroft Type GC51 Rangeable Pressure Sensor, -0.25% FS Accuracy, 1/4" NPT Female Connection, 4-20mA Output Signal, 1/2" FNPT Conduit Electrical Connection, 0/1000 psi Pressure Range

Ashcroft Type GC51 Rangeable Pressure Sensor, -0.25% FS Accuracy, 1/4" NPT Female Connection, 4-20mA Output Signal, 1/2" FNPT Conduit Electrical Connection, 0/1000 psi Pressure Rangezoom

Attributes

Key Value
Accuracy+/-0.25% Full Scale
Accuracy - Transmitter+/-0.25% Full Scale
Burst Pressure5x Range
Calibration Certificate-
Calibration Certificate.No
Compatible With-
Connection Location - T.Bottom
Country of Origin (subj.Japan
Diameter2.56 in
Diameter - Transmitter2.56 in
DisplayBacklit 3 1/2 Digit LCD
Display - Transmitter3-1/2 Digit Backlit LCD
Display Screen TypeLCD
Display TypeDigital
Display Unitspsi
Electrical ConnectionScrew Terminals ; 1/2 i.
Electrical Connections1/2" NPT Female Conduit
Electrical Connections .Terminal Board
Enclosure RatingIP66 ; 4X
Explosion/Fire ProofNo
FeaturesPush Button Configurati.
Fitting Material17-4PH Stainless Steel,.
For Use With-
For Use With Media TypeLiquid, Gas
HousingAluminum
Housing Height3 5/16 in
Housing Length3 9/16 in
Housing MaterialAluminum
IncludesInstructions
Intrinsically SafeNo
IP RatingIP66
ItemIndicating Transmitter
Loop ResistanceDependent on Loop Suppl.
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Pressure (PSI)2,000 psi
Maximum Operating Tempe.140 Degrees F
Maximum Pressure1,000 psi
Minimum Operating Tempe.14 Degrees F
Minimum Pressure0 psi
NEMA RatingNEMA 4X
Number of Wires2
Operating Temp.14 to 140 F
Operating Temp. - Trans.14 Degrees to 140 Degr.
Output4 to 20 mA
Output - Transmitter4 to 20mA DC
Overall Depth - Transmi.3.62 in
Overall Height3.35 in
Overall Height - Transm.3.35 in
Overall Width2.56 in
Overpressure2x Range
Power Required12 to 32VDC
Power Required - Transm.12 to 32V DC
Pressure Range0 psi to 1,000 psi
Pressure Unitspsi
Primary Scale Unitspsi
Process Connection1/4" NPT Female
Process Connection Gend.Female
Process Connection Loca.Back
Process Connection Size1/4 in
Process Connection Size.1/4 in
Process Connection TypeNPT
Process Connection Type.FNPT
Range0 to 1000 Psi
Range Units - Transmitt.psi
Range Values - Transmit.0 to 1000
Response Time30 msec
SeriesGC51
ShapeIrregular
Shape - TransmitterIrregular
StandardsCE, CRN, RoHS
Storage Temperature Ran.-4 Degrees F to 158 Deg.
Thermal Error+/-0.2%
Transmitter TypePressure Transmitter
Weight1 lb
Wetted Materials316 Stainless Steel
Wetted Materials - Tran.316 Stainless Steel
Wiring Entry1/2 in FNPT Conduit Con.
Wiring Entry - Transmit.1/2 in FNPT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0132806711.01In Stock26Ashcroft1.3711.0 @ 1
TranscatGC517F0242CD1000#G784.61In StockASHCROFT784.6 @ 1
thumbzoomRaptor SuppliesAE3GDY1068.1419061In StockASHCROFT1068.141906 @ 1
