Cle-line C20724

mpnC20724
brandname: Cle-Line
manufacturername: Cle-Line

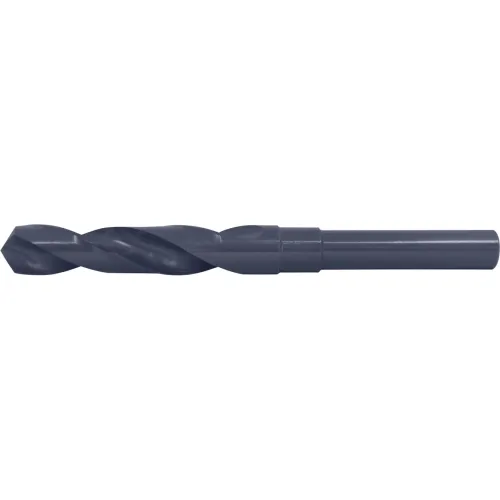

Cle-Line C20724 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 53/64" Drill Diameter

Brand: Cle-line
PartNumber: C20724
Model: C20724
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Iron Based Ferrous Meta.
Application	For Alloy And Carbon St.
Coolant Fed	Non-Coolant Through
Country of Origin (subj.	United States
Cutting Depth	3-1/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.8281
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.8281"
Diameter (Fraction)	53/64"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Point Angle	118 Degrees
Drill Bit Point Type	Conventional Point
Drill Bit Size	53/64 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Size - Decimal In.	0.8281 in
Drill Size - Fraction	53/64 in
Drill Size System	Fractional
Drill Style	Silver & Deming Drill
Finish	Black Oxide
Finish - Machining	Black Oxide
Flute Length	3.1250", 79.38 mm, 3-1/.
Flute Length (Metric)	79.38mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	28 Degrees
Item	Reduced Shank Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	3 5/16 in
Measurement System	Fractional Inch
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Primary Material Applic.	Cast Iron, Steel
Primary Material Applic.	K, P
Series	1813
Shank Configuration	Reduced
Shank Dia.	1/2 in
Shank Length	2 1/4 in, 2.2500"
Shank Length (Metric)	57.15mm
Shank Neck Diameter	0.7841"
Shank Neck Length	0.5000"
Shank Size	0.5000", 1/2 in
Shank Size (Metric)	12.70mm
Shank Type	Reduced
Shank Type - Machining	Straight
Silver & Deming Drill	No
SKU	C20724
Spiral Direction	Right Hand
Standards	Not Rated
Style	1813
Surface Condition	Steam Oxide
Tool Size	53/64"
Type	General Purpose
UPC	6.97E+11

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Zoro	G4958320	20.99	1	In Stock	35	Cle-Line	0.51	20.99 @ 1
Global Industrial	WBB2543894	21.75	1	In Stock		Cle-Line		21.75 @ 1
Megadepot	C20724	22.0	1	In Stock		Cle-Line		22.0 @ 1
heavydutydepot.com	C20724	22.0	5	In Stock		Cle-Line		22.0 @ 5
usmegastore.com	C20724	22.74	1	In Stock		Cle-Line		22.74 @ 1
MRO Supply	6123978	25.87	2	In Stock		Cle-Line		25.87 @ 2
imsbolt.com	C20724	42.63	1	In Stock		CLE-LINE		42.63 @ 1
