Cle-line C20732

B00J9MEJG6

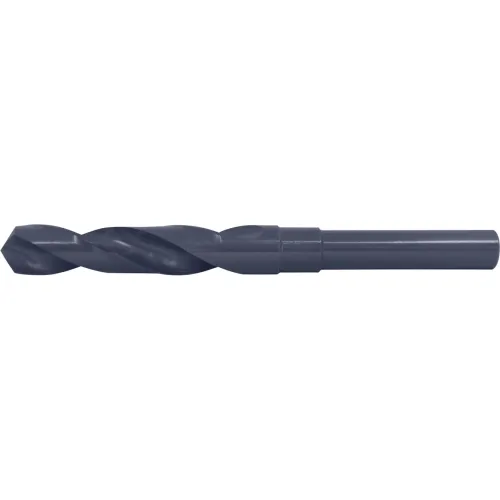

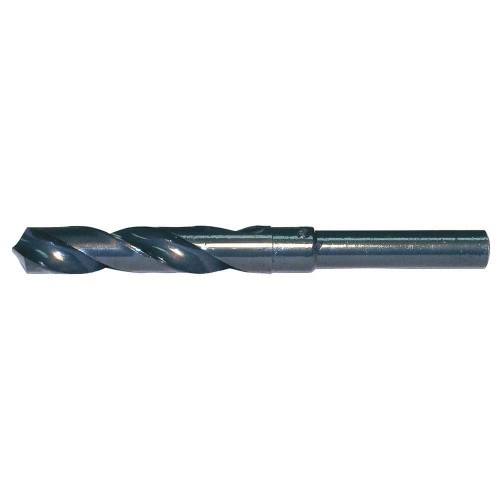

Cle-Line C20732 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 1/2" Drill Diameter

Cle-Line C20732 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 1/2" Drill Diameterzoom

Attributes

Key Value
Applicable MaterialsIron Based Ferrous Meta.
ApplicationFor Alloy And Carbon St.
Coolant FedNon-Coolant Through
Cutting Depth3-1/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Decimal Equivalent0.5000
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.5000"
Diameter (Fraction)1/2"
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishBlack Oxide
Drill Bit Point Angle118 Degrees
Drill Bit Size1/2 in
Drill ConstructionGeneral Purpose
Drill Diameter Tolerance+0.0000 in /-0.0010 in
Drill Size - Decimal In.0.5 in
Drill Size - Fraction1/2 in
Drill Size SystemFractional
Drill StyleSilver & Deming Drill
FinishBlack Oxide
Finish - MachiningBlack Oxide
Flute Length3.1250", 79.38 mm, 3-1/.
Flute Length (Metric)79.38mm
Flute TypeSpiral
Hand of CutRight
Hand of SpiralRight
ItemReduced Shank Drill Bit
MaterialHSS
Maximum Drilling Depth2 in
Number of Flutes2
Overall Length6.0000", 6 in
Overall Length (Metric)152.40mm
Point Angle118 deg, 118?
Point StyleRadial
Point TypeRadial
Primary Material Applic.Cast Iron, Steel
Series1813
Shank ConfigurationReduced
Shank Dia.1/2 in
Shank Length2 1/4 in, 2.2500"
Shank Length (Metric)57.15mm
Shank Neck Diameter0.4560"
Shank Neck Length0.5000"
Shank Size0.5000", 1/2 in
Shank Size (Metric)12.70mm
Shank TypeReduced
Shank Type - MachiningStraight
Silver & Deming DrillNo
SKUC20732
Spiral DirectionRight Hand
Style1813
Surface ConditionSteam Oxide
Tool Size1/2"
TypeGeneral Purpose
UPC6.97E+11

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMegadepotC2073213.431In StockCle-Line13.43 @ 1
thumbzoomusmegastore.comC2073213.531In StockCle-Line13.53 @ 1
thumbzoomheavydutydepot.comC2073213.538In StockCle-Line13.53 @ 8
thumbzoomGlobal IndustrialWBB254376914.01In StockCle-Line14.0 @ 1
thumbzoomMRO Supply612398615.124In StockCle-Line15.12 @ 4
thumbzoomZoroG495857616.151In StockCle-Line0.2816.15 @ 1
thumbzoomAmazonB00J9MEJG617.741In StockCle-line17.74 @ 1
thumbzoomimsbolt.comC2073224.91In StockCLE-LINE24.9 @ 1
