- mpnC23208
- brandname: Cle-Line
- manufacturername: Cle-Line

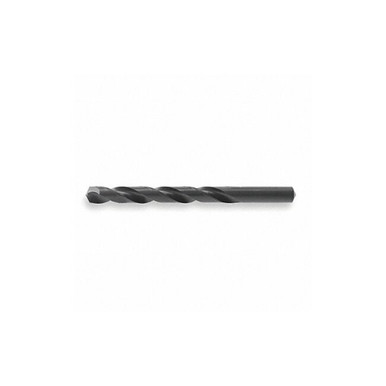

Jobber Bit, 6, High Speed Steel
- Brand: Cle-line
- PartNumber: C23208
- PackageQuantity: 1
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 197 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2040 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2040" |
| Diameter (Wire/Let) | 6 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | #6 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0422 in |
| Drill Size - Decimal In. | 0.204 in |
| Drill Size - Wire | #6 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Tin, Black Oxide |
| Flute Length | 2.5000", 2-1/2 in, 2 1/. |
| Flute Length (Metric) | 63.50mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 7/8 in |
| Mpn | C23208 |
| Number of Flutes | 2 |
| Overall Length | 3.7500", 3 3/4 in, 3-3/. |
| Overall Length (Metric) | 95.25mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 1801 |
| Shank Configuration | Straight |
| Shank Dia. | 13/64 in |
| Shank Length | 1.2500", 1 1/4 in |
| Shank Length (Metric) | 31.75mm |
| Shank Size | 0.2040", 0.204 in in Di. |
| Shank Size (Metric) | 5.18mm |
| Shank Type | Straight |
| SKU | ZO-G1019681 |
| Style | 1801 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | #6 |
| Type | Heavy Duty |
| UPC | 697334232087 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543105 | 1.8303 | 12 | 12 | | Cle-Line | | 1.8303 @ 12 |
 | Megadepot | C23208 | 2.07 | 1 | 12 | | Cle-Line | | 2.07 @ 12 |
 | usmegastore.com | C23208 | 2.07 | 1 | 12 | | Cle-Line | | 2.07 @ 12 |
 | heavydutydepot.com | C23208 | 2.18 | 46 | 12 | | Cle-Line | | 2.18 @ 46 |
 | MRO Supply | 6124731 | 2.23 | 23 | 12 | | Cle-Line | | 2.23 @ 23 |
 | Zoro | G1019681 | 2.29 | 1 | 290 | | Cle-Line | 0.1 | 2.29 @ 12 |
 | sustainablesupply.com | C2765398 | 2.86 | 1 | 12 | | Cle-Line | 0.1 | 2.86 @ 12 |
 | Raptor Supplies | AD6VZZ | 3.12858 | 1 | 12 | | CLE-LINE | | 3.12858 @ 12 |
 | simsupply.com | ZO-G1019681 | 8.76 | 1 | 197 | | Cle-Line | | 8.76 @ 12 |
