- mpnC23781
- brandname: Cle-Line
- manufacturername: Cle-Line

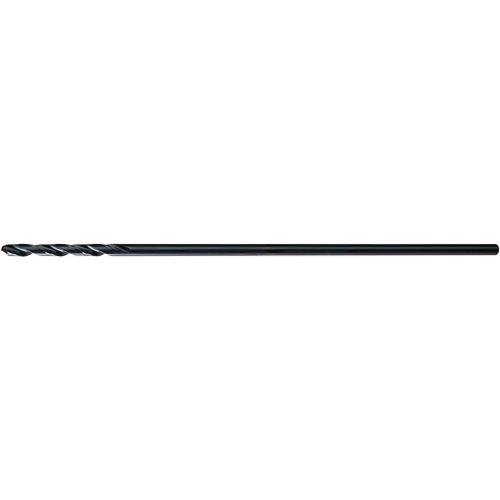

Cle-Line C23781 Aircraft Extended Length Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 21 (Pack of 12)
- Brand: Cle-line
- PartNumber: C23781
- Model: C23781
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Angle Iron, Cast Iron, . |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Cutting Depth | 2-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1590 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1590" |
| Diameter (Wire/Let) | In Stock |
| Drill Bit Point Angle | 135 Degrees, 135 ? |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #21 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Extra Long |
| Drill Point Length | 0.0329 in |
| Drill Size - Decimal In. | 0.159 in |
| Drill Size - Wire | #21 |
| Drill Size System | Wire |
| Drill Style | Aircraft Extension Drill |
| Finish | Black Oxide/Steam Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 2-1/8 in, 2.1250", 2 1/. |
| Flute Length (Metric) | 53.97mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21? to 34? |
| Item | Extra Long Drill Bit |
| Item? | 50CE40 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 5/8 in |
| Measurement System | Wire, Imperial |
| Mfr. Model? | C23781 |
| Number of Flutes | 2 |
| Overall Length | 12 in, 12.0000" |
| Overall Length (Metric) | 304.80mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Steel |
| Primary Material Applic. | P |
| Series | 1805 |
| Shank Configuration | Straight |
| Shank Dia. | 5/32 in |
| Shank Length | 9 7/8 in, 9-7/8 in, 9.8. |
| Shank Length (Metric) | 250.82mm |
| Shank Size | 0.1590", 0.159 in |
| Shank Size (Metric) | 4.04mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 1805 |
| Surface Condition | Steam Oxide |
| Tool Size | #21 |
| Type | Type B Extended Length |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C23781 | 5.84 | 1 | 12 | | Cle-Line | | 5.84 @ 12 |
 | heavydutydepot.com | C23781 | 5.84 | 18 | 12 | | Cle-Line | | 5.84 @ 18 |
 | usmegastore.com | C23781 | 7.07 | 1 | 12 | | Cle-Line | | 7.07 @ 12 |
 | Zoro | G4948968 | 7.59 | 12 | 12 | 12 | Cle-Line | 0.01 | 7.59 @ 12 |
 | MRO Supply | 6125070 | 7.95 | 5 | 12 | | Cle-Line | | 7.95 @ 12 |
| Grainger | 50CE40 | 10.36 | 1 | 12 | | CLE-LINE | | 10.36 @ 12 |
 | Global Industrial | WBB2543823 | 81.6 | 1 | 12 | | CLE-LINE | | 81.6 @ 12 |
