Hubbell Wiring Systems IG5362RWR

B00IS2JA30

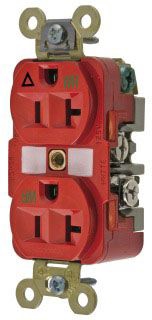

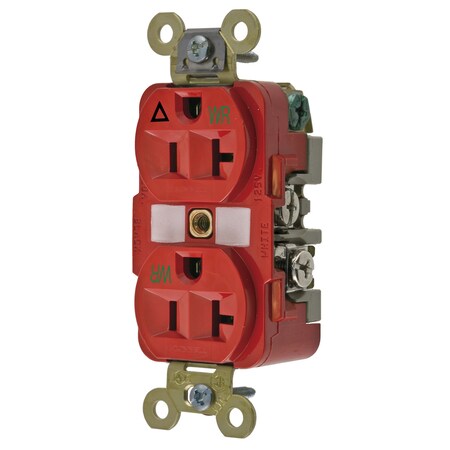

Hubbell Wiring Systems IG5362RWR SpikeShield HBL Extra Heavy Duty Specification Grade Straight Blade Isolated Ground Receptacle, 125V, 20A, 1 HP, 2-Pole, 3-Wire, Red

Hubbell Wiring Systems IG5362RWR SpikeShield HBL Extra Heavy Duty Specification Grade Straight Blade Isolated Ground Receptacle, 125V, 20A, 1 HP, 2-Pole, 3-Wire, Redzoom

Attributes

Key Value
Amperage20 A
ApplicationExtra Heavy Duty Specif.
ApprovalsCSA, UL
ColorRed
CommentsExtra Heavy Duty
ConnectivityBack and Side Wired Scr.
Current / amperage rati.20 A
Current InterruptingCertified for current i.
Current Rating15 A
Current rating20 A
Device ColorRed
Dielectric strengthWithstands 2,000V minim.
Dimensions3.28 in x 1.33 in x 1.0.
Display SizeStandard Sized Product
Environmental conditionsWeather Resistant
Face ShapeTraditional
Family SeriesHubbell Plugs & Recepta.
GFCINo
Gross Weight0.2 lbs
Ground Screw Material#8-32 Brass, Multiple D.
Height1.05 in
HP0.5
IlluminatedNo
Isolated GroundYes
Item NumberIG5362RWR
Length3.28 in
ManufacturerHubbell
Manufacturer Part NumberIG5362RWR
MaterialNylon
Material - mounting har.Screw Mounting
Max HP1
Multimedia OutletNo
NEMA Configuration5-15R
NEMA No.5-20R
Nema Rating5-20R
Net Weight0 lbs
Number of poles2-Pole
Number of Poles2
Number of wires3-Wire
Number of Wires3
Operating temperatureMaximum continuous 75C .
Other Available ColorsOrange, Gray, Ivory, Re.
Phase1, Single Phase
Poles and Wires2 Pole, 3-Wire Grounding
Power Contacts Material.037" (.9) Phosphor Bro.
Receptacle GradeExtra Heavy Duty, Weath.
StandardNEMA
StyleFinder Groove Face
Tamper ResistantNo
Temperature RiseMax 30?C temperature ri.
TypeStandard Duplex, 2 Pole.
USBNo
Voltage125V, 125 V, 125 VAC
Voltage rating descript.125 V
Wattage2500 W
Weather ResistantYes
Width1.33 in
Width (in)1.33
Wire size#12 AWG to #10 AWG
Wire Size#12 AWG to #10 AWG
Wiring MethodBack and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comIG5362RWR34.681In StockHubbell34.68 @ 1
Sager ElectronicsIG5362RWR36.191In StockHubbell Wiring Device-Kellems36.19 @ 1
Electro SonicIG5362RWR36.76081In StockHubbell Wiring Device-Kellems36.7608 @ 1
thumbzoomZoroG10062243741.691In StockHubbell Wiring Device-Kellems41.69 @ 1
thumbzoomMRO Supply102995044.641In StockHubbell Wiring44.64 @ 1
thumbzoomgordonelectricsupply.comIG5362RWR44.811In StockHUBBELL44.81 @ 1
thumbzoomGalcoIG5362RWR-HBBL45.961In StockHubbell0.245.96 @ 1
Newark84M957263.441In StockHUBBELL WIRING DEVICES63.44 @ 1
