Hubbell Wiring Device-Kellems HBL3100RS2W

mpnHBL3100RS2W
brandname: Hubbell Wiring
manufacturername: Hubbell Wiring

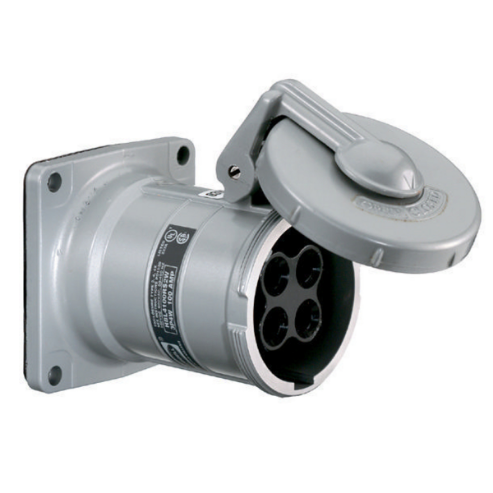

Hubbell - HBL3100RS2W - Receptacle, 2 P, 3 W

Brand: Hubbell Wiring Device-Kellems
PartNumber: HBL3100RS2W
PackageQuantity: 1
Manufacturer: Hubbell
Label: Hubbell

Attributes

Key	Value
Amperage	100A
Amperage Rating	100A
Amps	100
Amps - Plugs and Recept.	100
Application	Metallic with Nylon Shr.
Approvals	CSA, UL
Aux/Pilot Contacts	None
AWG Range	#3 AWG to #1/0 AWG
Body Material	Zytel 101 Nylon
Body Material - Pin and.	Zytel 101 Nylon
Built-In Strain Relief	Yes
Cap Type	Spring-Loaded Cap
Case Material	Non-Metallic
Color	Gray
Color - Plugs and Recep.	Gray
Color Family	Black
Connection Description	Water Resistant
Connection Orientation	Straight
Country of Origin	US - United States
Country of Origin (subj.	United States
Current Rating	100 A, 60 A
Display Type	Standard Sized Product
ECCN	EAR99
Face Diameter	4.7 in
Family Series	Hubbell Plugs & Recepta.
Features	Abuse Resistant
Flange Type	Flanged
Gross Weight	3.1 lbs
Grounding	Grounded
Grounding Style	Style 2
Housing Color	Silver
Housing Material	Thermoplastic
Housing Material Grade	Valox 357
Housing Material Type	Non-Metallic
HP	-
Hub Type Stand-In	Straight
Item	Watertight Pin and Slee.
Item - Plugs and Recept.	Watertight Pin and Slee.
Item Number	HBL3100RS2W
Lockout-Tagout	No
Manufacturer	Hubbell
Manufacturer Part Number	HBL3100RS2W
Market	Industrial
Material	Thermoplastic
Maximum Operating Tempe.	75 Degrees C
Maximum Wire Size	2 AWG
Minimum Operating Tempe.	-40 Degrees C
Minimum Wire Size	8 AWG
Mounting Box Hub Type	Receptacle Only
NEMA Enclosure Rating	4x
NEMA Rating	4x
Net Weight	0 lbs
No. of Poles	2
No. of Wires	3
Number of Gangs	1
Number of Poles	2
Number of Poles & Wires	2 Pole / 3 Wire
Number of Wires	3
Phase	Single
Phase - Electrical	1
Pin & Sleeve Standards	UL 1682
Power Indicating Light	No
Product Series	Insulgrip
Rated Voltage	600V AC/250V DC
Resistance Properties	Impact Resistant, Moist.
Reverse Service	No
Series	HBL Series
Shrouded	Yes
Standard	CSA Certified to CSA Sp.
Standards	CSA Certified C22.2 No..
Style	Standard Service,Style .
Switch Rated	No
Temperature Range (F)	-40-167 ?F
Terminal Type	Screw
Type	Watertight Receptacle
UL 94 Flammability Rati.	V-0
UNSPSC	39121406
Voltage	600VAC/250VDC, 600 V, 2.
Voltage - Plugs and Rec.	600V AC/250V DC
Voltage Color Code	Black, Gray
Voltage Rating	600V AC/250V DC
Wire Connection Type	Screw Terminals
Wire Size	2 AWG, 3 AWG, 4 AWG
Wire Size Range	4-2 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Zoro	G1107827	406.25	1	In Stock	Hubbell	3.2	406.25 @ 1
MRO Supply	1021949	532.0	1	In Stock	Hubbell Wiring		532.0 @ 1
standardelectricsupply.com	2229152	570.0	1	In Stock	Hubbell		570.0 @ 1
gordonelectricsupply.com	HBL3100RS2W	578.55	1	In Stock	HUBBELL		578.55 @ 1
Galco	HBL3100RS2W-HBBL	586.76	1	In Stock	Hubbell	3.1	586.76 @ 1
us.rs-online.com	71982042	604.51	1	In Stock	Hubbell Wiring Device-Kellems		604.51 @ 1
Graybar	98290539	713.0704	1	In Stock	Hubbell Wiring Device - Kellems		713.0704 @ 1
Newark	14C5129	730.17	1	In Stock	HUBBELL WIRING DEVICES		730.17 @ 1
kirbyrisk.com	1919206	882.36	1	In Stock	Hubbell		882.36 @ 1
Raptor Supplies	AE4AQQ	960.9098265	1	In Stock	HUBBELL WIRING DEVICE-KELLEMS		960.9098265 @ 1
