Schneider Electric 725BXXBC3ML-12D

B007ICN5HS

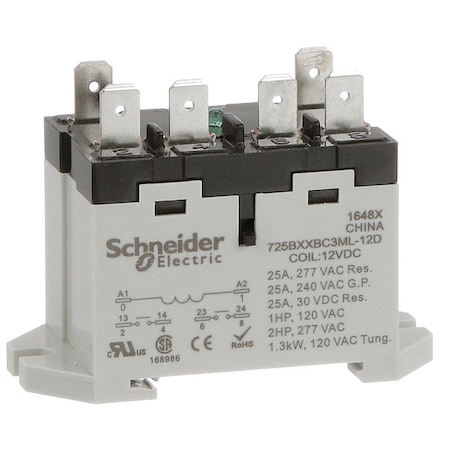

Enclosed Power Relay, 6 Pin, 12VDC, DPST-NO

Enclosed Power Relay, 6 Pin, 12VDC, DPST-NOzoom

Attributes

Key Value
AC Contact Rating - Rel.25A @ 277V
Alternate Mfr Part Numb.P252057E
ApprovalsCE, CSA, UL
Bifurcated ContactNo
Body Depth1.3 in
Body Depth - Relay1.3 in
Body Height1.3 in
Body Height - Relay1.94 in
Body Width2.67 in
Body Width - Relay2.67 in
BrandSchneider Electric
Coil Voltage12 VDC
Coil Volts12V DC
Contact Current Rating25 A
Contact FormDPST-NO
Contact Form - RelayDPST-NO
Contact MaterialSilver Alloy
Contact Voltage Rating300
Contacts2NO
Control Voltage12
Current Rating25 A
Current Stock22
DC Contact Rating - Rel.25A @ 28V
Dimensions1.94"H, 2.67"W, 1.30"D
DiodeNo
Electrical Connection -.1/4 in Tab Terminal
EnclosurePlastic
Family SeriesSchneider Relays, 725 S.
FeaturesLED & Button, 2HP @ 277.
Flat Pin Width0.25 in
Gross Weight0.0022 lbs
Hz50/60
International ShippingNo
ItemEnclosed Power Relay
Item - RelayEnclosed Power Relay
Item Number725BXXBC3ML-12D
Lead TimeExpected to ship in 1-2.
ManufacturerSchneider
Manufacturer Part NumberP252057EM
Max Current25 A
Mechanical LatchNo
MountingFlange, Bottom/Din Rail.
Mounting - RelayBottom Flange, DIN Rail
Mounting TypeDIN Rail Mount ; Panel .
Mpn725BXXBC3ML-12D
Net Weight0.0022 lbs
Nominal Coil Voltage12 VDC
Number of Electrical Co.6
Number of Pins - Relay6
Overall Depth1.94 in
Overall Height - Relay1.94 in
Pins6
Power Consumption - Rel.2.5 W
Primary TypePower Relays
Product Series725
Published Coil Voltage12 VDC
Push-to-TestYes
Rating @ 220/240/277 VAC25 A
Rating @ 24/28/30 VDC25 A
Relay TypeElectromechanical
RoHSYes
Safety GuidedNo
Series725 Series
SKUZO-G1786601
Special FeaturesSide Pushbutton
Status IndicatorYes
SubCategoryElectrical
Termination.250 " Flat Blade, QC T.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com725BXXBC3ML-12D12.56517Magnecraft / Schneider Electric12.565 @ 1
Verical725BXXBC3ML-12D16.274542Schneider Electric16.27 @ 4
Mouser528-725BXXBC3ML-12D16.45127Schneider Electric16.45 @ 1
thumbzoomZoroG178660123.59114Schneider Electric2.1823.59 @ 1
thumbzoomGalco725BXXBC3ML-12D-MGCR25.281In StockSchneider0.002225.28 @ 1
thumbzoomRadwell725BXXBC3ML-12D26.010In StockSCHNEIDER ELECTRIC MAGNECRAFT26.0 @ 10
thumbzoomNewark25R436830.9810In StockSCHNEIDER ELECTRIC/LEGACY RELAY30.98 @ 10
thumbzoomsimsupply.comZO-G178660135.31122Schneider Electric35.31 @ 1
us.rs-online.com7018541344.87119Schneider Electric/Legacy Relays44.87 @ 1
