Marathon Electric GT1217

B0196KWYSU

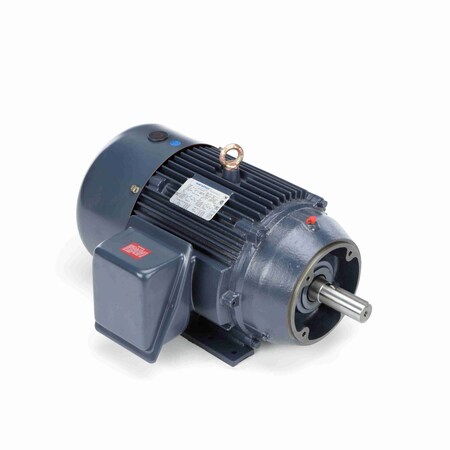

Marathon GT1217 254TC Frame 254TTFCA6078 TEFC General Purpose Motor, 3 Phase, C-Face with Base, Ball Bearing, 7-1/2 hp, 1200 RPM, 1 Speed, 208-230/460 VAC

Marathon GT1217 254TC Frame 254TTFCA6078 TEFC General Purpose Motor, 3 Phase, C-Face with Base, Ball Bearing, 7-1/2 hp, 1200 RPM, 1 Speed, 208-230/460 VACzoom

Attributes

Key Value
Amps21/10.5 A
BearingsBall
Country of Origin (subj.United States
duty / condition type:Inverter Duty
Duty CycleContinuous
Efficiency91%
Enclosure MaterialIron
Enclosure TypeTEFC (Totally Enclosed .
enclosure type:TEFC (Totally Enclosed .
Frame254TC
frame material:Cast Iron
frame size:256TC
frequency rating:60 Hz
full load current:21.00 / 10.50 A
full load efficiency:91.00 %
HP7-1/2
Hz60
Insulation ClassF
insulation class:F
ip rating:43
Manufacturer Model #254TTFCA6078
Maximum Ambient Tempera.40? C
motor horsepower:7.50 hp, 7-1/2 hp
motor phase:3 ph
motor supply voltage:230/460 V
Mounting OrientationHorizontal
Mounting TypeRigid Base
mounting type:Rigid Base
Number of Speeds1
Overall Length26.6"
overall length (c-dimen.26.60 in
Phase3
Product Type3 Phase
RotationReversible
RPM1180
Service Factor1.15
service factor:1.15
Shaft Diameter1-5/8"
shaft diameter:1.63 in
Shaft Length4"
Ship Weight315 lbs.
standards met:UL, CSA
synchronous rpm:1200 rpm
Volts230/460
weight:315 g
