Marathon GT3516

B0855T6Z1F

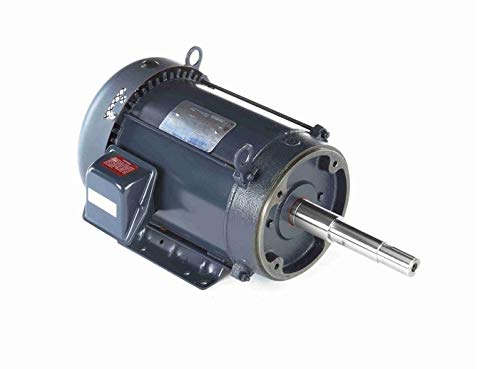

7 1/2 hp 1800 RPM 213JP Frame 575V TEFC Marathon Close Coupled Pump Motor # GT3516

7 1/2 hp 1800 RPM 213JP Frame 575V TEFC Marathon Close Coupled Pump Motor # GT3516zoom

Attributes

Key Value
Amps7.7 A
BearingsBall
Duty CycleContinuous
Efficiency91.7%
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
enclosure type:TEFC (Totally Enclosed .
Frame213JP
frame material:Rolled Steel
frame size:213JP
frequency rating:60 Hz
full load efficiency:91.70 %
HP7-1/2
Hz60
Insulation ClassF
ip rating:43
Manufacturer Model #213TTFB6038
Maximum Ambient Tempera.40? C
motor category:Close Coupled Pump Motor
motor horsepower:7-1/2 hp, 7.50 hp
motor phase:3 ph
motor supply voltage:575 V
Mounting OrientationHorizontal
Mounting TypeRigid Base
mounting type:Footed/C-Face Flange
Number of Speeds1
Overall Length24.54"
overall length (c-dimen.24.54 in
Phase3
Product Type3 Phase
RotationReversible
RPM1775
Service Factor1.15
service factor:1.15
Shaft Diameter1-1/4", 1-3/8", 1-3/4"
shaft diameter:1.25 in
Shaft Length8.14"
Ship Weight170 lbs.
standards met:CSA, UL
synchronous rpm:1800 rpm
Volts575
weight:170 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0855T6Z1F1271.86172Marathon1271.86 @ 7
emotorpro.comGT35161348.2917Marathon170.01348.29 @ 7
thumbzoommotionindustries.com057889221468.1117Marathon Electric1468.11 @ 7
