90325-0014

mpn0903250014
brandname: Molex
manufacturername: Molex

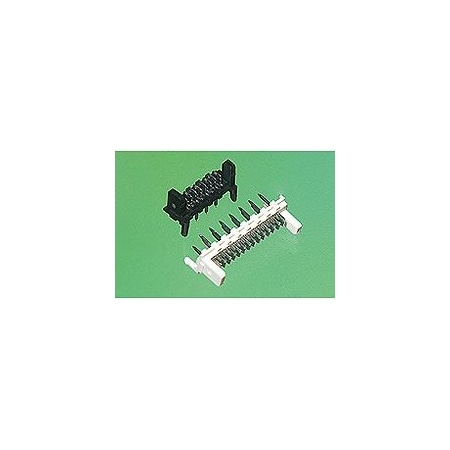

Headers & Wire Housings PICOFLEX 14P HDR LOPRO SN (5 pieces)

Headers & Wire Housings PICOFLEX 14P HDR LOPRO SN (5 pieces)

zoom

PartNumber: 90325-0014
PackageQuantity: 5
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	090325
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Finish Thicknes.	-
Contact Length - Mating	-
Contact Length - Post	0.130" (3.30mm)
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Blade
Current Rating	1.2 A
Current Rating (Amps)	1.2A
Description	CONN HEADER VERT 14POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM9240-ND
Fastening Type	Push-Pull
Features	Board Lock
Flammability Rating	UL 94V-0
Hole Center to Center	1.27 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.252" (6.40mm)
Insulation Material	Polybutylene Terephthal.
Manufacturer	Molex
Manufacturer Product Nu.	0903250014
Manufacturer Standard L.	16 Weeks
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	230?C
Max. Voltage	250V
Mfr	Molex
Mounting Type	Through Hole
Number of Contacts	14
Number of Positions	14
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-40?C ~ 105?C
Overall Contact Length	-
Package	Bulk
Part Status	Active
Pitch - Mating	0.050" (1.27mm)
Product Status	Active
Row Spacing - Mating	-
Series	Picoflex PF-50 90325
Shrouding	Shrouded - 2 Wall
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	250V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 90325-0014	0.32	168	10848		MOLEX		0.32 @ 168
	Newark	46WX962	0.463	1	50		MOLEX		0.463 @ 50
	Digi-Key	404184	0.628	1	50		Molex		0.628 @ 50
	TME	MX-90325-0014	0.788	1	1322		MOLEX		0.788 @ 50
	RS Delivers	324-8154	1.0824	1	285		Molex		1.0824 @ 50
	Zoro	G705891146	94.08	1	50		Molex		94.08 @ 50
