Parker 06R118AC

mpn06R118AC
brandname: PARKER
manufacturername: PARKER

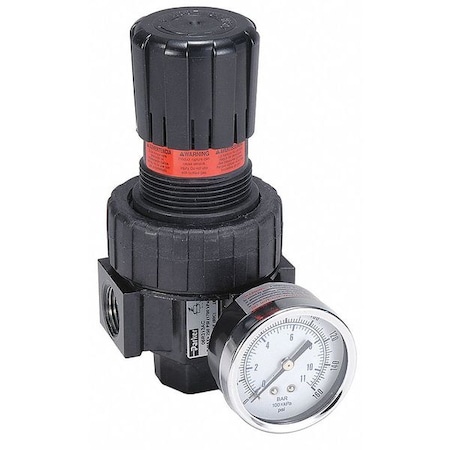

Parker 06R118AC Regulator, Relieving Type, 2-125 psi Pressure Range, Gauge, 53 scfm, 1/4" NPT

Brand: Parker
PartNumber: 06R118AC
Model: 06R118AC
Size: 1/4"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Parker
Label: Parker

Attributes

Key	Value
:	N/A
Adjustment Knob	Nonrising
Adjustment Location	Top
Adjustment Mechanism	Knob
Adjustment Mechanism Ma.	Steel
Adjustment Range (Regul.	0 to 125 psi
Adjustment Range - Regu.	0 to 125 psi
Air Inlet Gender	Female
Air Inlet Size	1/4 in
Air Inlet Type	NPT
Air Outlet Gender	Female
Air Outlet Size	1/4 in
Air Outlet Type	NPT
Body Material	Zinc
Brand	Parker
Compressed Air Regulato.	General Purpose Air Reg.
Country of Origin (subj.	United States
Current Stock	42
For Fluid Type	Air
For Substance Type	Air
Gauge Port	1/4 in NPT
Height	6.08"
Includes	(2) Gauge Plugs and Fac.
Inlet Size (Combined)	1/4 in NPT
International Shipping	No
Item	Compressed Air Regulator
Length	2.74"
Material	Zinc/Plastic
Max. Flow (Regulators)	53 cfm
Max. Flow - Regulators	53 cfm
Max. Inlet Pressure (Re.	250 psi
Max. Inlet Pressure - R.	250 psi
Max. Temp. (Regulators)	175 Degrees F
Max. Temp. - Regulators	175 Degrees F
Maximum Flow Rate	53 cfm
Maximum Operating Press.	125 psi
Maximum Operating Tempe.	175 Degrees F
Maximum Regulated Press.	125 psi
Minimum Operating Press.	18 psig
Minimum Operating Tempe.	32 Degrees F
Minimum Regulated Press.	2 psi
Modular Connection	Modular Connection
Mpn	06R118AC
Number of Air Inlets	1
Number of Air Outlets	1
Overall Depth	2 13/16 in
Overall Height	6 in
Overall Height (Regulat.	6.08"
Overall Height - Regula.	6.08 in
Overall Length	2.74 in
Overall Width	2 3/4 in
Overall Width (Regulato.	2.84"
Overall Width - Regulat.	2.84 in
Pipe Size (Regulators)	1/4"
Pipe Size - Regulators	1/4 in
Pressure Control Range .	2 psi to 125 psi
Pressure Gauge Included	Yes
Pressure Gauge Port Size	1/4 in
Pressure Gauge Port Type	NPT
Promotion Restriction	Not eligible for promot.
Regulator Body Material	Aluminum or Zinc
Regulator Type	Relieving
Seal Material	Nitrile
Series	6
SKU	ZO-G4862532
SubCategory	Pneumatics
System Location	Air Line
Valve Design	Balanced
Weight	1.6 lb

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
AmazonTP	B007FXJ6OG	54.62	1	In Stock	Parker		54.62 @ 1
sustainablesupply.com	C1666380	65.46	1	In Stock	Parker	2.35	65.46 @ 1
Wilson	06R118AC	105.41	1	In Stock	Parker - Pneumatic Division		105.41 @ 1
Zoro	G4862532	111.15	1	825	Parker	2.35	111.15 @ 1
simsupply.com	ZO-G4862532	135.82	1	42	Parker		135.82 @ 1
Raptor Supplies	AB6KGB	159.9263055	1	In Stock	PARKER		159.9263055 @ 1
