- mpnD2V2B
- brandname: US Motors
- manufacturername: US Motors

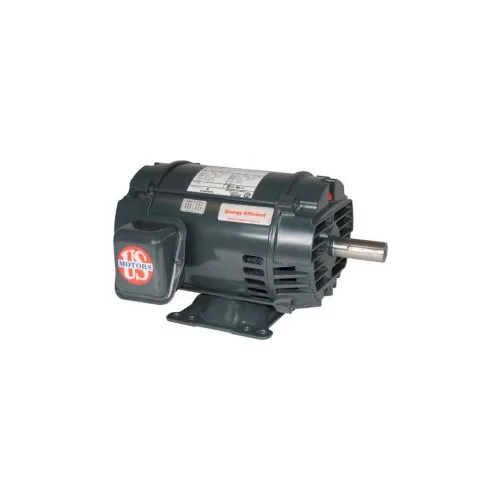

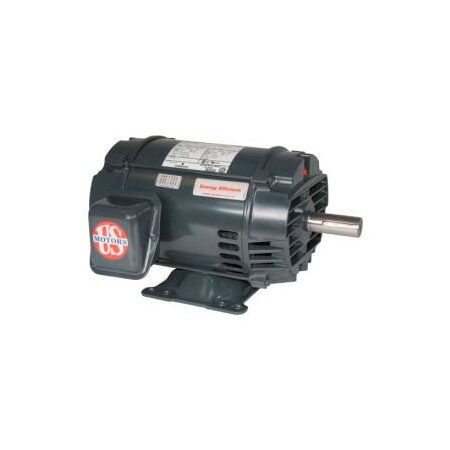

U.S. Motors US Motors Inverter Duty, 2 HP, 3-Phase, 1740 RPM Motor, D2V2B
- Brand: U.S. Motors
- PartNumber: D2V2B
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 5.6/2.8 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | Standard |
| Efficiency | 86.5% |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 161.76 |
| Family Series | US Motors Motors |
| FL Amps | 5.7/2.8 |
| FL Efficiency | 85.5 |
| Frame | 145T |
| Frequency | 60 Hz |
| Gross Weight | 35 lbs |
| Hertz | 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes |
| Item Number | D2V2B |
| Kilowatts | 1.5 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FE60 |
| Manufacturer Part Number | D2V2B |
| Maximum Ambient Tempera. | 40? C |
| Model Number | HC82 |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| NEMA Frame | 145T |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC, 480 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Package Quantity | 1 |
| Part Number | D2V2B |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1745, 1,745 RPM |
| Service Factor | 1.15 |
| Ship Weight | 35 lbs. |
| Speed (RPM) | 1740 |
| Voltage | 230V, 460V |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB466200 | 461.95 | 1 | In Stock | | US Motors | | 461.95 @ 1 |
 | emotorpro.com | D2V2B | 476.03 | 1 | In Stock | | U.S. Motors | 35.0 | 476.03 @ 1 |
 | motorsandcontrol.com | D2V2B | 501.78 | 1 | In Stock | | US Motors (Nidec) | 161.76 | 501.78 @ 1 |
 | National Supply Network | B466200 | 512.68 | 1 | In Stock | | US MOTORS | | 512.68 @ 1 |
 | Galco | D2V2B-USM | 615.15 | 1 | In Stock | | US Motors | 35.0 | 615.15 @ 1 |
| motionindustries.com | 02898404 | 857.11 | 1 | In Stock | | US Motors (Nidec) | | 857.11 @ 1 |
 | Zoro | G208588208 | 884.99 | 1 | In Stock | 10 | U.S. Motors | | 884.99 @ 1 |
