- mpnDJ10P1HM
- brandname: US Motors
- manufacturername: US Motors

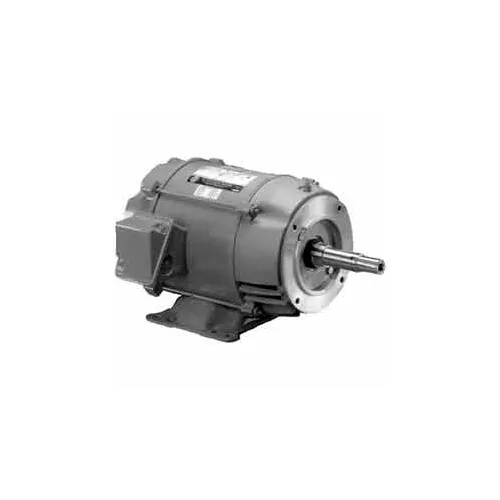

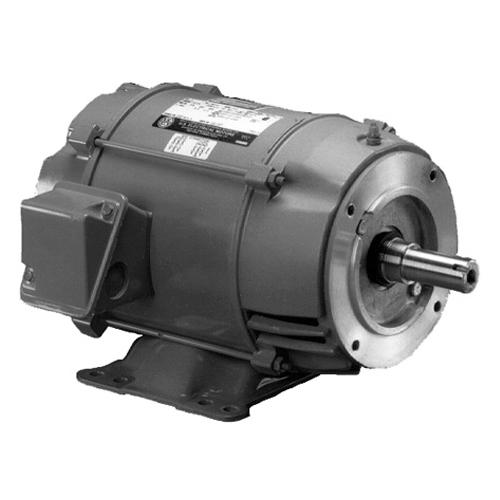

U.S. Motors US Motors Pump, 10 HP, 3-Phase, 3505 RPM Motor, DJ10P1HM
- Brand: U.S. Motors
- PartNumber: DJ10P1HM
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 28 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Efficiency | 90.2% |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 99.00 |
| Family Series | US Motors Motors |
| FL Amps | 28 |
| FL Efficiency | 90.2 |
| Frame | 213JM |
| Frequency | 60 Hz |
| Gross Weight | 90 lbs |
| Hertz | 60 |
| Horsepower | 10 hp |
| HP | 10 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,3PH,10HP,3600,200. |
| Item Number | DJ10P1HM |
| Kilowatts | 7.5 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | CU99 |
| Manufacturer Part Number | DJ10P1HM |
| Maximum Ambient Tempera. | 40? C |
| Model Number | CU99 |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | Foot Mount |
| NEMA Frame | 213JM |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Part Number | DJ10P1HM |
| Phase | 3 |
| Product Type | Pump, Three Phase |
| Rotation | Reversible |
| RPM | 3,505 RPM, 3505 |
| Service Factor | 1.15 |
| Ship Weight | 90 lbs. |
| Speed (RPM) | 3505 |
| Voltage | 200V |
| Voltage (AC) | 200 VAC |
| Volts | 200 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0391822 | 779.0 | 1 | In Stock | | U.S. Motors | 90.0 | 779.0 @ 1 |
 | Global Industrial | WBB465404 | 820.0 | 1 | In Stock | | US Motors | | 820.0 @ 1 |
 | emotorpro.com | DJ10P1HM | 892.16 | 1 | In Stock | | U.S. Motors | 90.0 | 892.16 @ 1 |
 | National Supply Network | B465404 | 911.99 | 1 | In Stock | | US MOTORS | | 911.99 @ 1 |
 | motorsandcontrol.com | DJ10P1HM | 940.43 | 1 | In Stock | | US Motors (Nidec) | 99.0 | 940.43 @ 1 |
 | Galco | DJ10P1HM-USM | 1152.89 | 1 | In Stock | | US Motors | 90.0 | 1152.89 @ 1 |
| motionindustries.com | 04600650 | 1397.71 | 1 | In Stock | | US Motors (Nidec) | | 1397.71 @ 1 |
