- mpnDJ32P2HM
- brandname: US Motors
- manufacturername: US Motors

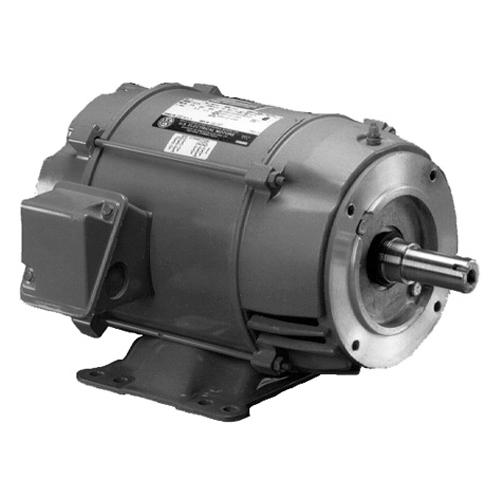

U.S. Motors US Motors Pump, 1.5 HP, 3-Phase, 1750 RPM Motor, DJ32P2HM
- Brand: U.S. Motors
- PartNumber: DJ32P2HM
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| AMP | 4.8 |
| Amps | 4.8 |
| Bearings | Ball |
| CE Approved | Yes |
| Coating | Painted |
| Color Finish | Grey |
| Condensing | No |
| Construction | Rolled Steel |
| CSA Certified | Yes |
| Diameter | 8-47/100 in |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Enclosure | Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 38.50 |
| Fan Speeds | 1 |
| FL Amps | 4.8 |
| FL Efficiency | 86.5 |
| Frame | 145JM |
| Full Load Amps | 4.8 |
| Green Certification or . | NEMA Premium(R) Rated |
| Gross Weight | 35 lbs |
| Height | 9-1/4 in |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1 1/2, 1-1/2 |
| Hz | 60 |
| Indoor Outdoor | Indoor/Outdoor |
| Insulation Class | F |
| Item | Close-Coupled Pump Motor |
| Length | 21-3/4 in |
| Length Less Shaft | 11 1/8 in |
| Manufacturer | US Motors (Nidec) |
| Manufacturer Model # | FF59 |
| Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure | Open Drip Proof (ODP) |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JM Threaded |
| Motor Sub Application | Close-Coupled Pump |
| Mounting | Foot Mount, Base/Face |
| Nameplate RPM | 1,800 |
| NEMA Design | B |
| Number of Speeds | 1 |
| Origin | Global |
| Overall Box Size | 21-3/4 in x 12-1/4 in x. |
| Overall Length | 15 3/8 in |
| Part Number | DJ32P2HM |
| Phase | 3, Three Phase |
| Power Source | Electric |
| Product Type | Pump, Motor, Three Phase |
| Rotation | Reversible |
| RPM | 1750 |
| RPM Range | 1,701-1,800, 1400 and A. |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 4 1/4 in, 4-1/4 in |
| Shaft Size | 7/8 in |
| Ship Weight | 35 lbs. |
| Speed (RPM) | 1750 |
| Temperature Range | -29 to 40 Deg C |
| Temperature Rating | 40 |
| Type | USMDJ32P2HM |
| UL Listed | No |
| Usable @ 200V | Yes |
| Voltage | 200V, 200V AC |
| Volts | 200, 200V |
| Weight | 35, 35 lb |
| Width | 12-1/4 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB465424 | 373.95 | 1 | In Stock | | US Motors | | 373.95 @ 1 |
 | Zoro | G900913025 | 373.99 | 1 | In Stock | | U.S. Motors | 35.0 | 373.99 @ 1 |
 | emotorpro.com | DJ32P2HM | 404.31 | 1 | In Stock | | U.S. Motors | 35.0 | 404.31 @ 1 |
 | National Supply Network | B465424 | 416.73 | 1 | In Stock | | US MOTORS | | 416.73 @ 1 |
 | motorsandcontrol.com | DJ32P2HM | 426.18 | 1 | In Stock | | US Motors (Nidec) | 38.5 | 426.18 @ 1 |
 | Galco | DJ32P2HM-USM | 522.48 | 1 | In Stock | | US Motors | 35.0 | 522.48 @ 1 |
| motionindustries.com | 04600644 | 633.42 | 1 | In Stock | | US Motors (Nidec) | | 633.42 @ 1 |
| ferguson.com | 9586583 | 790.32 | 1 | In Stock | | US Motors | | 790.32 @ 1 |
