- mpnEC06
- brandname: US Motors
- manufacturername: US Motors

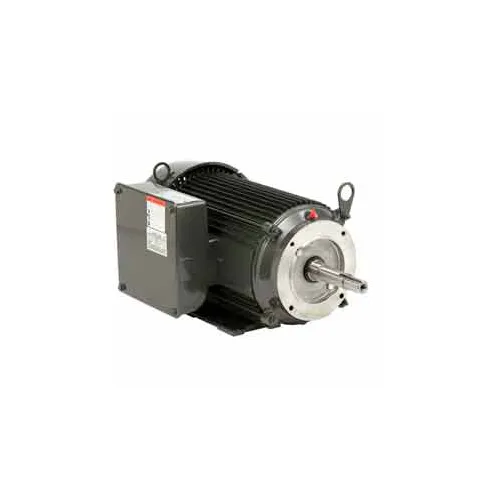

U.S. Motors US Motors Pump, 3/4 HP, 1-Phase, 3450 RPM Motor, EC06
- Brand: US Motors
- PartNumber: EC06
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Body Dia. | 6.5 in |
| Brand | U.s. Motors |
| CC Number | CC030A |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | TEFC, Totally Enclosed . |
| Estimated Weight | 28.60 |
| Family Series | US Motors Motors |
| Finish | Unfinished |
| FL Amps | 10.0/5.2-5.0 |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 10.8/5.7-5.4 |
| Full Load Current | 10 A |
| Gross Weight | 30.2 lbs |
| Hertz | 50, 60 |
| Horsepower | 3/4 hp |
| HP | 3/4, 0.75 |
| Hz | 60/50 |
| Ins. Class | B |
| International Shipping | No |
| Item | Jet Pump Motor |
| Item Number | EC06 |
| Kilowatts | 0.6 kW |
| Length Less Shaft | 10 5/8 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Part Number | EC06 |
| Max. Ambient Temp. | 40 Degrees C, 40 Degre. |
| Model Number | C063HMK5039014J |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | Auto |
| Mounting | Footless |
| Mounting Type | C-Face |
| Mpn | EC06 |
| Nameplate RPM | 3,600 |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 79.4 % |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 12 5/8 in |
| Overload Protection | Automatic |
| Part Number | EC06 |
| Phase | 1, Single |
| Product Type | General Purpose |
| RPM | 3,450 RPM |
| RPM Range | 3,001-3,600 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 in |
| SKU | ZO-G3314318 |
| Speed (RPM) | 3450 |
| Standards | CSA Certified, UL Recog. |
| SubCategory | Motors/Ac Motors |
| Type | Commercial Pump |
| UPC | 786382053512 |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 115/208-230V AC, 110-12. |
| Voltage (AC) | 110 VAC, 115 VAC, 208-2. |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Weight | 29 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Grainger | 55MM68 | 233.91 | 1 | In Stock | | U.S. MOTORS | 29.0 | 233.91 @ 1 |
 | Zoro | G3314318 | 236.99 | 1 | 1 | | U.S. Motors | 30.0 | 236.99 @ 1 |
 | simsupply.com | ZO-G3314318 | 289.05 | 1 | In Stock | | U.s. Motors | | 289.05 @ 1 |
 | bscsource.com | EC06 | 372.29 | 1 | In Stock | | US Motors | | 372.29 @ 1 |
 | Global Industrial | WBB465428 | 393.95 | 1 | In Stock | 17 | US Motors | | 393.95 @ 1 |
 | Guardian | 53655577 | 399.59 | 1 | In Stock | | US Motors | | 399.59 @ 1 |
 | Galco | EC06-USM | 431.28 | 1 | In Stock | | US Motors | 30.2 | 431.28 @ 1 |
 | motorsandcontrol.com | EC06 | 434.21 | 1 | In Stock | | US Motors (Nidec) | 28.6 | 434.21 @ 1 |
 | National Supply Network | B465428 | 443.34 | 1 | In Stock | | US MOTORS | | 443.34 @ 1 |
| motionindustries.com | 02898660 | 653.83 | 1 | In Stock | | US Motors (Nidec) | | 653.83 @ 1 |
