- mpnU15P2DC
- brandname: US Motors
- manufacturername: US Motors

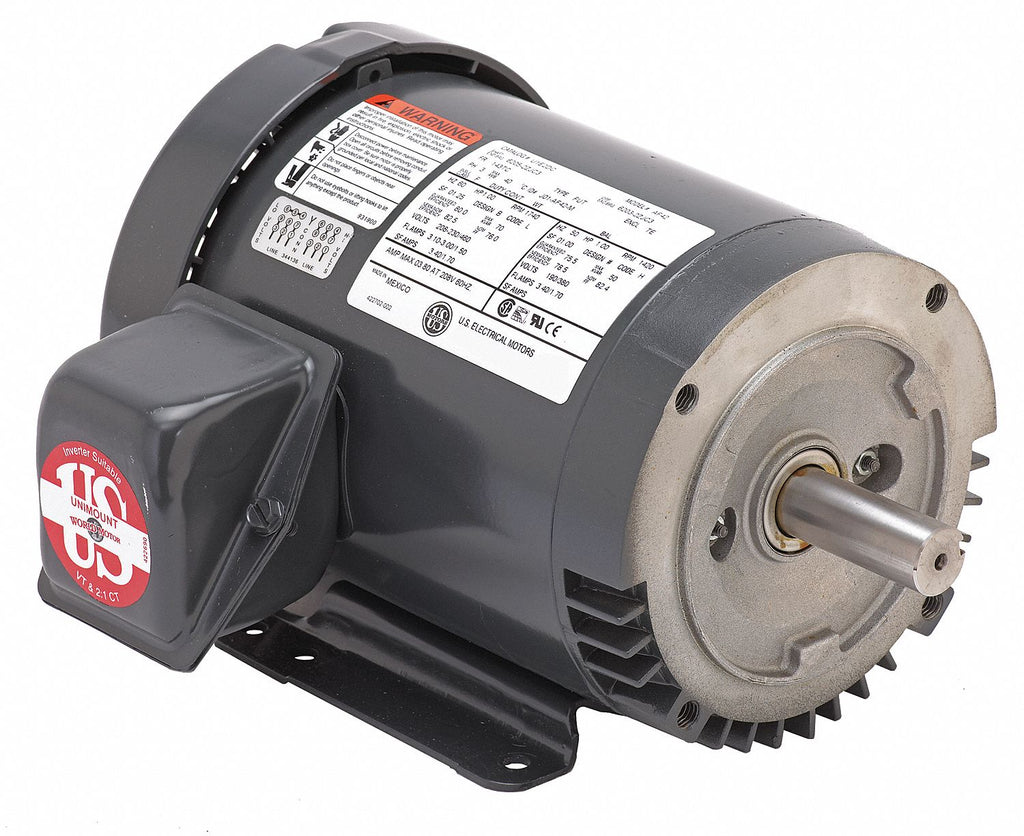

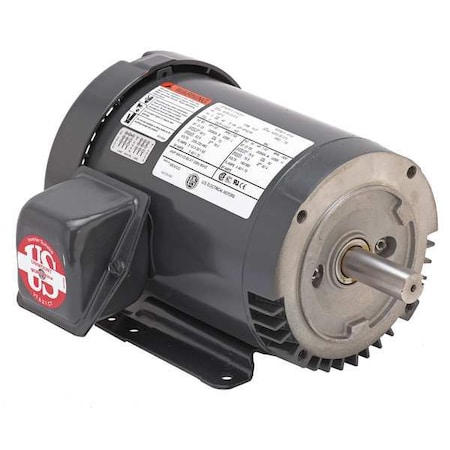

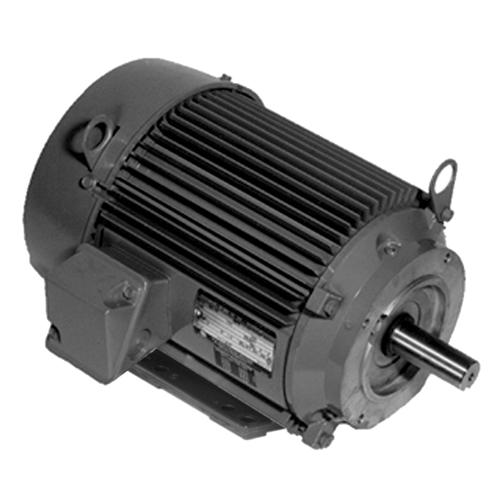

US Electric Motors-Nidec, U15P2DC, 15HP, 1775RPM, 3PH, 230V;460V;190V;380V, 254TC Frame, General Purpose Motor Motor.
- PartNumber: U15P2DC
- Manufacturer: US Motors-Nidec
- Label: US Motors-Nidec
Attributes
| Key | Value |
|---|
| Amps | 40-37/18.4 |
| Bearings | Ball |
| Composition | Aluminum |
| Construction | Aluminum |
| Drive End Flange Type | C-Face |
| Efficiency | 92.4% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 198.00 |
| Family Series | US Motors Motors |
| FL Amps | 40-37/18.4 |
| FL Efficiency | 92.4 |
| Frame | 254TC |
| Frequency | 60 Hz |
| Gross Weight | 180 lbs |
| Hertz | 50, 60 |
| Horsepower | 15 hp |
| HP | 15 |
| Hz | 50/60 |
| Insulation Class | F |
| Item | General Purpose Motor |
| Item Number | U15P2DC |
| Kilowatts | 11.2 kW |
| Length Less Shaft | 19 7/8 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | DZ07 |
| Manufacturer Part Number | U15P2DC |
| Manufacturers Warranty . | 2 yr |
| Maximum Ambient Tempera. | 40? C |
| Model Number | DZ07 |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face Footed |
| Nameplate RPM | 1,800 |
| NEMA Frame | 254TC |
| Net Weight | 11.25 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 24 in |
| Part Number | U15P2DC |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1775, 1,775 RPM |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8 in |
| Shaft Length | 4 in |
| Ship Weight | 180 lbs. |
| Speed (RPM) | 1775 |
| Standards | CE, CSA, UL |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | motorsandcontrol.com | U15P2DC | 1395.76 | 1 | 1 | | US Motors (Nidec) | 198.0 | 1395.76 @ 1 |
 | emotorpro.com | U15P2DC | 1483.2 | 1 | In Stock | | U.S. Motors | 180.0 | 1483.2 @ 1 |
 | Global Industrial | WBB467101 | 1518.0 | 1 | In Stock | | US Motors | | 1518.0 @ 1 |
 | Zoro | G4558242 | 1591.99 | 1 | In Stock | | U.S. Motors | 199.0 | 1591.99 @ 1 |
 | National Supply Network | B467101 | 1612.69 | 1 | In Stock | | US MOTORS | | 1612.69 @ 1 |
 | Galco | U15P2DC-USM | 1639.11 | 1 | 1 | | US Motors | 180.0 | 1639.11 @ 1 |
 | sustainablesupply.com | C2828710 | 2147.05 | 1 | In Stock | | US Motors | 199.0 | 2147.05 @ 1 |
| motionindustries.com | 04392893 | 2326.51 | 1 | In Stock | | US Motors (Nidec) | | 2326.51 @ 1 |
