- mpnU32P1D
- brandname: US Motors
- manufacturername: US Motors

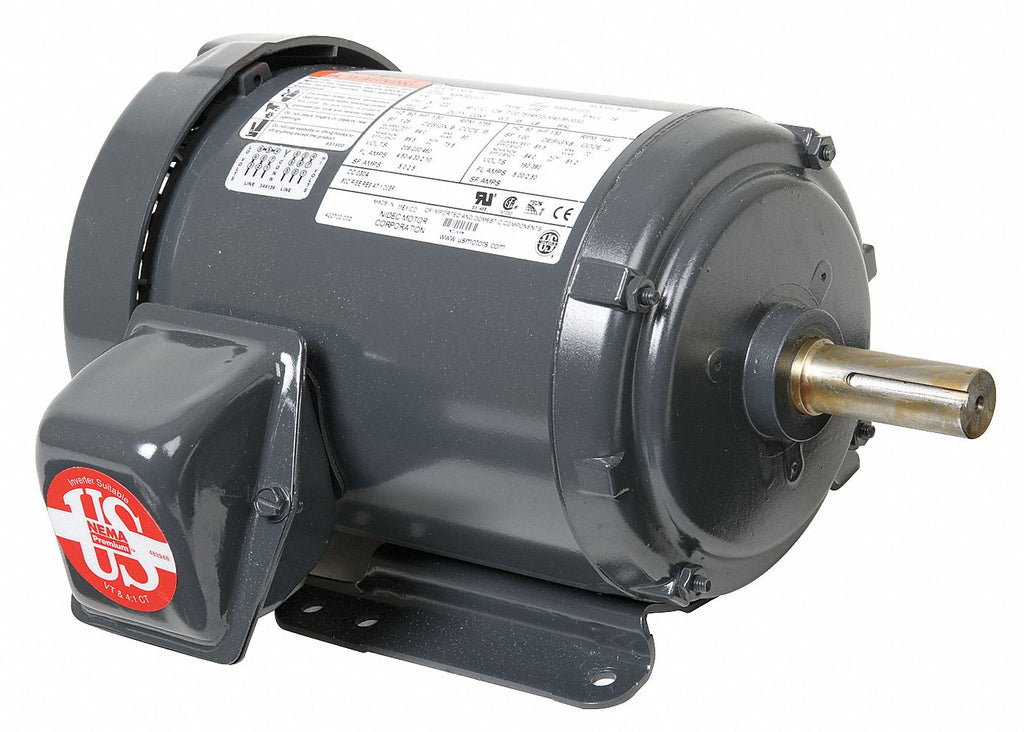

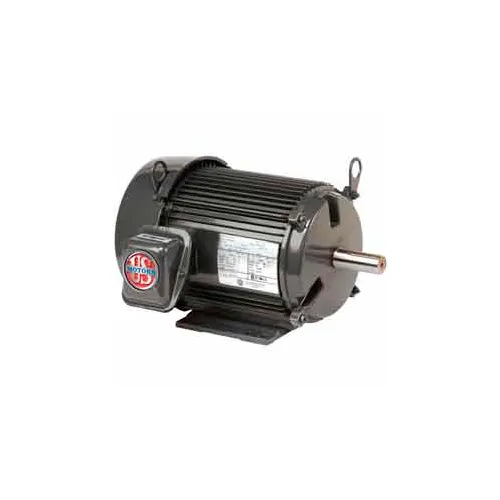

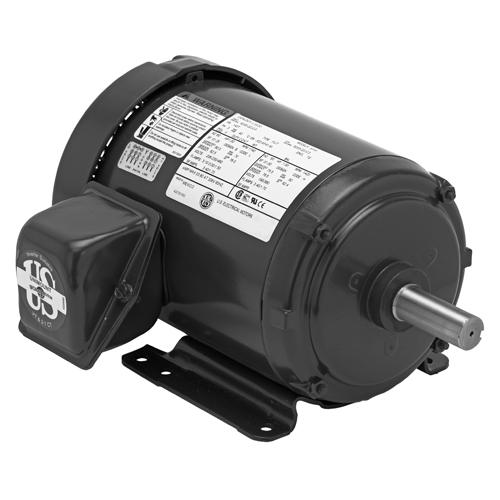

US Motors Unimount TEFC U32P1D, 3-Phase, 1.5 HP, Unimount, 3505 RPM Motor, TEFC
- Brand: US Motors
- PartNumber: U32P1D
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: U.S. Motors / Nidec Motor Corporation
- Label: U.S. Motors / Nidec Motor Corporation
Attributes
| Key | Value |
|---|
| Amps | 4.2-3.9/1.9 |
| Bearings | Ball |
| Brand | U.s. Motors |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Current Stock | 3 |
| Drive End Flange Type | Standard |
| Efficiency | 84% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 33.00 |
| Family Series | US Motors Motors |
| FL Amps | 4.2-3.9/1.9 |
| FL Efficiency | 84 |
| Footnotes | 5,10 |
| Frame | 143T |
| Frequency | 60 Hz |
| Gross Weight | 30 lbs |
| Hertz | 50, 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1 1/2, 1-1/2 |
| Hz | 50/60 |
| Insulation Class | F |
| International Shipping | No |
| Item | General Purpose Motor |
| Item Number | U32P1D |
| Kilowatts | 1.1 kW |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 10 9/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FD68 |
| Manufacturer Part Number | U32P1D |
| Manufacturers Warranty . | 2 yr |
| Maximum Ambient Tempera. | 40? C |
| Model Number | FD68 |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| Mpn | U32P1D |
| Nameplate RPM | 3,600 |
| NEMA Frame | 143T |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 13 in |
| Part Number | U32P1D |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 3,505 RPM, 3505 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Ship Weight | 30 lbs. |
| SKU | ZO-G4541643 |
| Speed (RPM) | 3505 |
| Standards | CE, CSA, UL |
| SubCategory | Motors/Ac Motors |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | U32P1D | 384.6 | 1 | In Stock | | U.S. Motors | 30.0 | 384.6 @ 1 |
 | Global Industrial | WBB467065 | 399.95 | 1 | In Stock | | US Motors | | 399.95 @ 1 |
 | Zoro | G4541643 | 402.99 | 1 | 14 | | U.S. Motors | 33.75 | 402.99 @ 1 |
 | motorsandcontrol.com | U32P1D | 405.41 | 1 | In Stock | | US Motors (Nidec) | 33.0 | 405.41 @ 1 |
 | Galco | U32P1D-USM | 405.42 | 1 | In Stock | | US Motors | 30.0 | 405.42 @ 1 |
 | National Supply Network | B467065 | 459.1 | 1 | In Stock | | US MOTORS | | 459.1 @ 1 |
 | simsupply.com | ZO-G4541643 | 480.54 | 1 | 3 | | U.s. Motors | | 480.54 @ 1 |
 | sustainablesupply.com | C2828766 | 622.97 | 1 | In Stock | | US Motors | 33.75 | 622.97 @ 1 |
| motionindustries.com | 04487543 | 661.69 | 1 | In Stock | | US Motors (Nidec) | | 661.69 @ 1 |
