- mpnU32V2BC
- brandname: US Motors
- manufacturername: US Motors

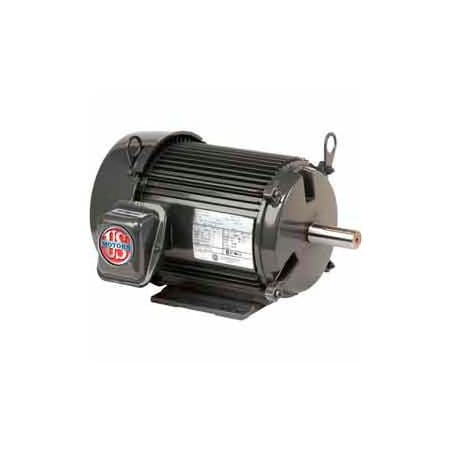

U.S. Motors US Motors Inverter Duty, 1.5 HP, 3-Phase, 1745 RPM Motor, U32V2BC
- Brand: US Motors
- PartNumber: U32V2BC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| AMP | 2.1, 4.2 |
| CE Approved | No |
| Coating | Painted |
| Color Finish | Grey |
| Composition | Rolled Steel |
| Condensing | No |
| Construction | Rolled Steel |
| CSA Certified | Yes |
| Diameter | 8-47/100 in |
| Drive End Flange Type | C-Face |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 46.26 |
| Family Series | US Motors Motors |
| Fan Speeds | 1 |
| FL Amps | 4.2/2.1 |
| FL Efficiency | 85.5 |
| Frame | 145TC, 145 |
| Frequency | 60 Hz |
| Gross Weight | 42 lbs |
| Height | 9-1/8 in |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1-1/2 |
| Hz | 60 |
| Indoor Outdoor | Indoor/Outdoor |
| Installation Type | Flanged |
| Inverter Duty | Yes |
| Item Number | U32V2BC |
| Kilowatts | 1.1 kW |
| Length | 15-1/2 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | HA37 |
| Manufacturer Part Number | U32V2BC |
| Material | Steel |
| Model Number | HA37 |
| Motor Enclosure | Totally Enclosed |
| Mounting | Foot Mount |
| Mounting Type | Foot Mount |
| NEMA Frame | 145TC |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC, 480 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Origin | Global |
| Overall Box Size | 15-1/2 in x 12-1/2 in x. |
| Package Quantity | 1 |
| Part Number | U32V2BC |
| Phase | 3, Three Phase |
| Power Source | Electric |
| Product Type | Motor, General Purpose,. |
| Rotation | Reversible |
| RPM | 1745, 1755, 1,755 RPM |
| RPM Range | 1400 and Above |
| Shaft Length | 2-3/25 in |
| Shaft Size | 7/8 in |
| Ship Weight | 43 lbs. |
| Speed (RPM) | 1745 |
| Temperature Range | -29 to 40 Deg C |
| Temperature Rating | 40 |
| Type | USMU32V2BC |
| UL Listed | No |
| Voltage | 230V, 460V |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460, 230/460V |
| Weight | 42.05 |
| Width | 12-1/2 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | U32V2BC | 433.3 | 1 | In Stock | | U.S. Motors | 43.0 | 433.3 @ 1 |
 | Global Industrial | WBB466134 | 449.95 | 1 | In Stock | | US Motors | | 449.95 @ 1 |
 | motorsandcontrol.com | U32V2BC | 456.22 | 1 | In Stock | | US Motors (Nidec) | 46.26 | 456.22 @ 1 |
 | Galco | U32V2BC-USM | 456.23 | 1 | In Stock | | US Motors | 42.0 | 456.23 @ 1 |
 | National Supply Network | B466134 | 467.55 | 1 | In Stock | | US MOTORS | | 467.55 @ 1 |
 | Guardian | 04090171 | 655.6 | 1 | In Stock | | US Motors | | 655.6 @ 1 |
 | Zoro | G008588194 | 666.99 | 1 | In Stock | 11 | U.S. Motors | | 666.99 @ 1 |
 | bscsource.com | U32V2BC | 937.69 | 1 | In Stock | | US Motors | | 937.69 @ 1 |
| motionindustries.com | 02899329 | 965.87 | 1 | In Stock | | US Motors (Nidec) | | 965.87 @ 1 |
| ferguson.com | 9584240 | 1011.8 | 1 | In Stock | | US Motors | | 1011.8 @ 1 |
