Walter Tools SNMG120404-FP5 WPP20S

B00RXXTCP6

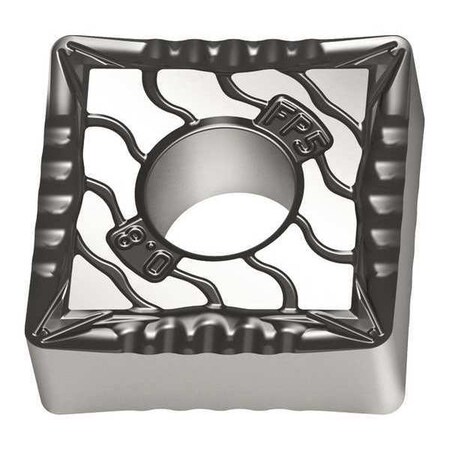

Walter Tools SNMG120404-FP5 WPP20S Carbide Tiger-Tec Negative Indexable Turning Insert, 0.016" Corner Radius, 0.500" IC, 0.187" Thick, 0.004" - 0.071" Depth of Cut (Pack of 10)

Walter Tools SNMG120404-FP5 WPP20S Carbide Tiger-Tec Negative Indexable Turning Insert, 0.016" Corner Radius, 0.500" IC, 0.187" Thick, 0.004" - 0.071" Depth of Cut (Pack of 10)zoom

Attributes

Key Value
ANSI CodeSNMG431-FP5
ANSI NumberSNMG432
ANSI Project - Inscribe.4
BrandWALTER VALENITE
Cast Iron (K) Compatibi.No
Catalog PageN/A
Chip-BreakerYes
Chip-Breaker CodeFP5
Clearance Angle0 Degrees, 0 ?
CoatingCVD
Coating ProcessCVD
Corner Radius1/64 in
Country of OriginGermany
Country of Origin (subj.Germany
Cutting ApplicationTurning
Cutting DirectionNeutral
Cutting Edge Length12.70mm
Depth of Cut0.10 to 1.80mm
Finish - MachiningTiCN+Al2O3+TiCN
For Use WithToolholders, Boring Bars
GradeWPP20S
Hardened (H) Compatibil.No
Included Angle90 ?, 90 Degrees
Inscribed Circle1/2 in
Insert ApplicationMedium
Insert CodeSNMG431
Insert Holding TypeStraight Hole
Insert MaterialCarbide
Insert ShapeSquare
Insert Size431
Insert StyleSNMG
Insert Thickness0.1880"
ISO NumberSNMG120404-FP5
ItemSquare Turning Insert
Item?53WG16
Manufacturer GradeWPP20S
MaterialCarbide
Material - MachiningCarbide
Measurement SystemFractional Inch
Mfr. Model?SNMG120404-FP5 WPP20S
Mounting Hole Dia.0.203"
Mounting StyleClamp
No. of Edges4
Non Ferrous (N) Compati.No
Nose Radius0.0160"
Number of Cutting Edges4
Primary Material Applic.Steel
Primary Material Applic.P
RakeNegative
Relief Angle0 Degrees
ShapeSquare
Stainless (M) Compatibi.Yes
Steel (P) CompatibilityNo
Super Alloy (S) Compati.Yes
Thickness3, 3?16 in
UNSPSC23171618
Workpiece CompatibilityCast Iron (K), Steel (P)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG793640014.01010Walter Valenite0.214.0 @ 10
Grainger53WG1616.2110WALTER VALENITE16.2 @ 10
