- mpn45362
- brandname: CHICAGO-LATROBE
- manufacturername: CHICAGO-LATROBE

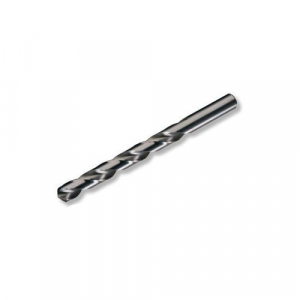

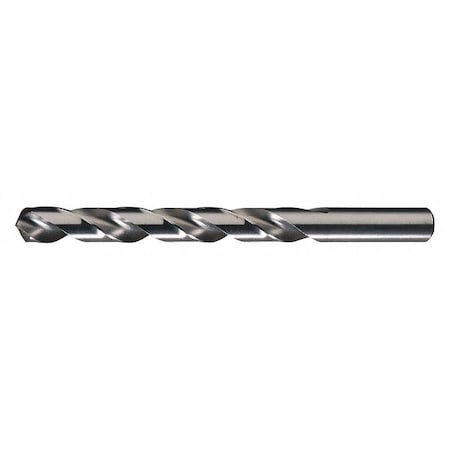

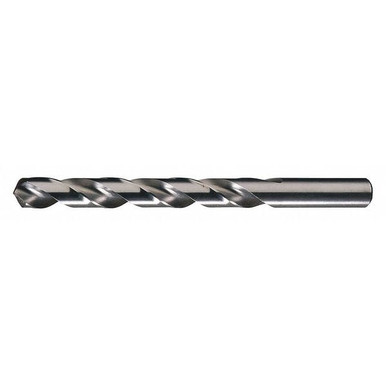

Chicago-Latrobe 45362 150D General Purpose Jobber Length Drill Bit, 14 mm Drill - Metric, 0.5512 in Drill - Decimal Inch, 118 deg Point, HSS, Bright (1 Each)
- Brand: Chicago Latrobe
- PartNumber: 45362
- PackageQuantity: 1
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Non-Ferrous Metals |
| Application | For Non-Ferrous Materia. |
| Brand | Chicago-Latrobe |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Current Stock | 16 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal | 0.5512" |
| Decimal Equivalent | 0.5512 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 14.00 mm |
| Drill Diameter (Metric) | 14.00mm |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1656mm |
| Drill Size - Decimal In. | 0.5512 in |
| Drill Size - Metric | 14 mm |
| Finish | Bright, Bright (Uncoate. |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 108.00 mm, 4.2520", 108. |
| Flute Length (Metric) | 108.00mm |
| Flute Type | Right Spiral, Spiral |
| Grade | General Purpose |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| List Number | 150D |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | General Purpose |
| Maximum Drilling Depth | 2 13/64 in |
| Measurement System | Metric |
| Mpn | 45362 |
| Number of Flutes | 2 |
| Overall Length | 6.2992", 160 mm, 160.00. |
| Overall Length (Metric) | 160.00mm |
| Point Angle | 118 deg |
| Point Type | Conventional Point, Rad. |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | N |
| Series | 150D |
| Shank Dia. | 14 mm |
| Shank Length | 52 mm |
| Shank Size | 14 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G7369419 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 150D |
| SubCategory | Machining |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | 14mm |
| Type | General Purpose |
| UPC | 662355453629 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6128783 | 17.76 | 2 | In Stock | | Chicago-Latrobe | | 17.76 @ 2 |
 | usmegastore.com | 45362 | 21.58 | 1 | In Stock | | Chicago-Latrobe | | 21.58 @ 1 |
 | sustainablesupply.com | C2764865 | 23.97 | 1 | In Stock | | Chicago-Latrobe | 0.35 | 23.97 @ 1 |
 | Zoro | G7369419 | 28.1 | 1 | 18 | | Chicago-Latrobe | 0.35 | 28.1 @ 1 |
 | Megadepot | 45362 | 28.93 | 1 | In Stock | | Chicago-Latrobe | | 28.93 @ 1 |
 | heavydutydepot.com | 45362 | 28.93 | 4 | In Stock | | Chicago-Latrobe | | 28.93 @ 4 |
 | simsupply.com | ZO-G7369419 | 41.79 | 1 | 16 | | Chicago-Latrobe | | 41.79 @ 1 |
