- mpnC20735
- brandname: CLE-LINE
- manufacturername: CLE-LINE

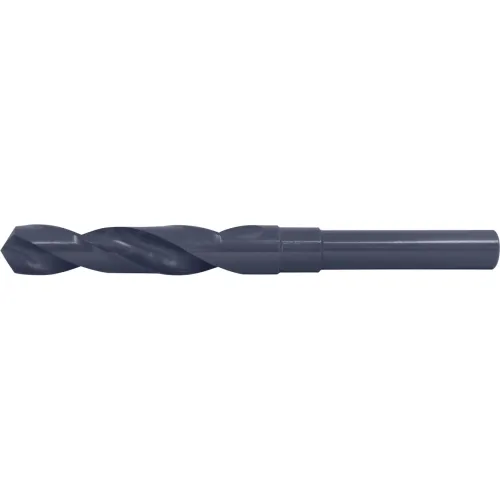

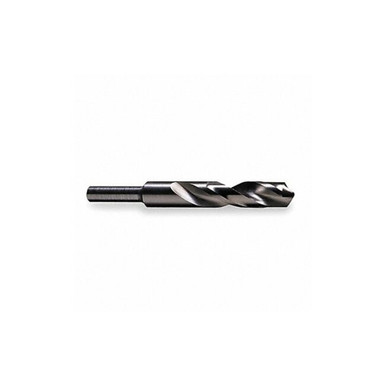

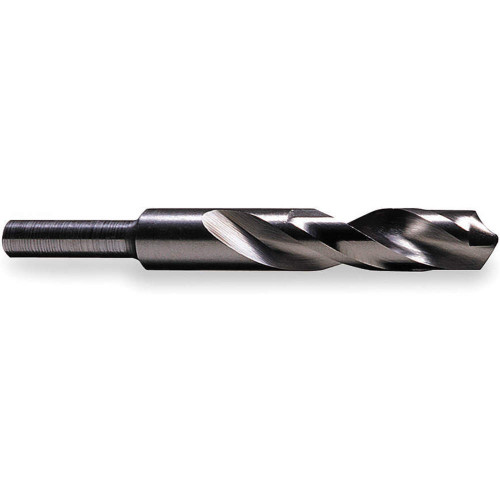

Cle-Line C20735 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 35/64" Drill Diameter
- Brand: Cle-line
- PartNumber: C20735
- Model: C20735
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Cast Iron and Steel |
| Application | For Alloy And Carbon St. |
| Brand | Cle-Line |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | United States |
| Current Stock | 56 |
| Cutting Depth | 3-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.5469 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.546875, 0.5469" |
| Diameter (Fraction) | 35/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 35/64 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size - Decimal In. | 0.5469 in |
| Drill Size - Fraction | 35/64 in |
| Drill Size System | Fractional |
| Drill Style | Silver & Deming Drill |
| Finish | Steam Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 3-1/. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Left/Right Hand | Right |
| List Number | 1813 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | General Purpose |
| Maximum Drilling Depth | 2 1/2 in |
| Measurement System | Fractional Inch |
| Mpn | C20735 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Conventional Point, Rad. |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1813 |
| Shank Configuration | Reduced |
| Shank Dia. | 1/2 in |
| Shank Length | 2 1/4 in, 2.2500" |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.5029" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 0.5, 1/2 in |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Round, Reduced/Round |
| Shank Type - Machining | Straight |
| Silver & Deming Drill | Yes |
| SKU | ZO-G0397731, C20735 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 1813 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 35/64" |
| UPC | 697334207351, 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0397731 | 13.19 | 1 | 71 | | Cle-Line | 0.3 | 13.19 @ 1 |
 | Global Industrial | WBB2543882 | 13.75 | 1 | In Stock | | Cle-Line | | 13.75 @ 1 |
 | usmegastore.com | C20735 | 13.95 | 1 | In Stock | | Cle-Line | | 13.95 @ 1 |
 | Megadepot | C20735 | 13.95 | 1 | In Stock | | Cle-Line | | 13.95 @ 1 |
 | heavydutydepot.com | C20735 | 13.95 | 8 | In Stock | | Cle-Line | | 13.95 @ 8 |
 | MRO Supply | 6123989 | 15.8 | 4 | In Stock | | Cle-Line | | 15.8 @ 4 |
 | Raptor Supplies | AB9CNR | 22.0229685 | 1 | In Stock | | CLE-LINE | | 22.0229685 @ 1 |
 | sustainablesupply.com | C1465064 | 22.71 | 1 | In Stock | | Cle-Line | 0.3 | 22.71 @ 1 |
 | imsbolt.com | C20735 | 26.05 | 1 | In Stock | | CLE-LINE | | 26.05 @ 1 |
 | simsupply.com | ZO-G0397731 | 26.24 | 1 | In Stock | | Cle-Line | | 26.24 @ 1 |
