Cle-line C21188

mpnC21188
brandname: Cle-Line
manufacturername: Cle-Line

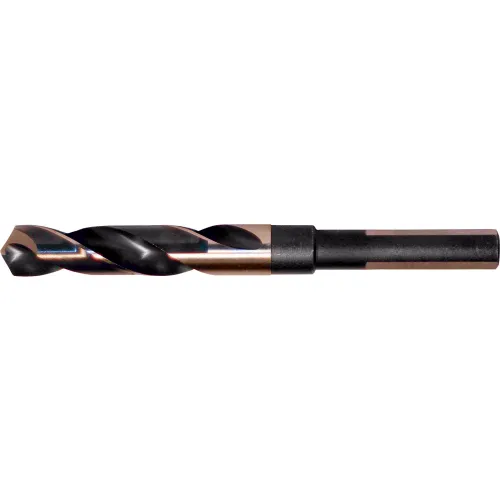

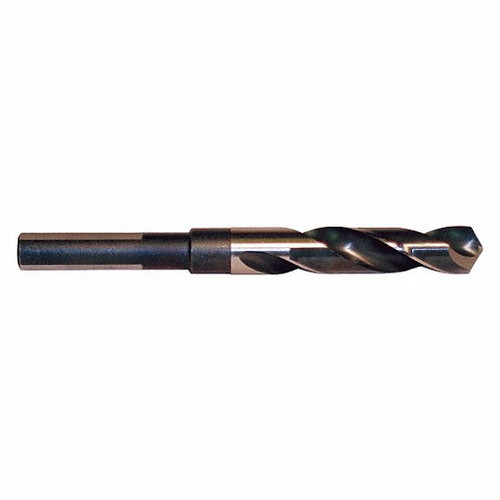

Cle-Line C21188 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Split Point, 24.00 mm Drill Diameter

Cle-Line C21188 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Split Point, 24.00 mm Drill Diameter

zoom

Brand: Cle-line
PartNumber: C21188
Model: C21188
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Cast Iron and Steel
Application	For Alloy And Carbon St.
Coolant Fed	Non-Coolant Through
Cutting Depth	79.38 mm
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.9449
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.9449"
Diameter (Metric)	24.00mm
Drill Bit Dimension Type	Metric
Drill Bit Finish	Black/Gold
Drill Bit Point Angle	118 Degrees
Drill Bit Point Type	Split Point
Drill Bit Size	24.00 mm
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Size - Decimal In.	0.9449 in
Drill Size - Metric	24 mm
Drill Size System	Metric
Drill Style	Silver & Deming Drill
Finish	Black/Steam Oxide
Finish - Machining	Black Oxide
Flute Length	3 1/8 in, 3.1250", 79.3.
Flute Length (Metric)	79.38mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	28 Degrees
Item	Reduced Shank Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	3 3/4 in
Measurement System	Metric
Number of Flutes	2
Overall Length	152.40 mm, 152.4 mm, 6..
Overall Length (Metric)	152.40mm
Point Angle	118 deg, 118?
Point Style	Split
Point Type	Split
Series	1877M
Shank Configuration	Reduced w/ 3 Flats
Shank Dia.	12.70 mm
Shank End Feature	3 Flats
Shank End Feature Length	0.8750"
Shank Length	2.2500", 57.15 mm
Shank Length (Metric)	57.15mm
Shank Neck Diameter	0.9009"
Shank Neck Length	0.5000"
Shank Size	0.5000", 12.7 mm
Shank Size (Metric)	12.70mm
Shank Type	Flat/Reduced
SKU	C21188
Standards	Not Rated
Style	1877M
Surface Condition	Black & Gold
Tool Size	24mm, 24.00mm
UPC	6.97E+11
